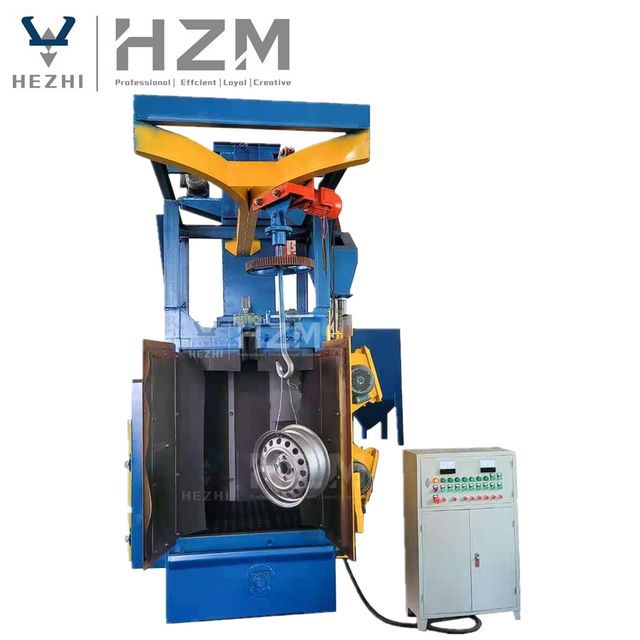

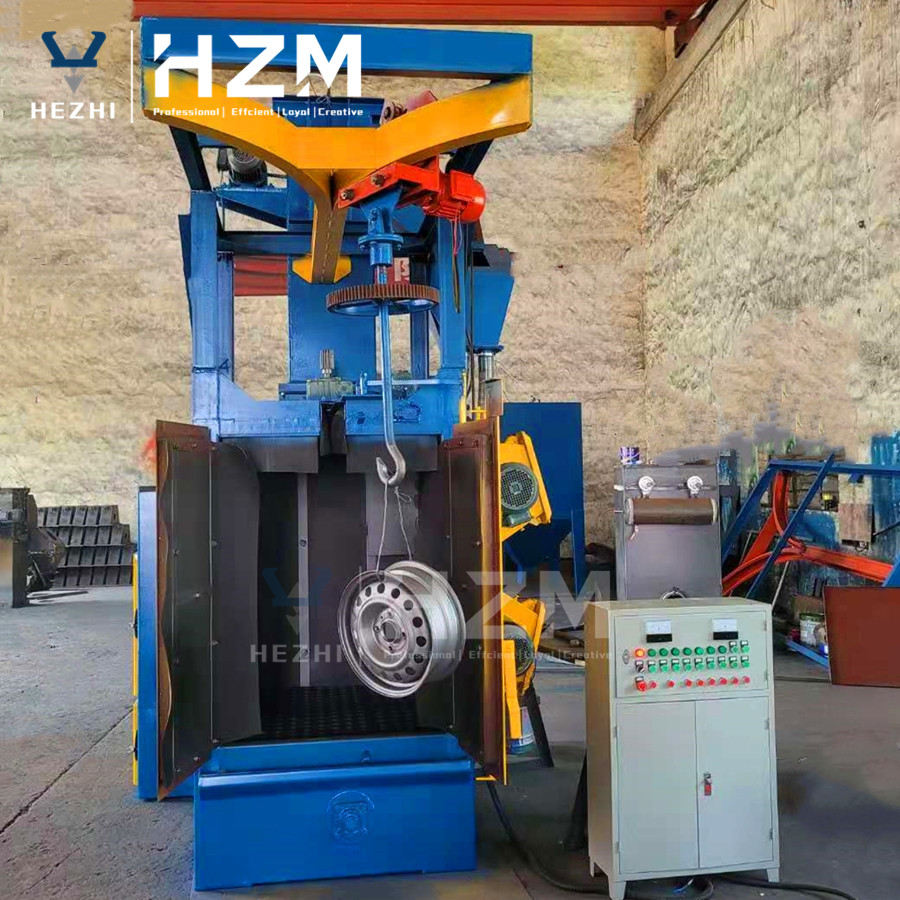

Q376A Compact rotating suspended double hook wheel shot blasting machine for aluminum rim cleaning

Supplier: Qingdao Hezhi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Zhang
Price: $3400.00 / 1 - 2 sets
$2800.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Main selling points:	High quality, ex-factory price, perfect service system	Warranty:	1 year
Mechanical test report:	if	Place of origin:	Shandong Province, China
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, suitable for rotating hook shot blasting machine	Applicable industries:	Building material stores, manufacturing plants, machine repair shops, farms, construction projects, energy and mining, foundry industries, automotive parts cleaning
After-sales service provided:	On-site installation, commissioning and training	Dimensions (lengthwidthheight):	4.42.93.5m/customized
Cleaning type:	Wheel shot blasting/shot blasting by abrator	Shot blasting machine:	1-2 rounds or customized
Packaging details:	In container for rotating hook shot blasting machine	use:	Metal cleaning/paint cleaning/rust removal
Health status:	new	Demolition room:	10mm shell & 10mm manganese alloy inner tank
Hanger type:	Single hanger/double hanger	Roughness:	25-130 micron
strength:	19kW/customized	Core component warranty:	1 year
fuel:	electrical	Material:	metal/coil
Marketing type:	2020 new products	Cleaning process:	Steel shot/sand/shredded/stainless steel
brand:	harmonious	Showroom location:	not any
Package preview:		port:	Qingdao/Ningbo/Tianjin/Shenzhen/Shanghai
Surface finish grade:	SA2.5 to SA3.0	Type of machine:	Abrasive machine
Supply capacity:	25 sets per month	Video outbound inspection:	if
Core components:	PLC, engine, gearbox, motor, gear, pump	Weight (kg):	800kg

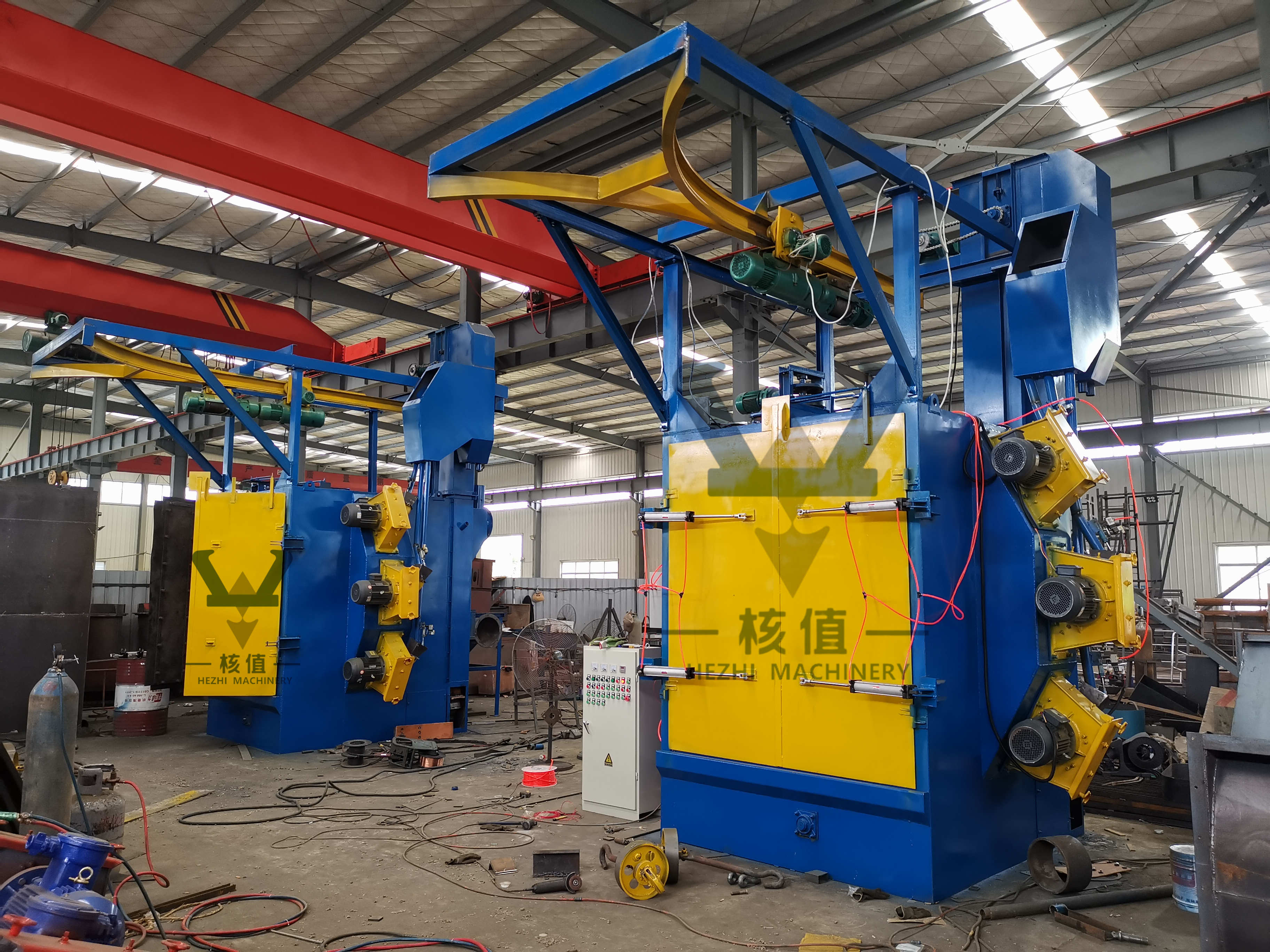

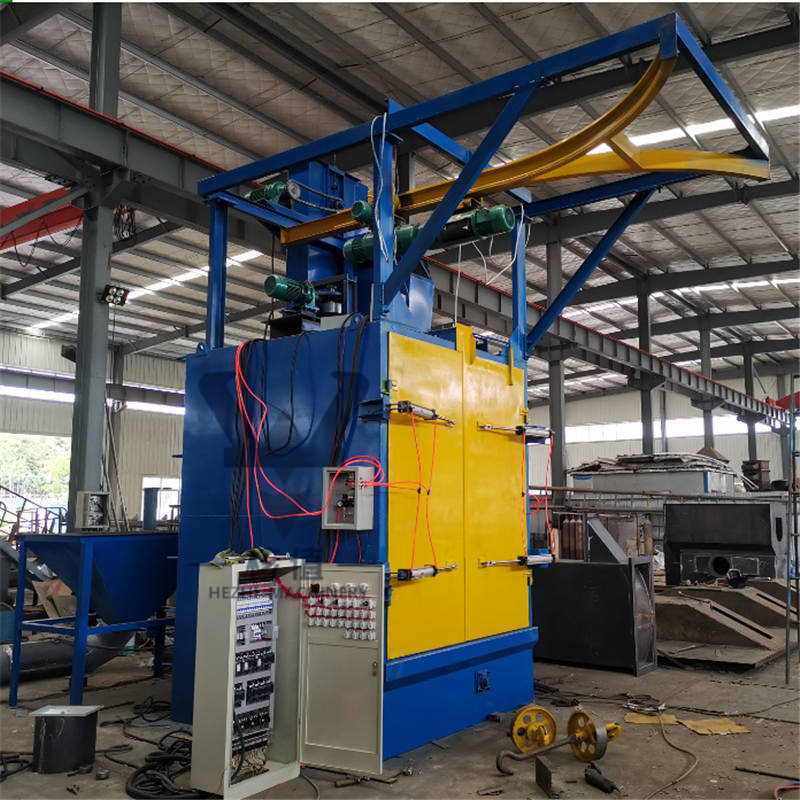

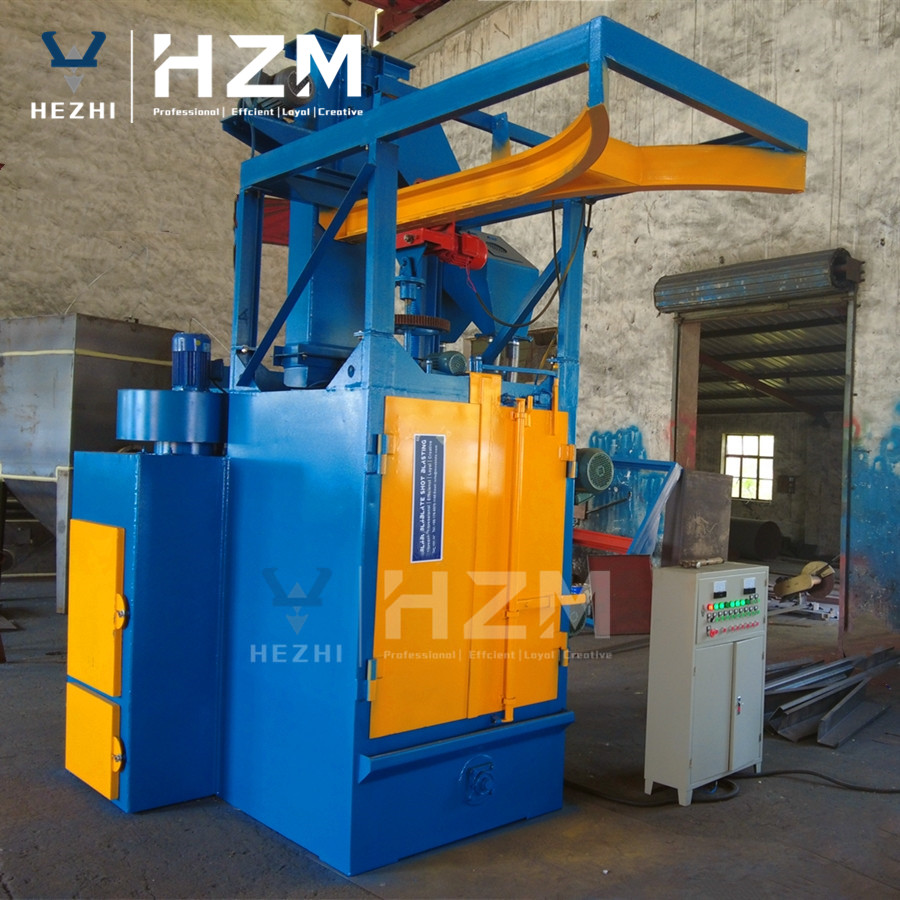

Single hanger shot blasting machine Double hanger shot blasting machine

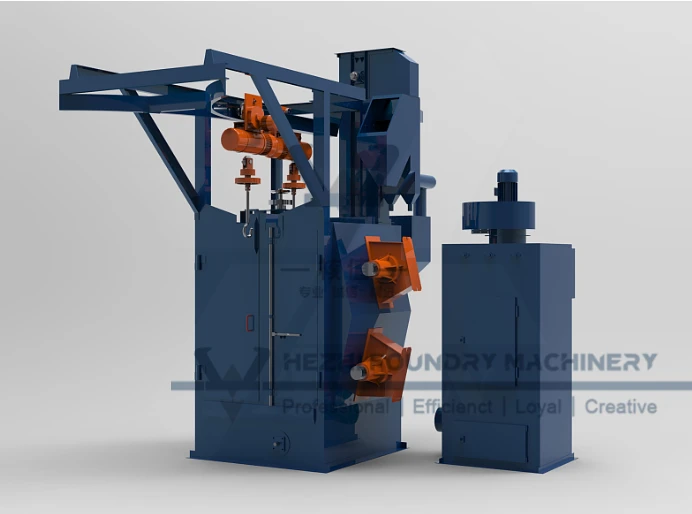

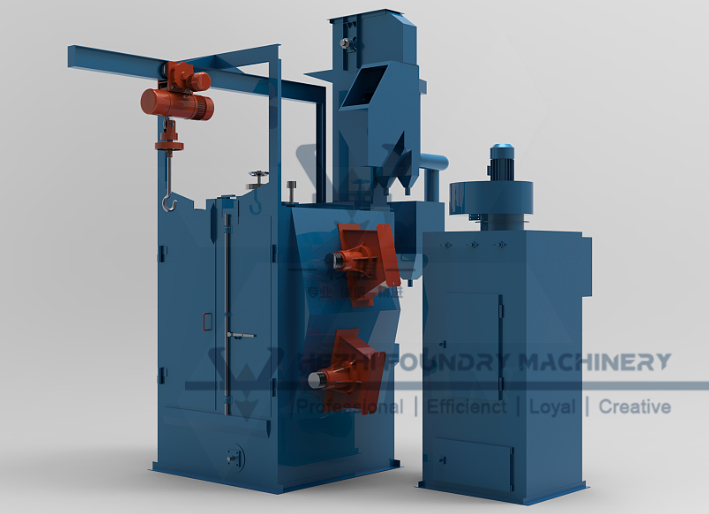

The rotary double hook shot blasting machine is a shot blasting equipment for castings, forgings and small metal processing parts. Larger workpieces can be hung uniquely on hooks. Smaller workpieces will be placed on special tools and then hung on hangers. After loading the workpiece, the hook will be driven into the shot blasting chamber along the T or Y elevated track.

The workpiece rotates in the shot blasting chamber and is impacted by steel shots from the shot blaster installed on one side of the chamber wall. The other side of the chamber wall is called the hot zone because it is subject to intense abrasive flow.

The hot zone is protected by a manganese alloy lining. After 3-5 minutes of sandblasting cleaning, the workpiece will go out along the T or Y elevated track.

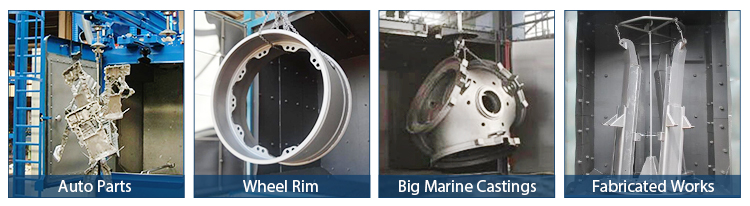

Spinner double hook shot blasting machine is suitable for surface cleaning or strengthening treatment of small castings and forgings in foundry, construction, chemical industry, motor, machine tool and other industries. It is specially used for cleaning small sticky sand, sand core and oxide scale of various types and small batches of castings, forgings and steel structural parts. It is also suitable for surface cleaning and strengthening of heat-treated parts, especially for cleaning tiny, thin-walled parts that are not suitable for impact.

Model	Q376A	Q376	Q3710	Q3720	Q3730	Q3750
artifact (centimeter)	Φ30x100	φ70×110	φ90×160	φ140x230	φ160x220	φ180x250
maximum weight	0.5 tons	0.5 tons	1 ton	2 tons	3 tons	5 tons
Number of wheels	2	2	2	3	3	4
Explosive ability	2x160kg/s	2x160kg/s	2×250kg/s	3×250kg/s	3x250kg/s	4×250kg/s
Air volume cubic meters/minute	2000	5000	9000	15000	15000	18000
strength	14kW	19kW	36.5kW	61.3kW	64.4kW	78.4kW
aspect	2.32.53.3m	4.4×2.9×3.5m	5×3.9×5.2m	6.1×3.6×7.9m	7.1×4.7×8.7m	8×5.5×8.7m

Various shot blasting machines customized to your specific requirements

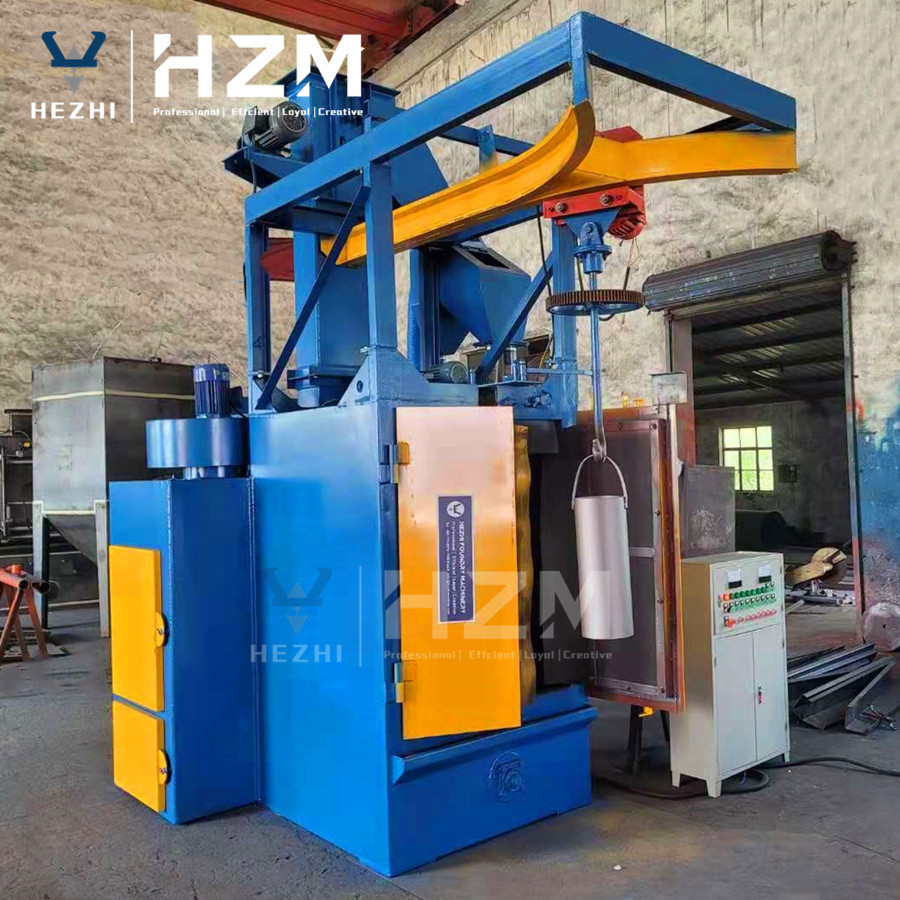

Swivel hanger hook system

Swivel hanger hook:For hanging workpieces or tools
motor:Drive the universal hook to rotate and move in or out along the track.

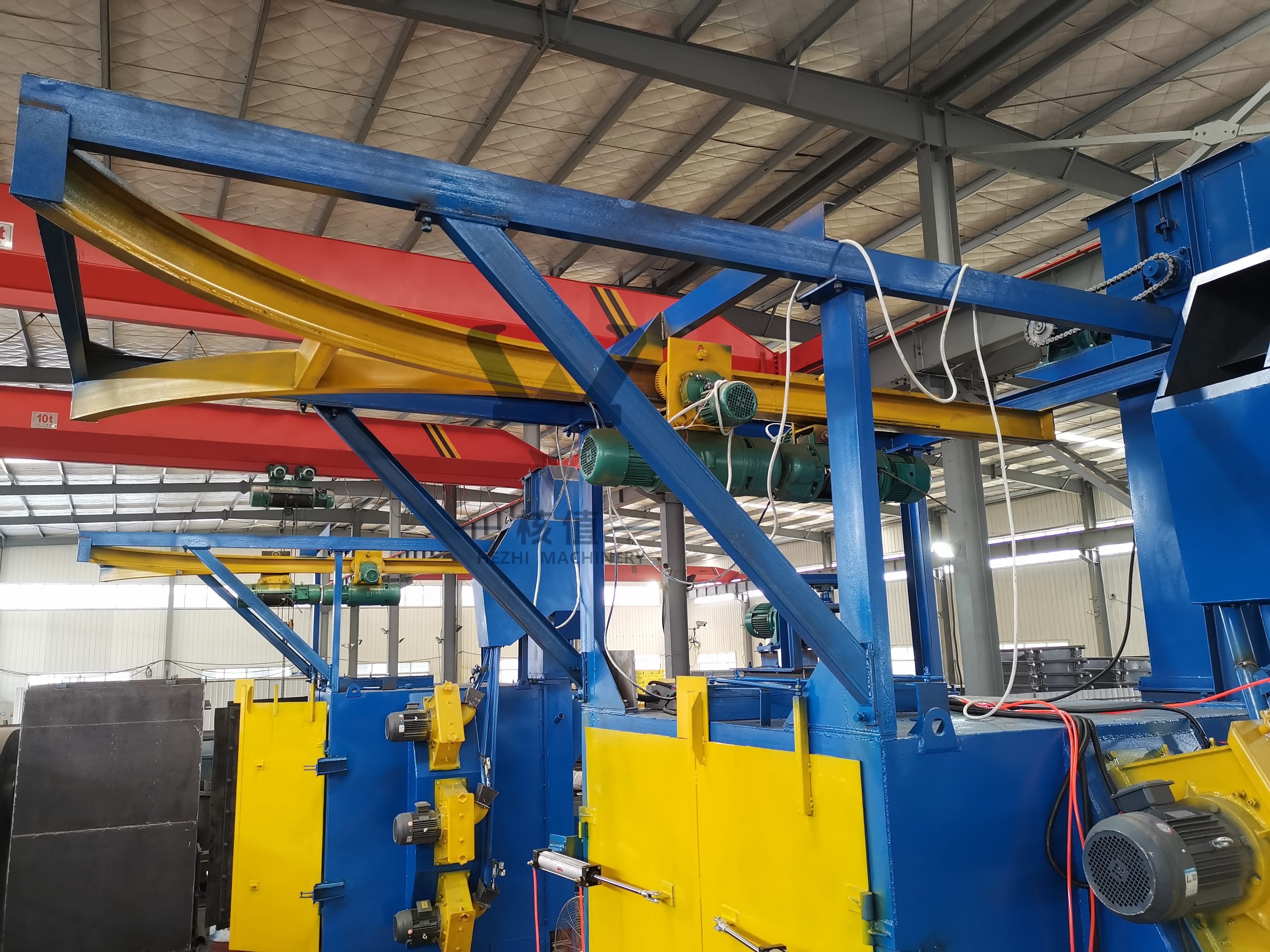

Overhead track:T type has 1 hook, Y type has 2 hooks
Spin and Blast Time:3-5 minutes depending on different workpieces

sandblasting room

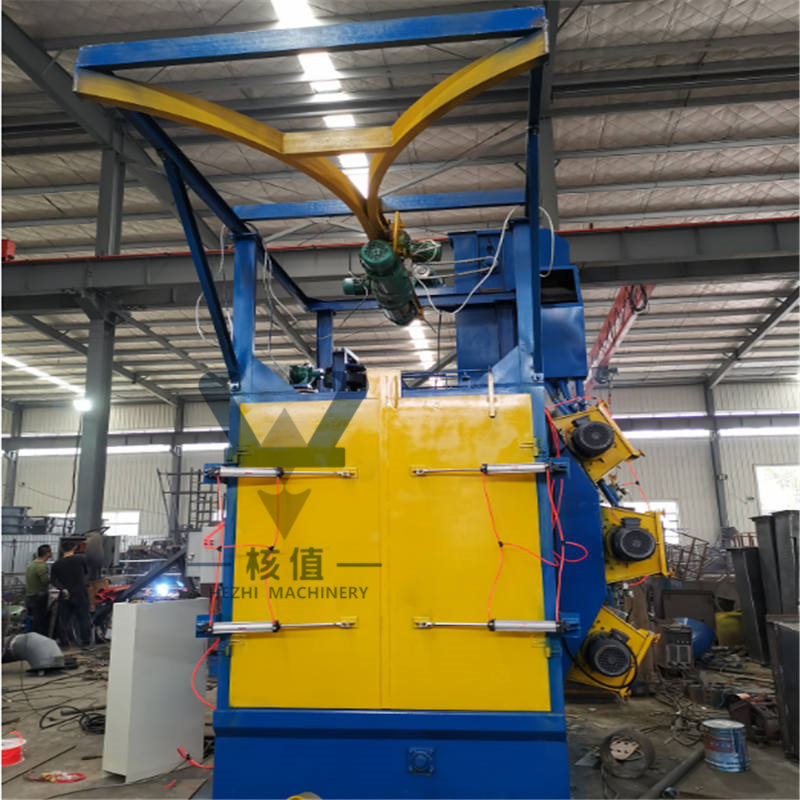

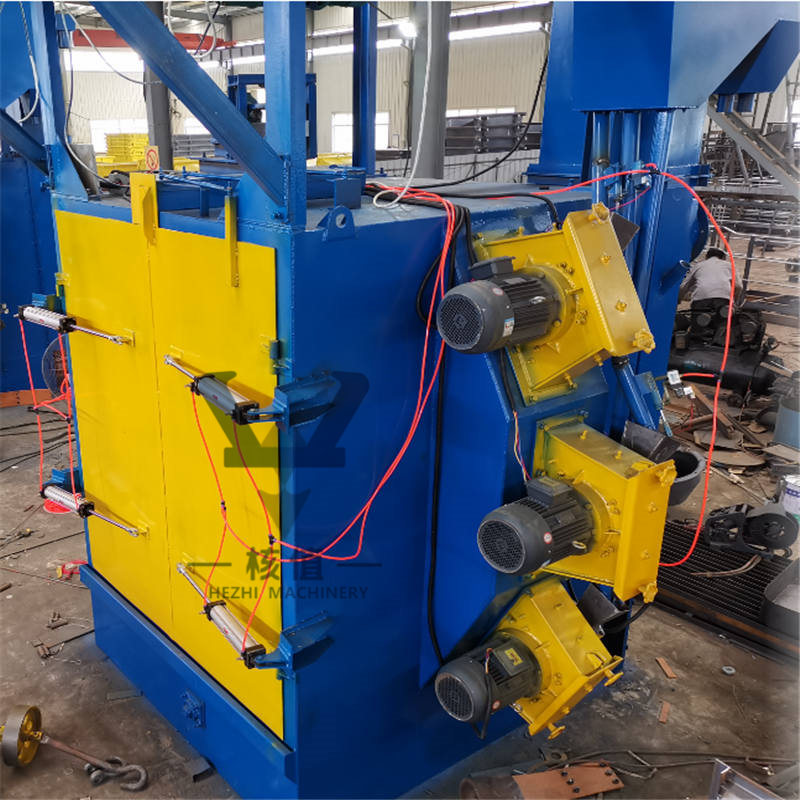

Shot blasting wheel:Installed on the left wall of the shot blasting chamber. The angle will be customized according to the work piece.

Popular areas:The right inside of the blast chamber is called the hot zone and is protected by a manganese alloy lining.

Door:Available in manual or pneumatic versions.

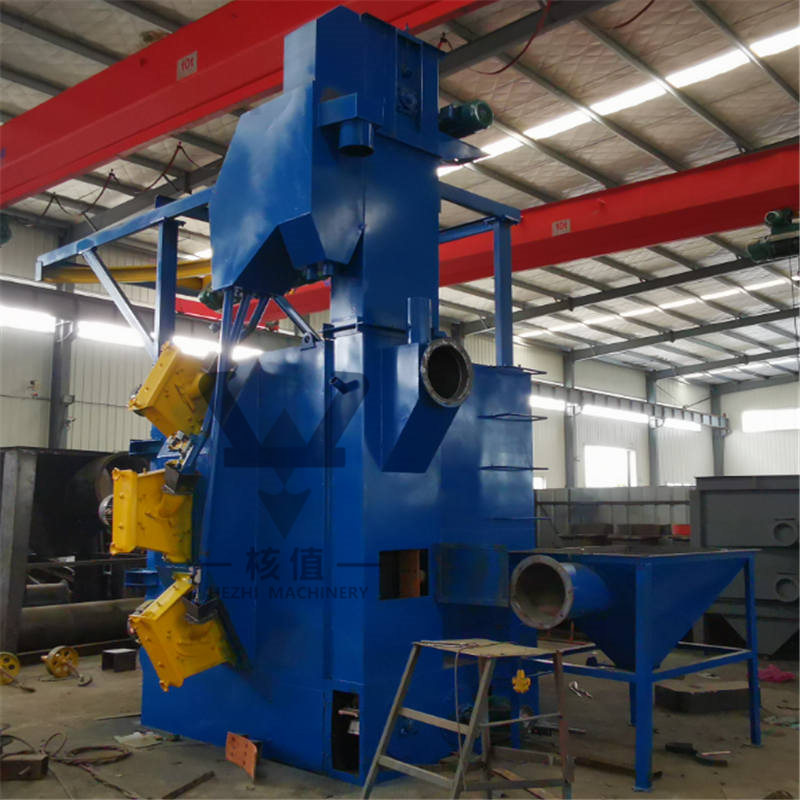

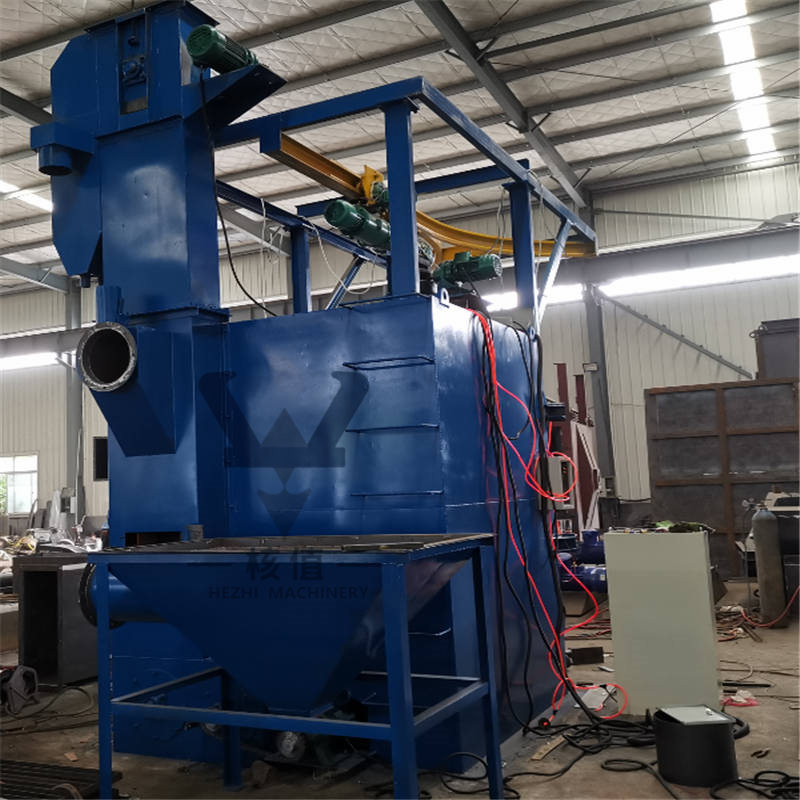

Abrasive recovery system

Screw CConveyor:InstalledThe spent steel shot is collected at the bottom of the paint booth and transported to the bucket elevator.

Bucket elevator:Lift used sheets to separator.
Separator:Qualified steel shot and steel sand are separated through screen filtration and ventilation filtration.

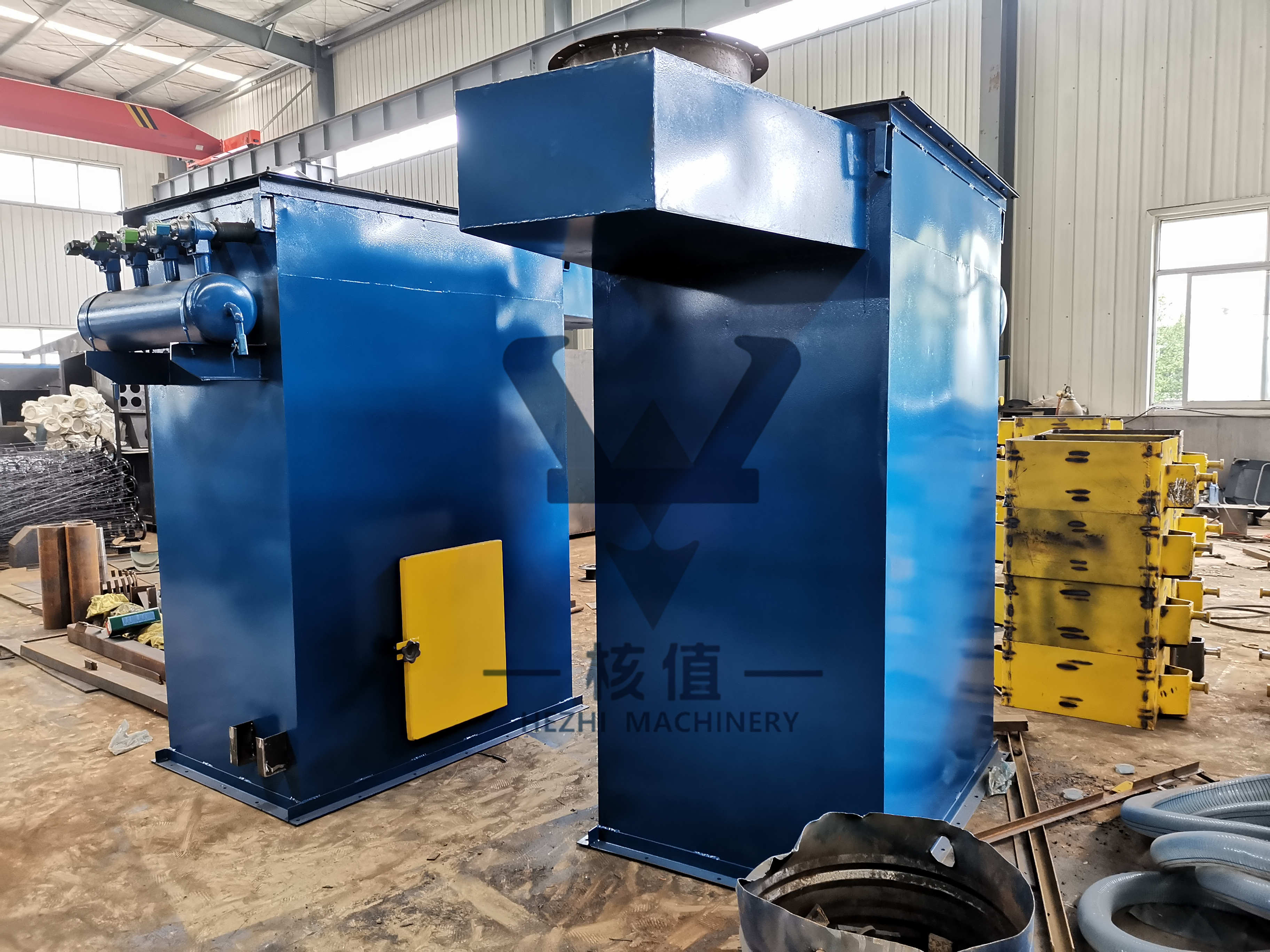

Dust removal system

fan:Vacuum dust from the blasting chamber through ducts.
Gravity dust collector:Large particle size dust is captured by gravity as the first state dust collection.
Dust removal:According to the different types of filters, they are divided into bag type and cartridge type.

efficiency:99.9%

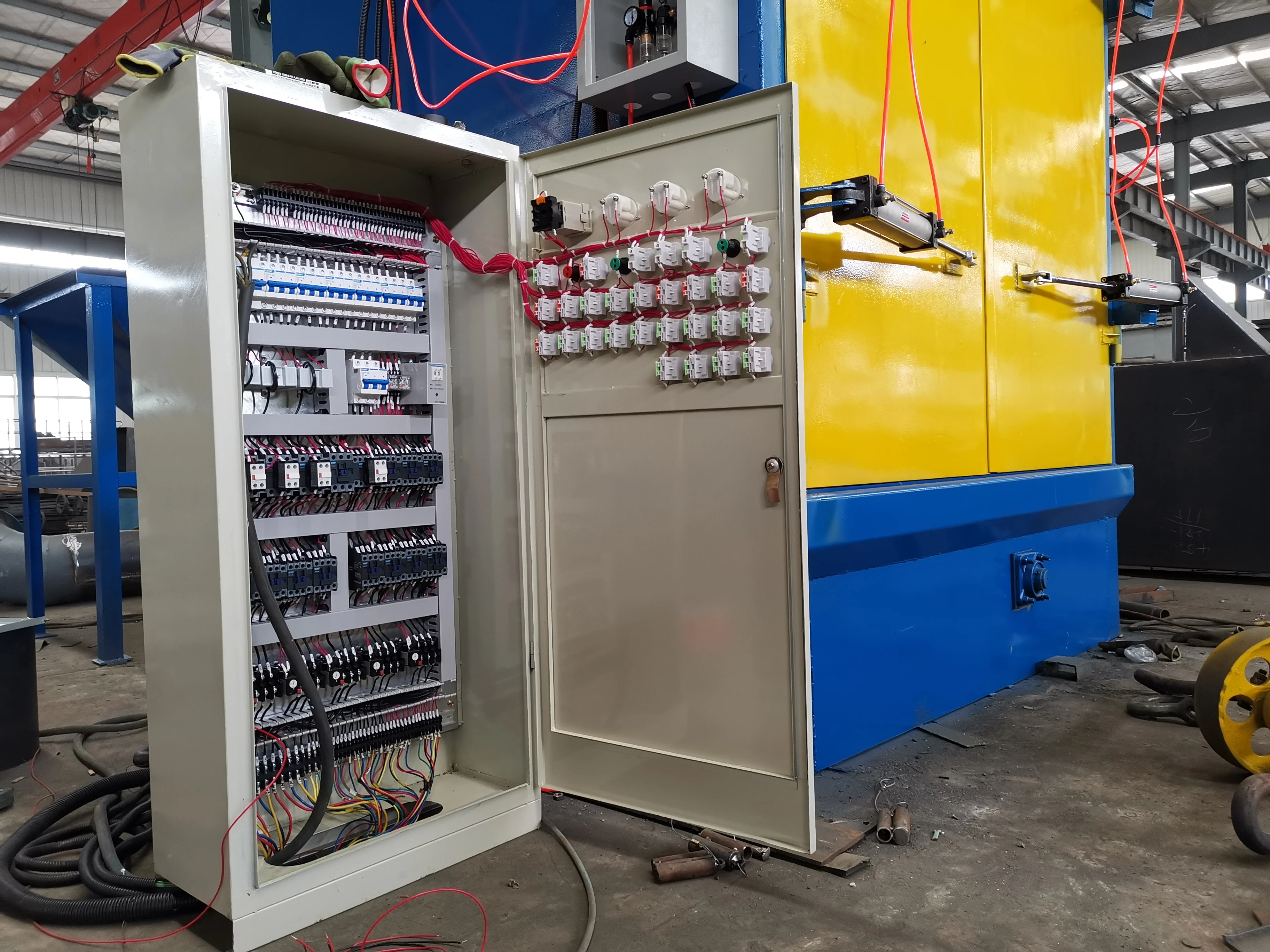

Electronic control system

Model:Automatic (manual version available).

control unit:PLC.
emergency stop:On the main control panel and roller conveyor.
Power Indicator:Can be found on the control panel.

Q3710 ↑ Q376A ↓

Qingdao Hezhi has been a casting machinery and shot blasting machine manufacturer since 2005.
The products cover molding equipment, sand regeneration equipment, sand mixers, dust collectors and a full range of shot blasting machines.

We have a production workshop area of 3600 square meters, equipped with 2x10 crane.
There are plans to expand the space by 2,600 square meters.
Obtained ISO9001. A full set of production, QC (3 personnel) and after-sales (3 personnel) guarantees that the product is defect-free.
3D Solidworks was used for design. R&D personnel with more than 20 years of professional experience meet your customized needs.

Our philosophy: professional, efficient, loyal,
Our mission: Create core value for our customers, our employees and our company.

Choose Hezhi to get factory-priced and reliable shot blasting machinery!
