Direct Drive Shot Blasting Spare Parts Wheel Turbine Shot Blast Machine

Supplier: Qingdao Hezhi Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Zhang
Price: $900.00 / 1 - 1 sets
$800.00 / 2 - 4 sets
$700.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Qingdao/Ningbo/Tianjin/Shenzhen/Shanghai	fuel:	electrical
After-sales service provided:	On-site installation, commissioning and training	Main selling points:	Factory price, CE quality

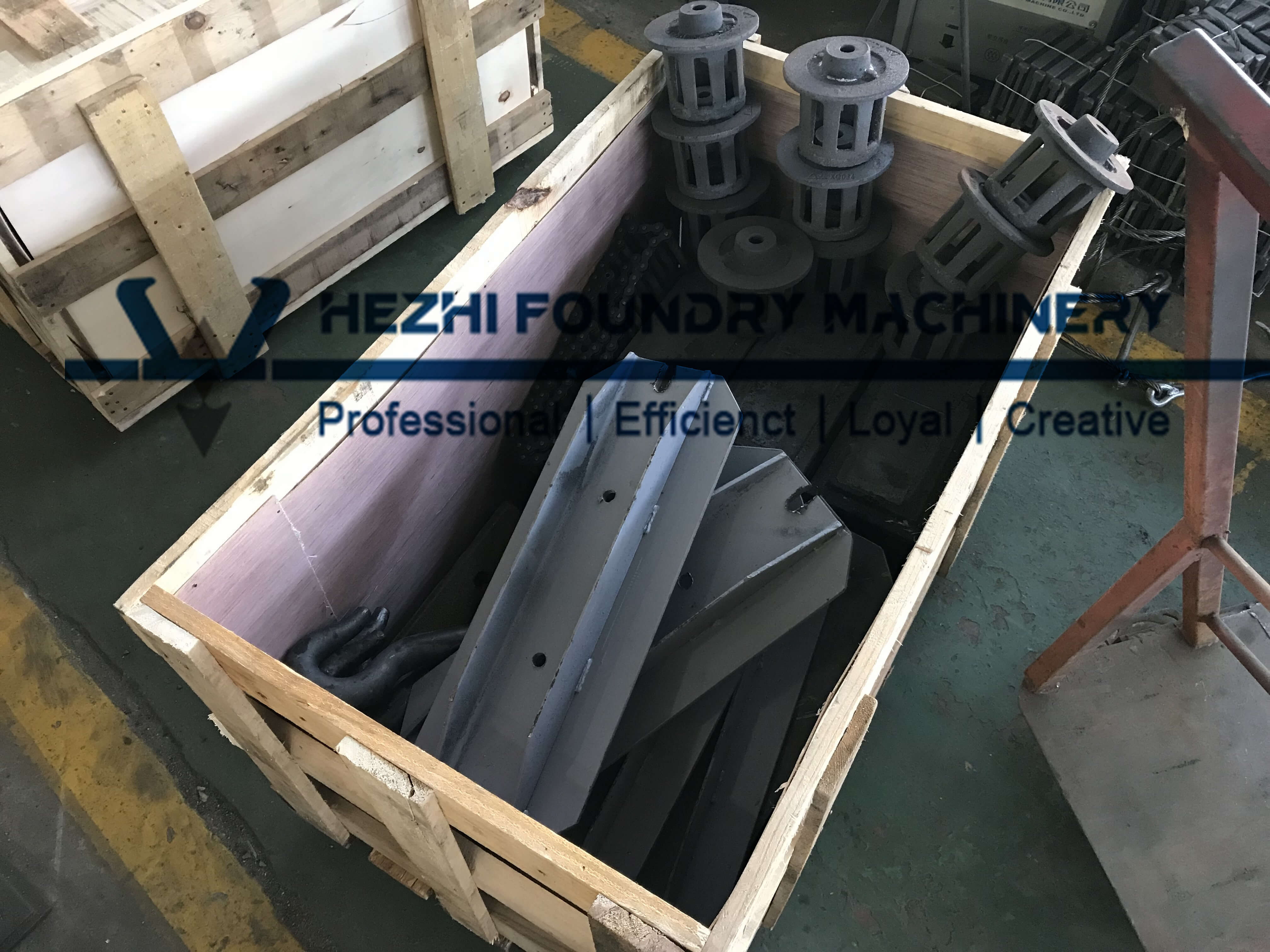

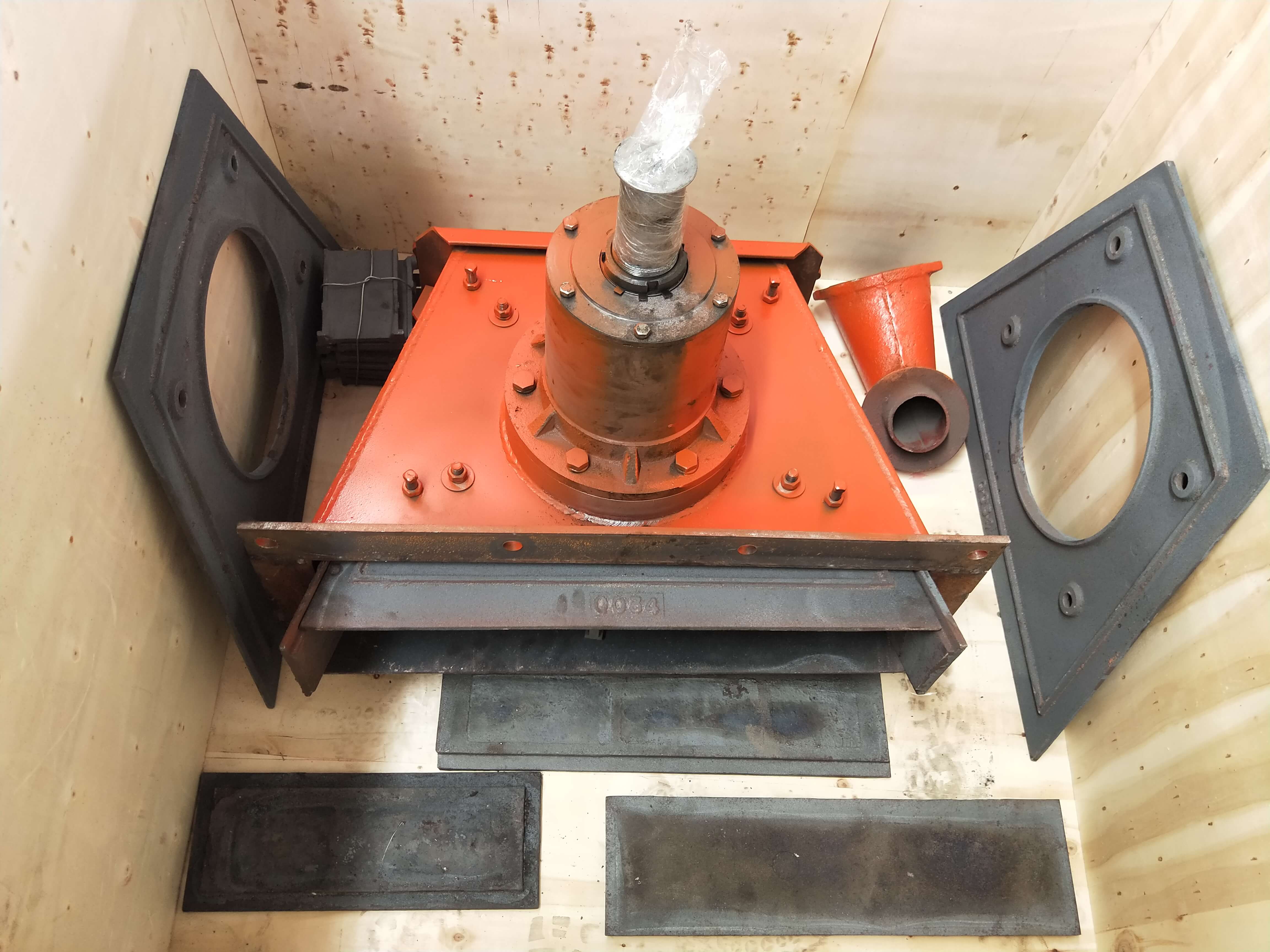

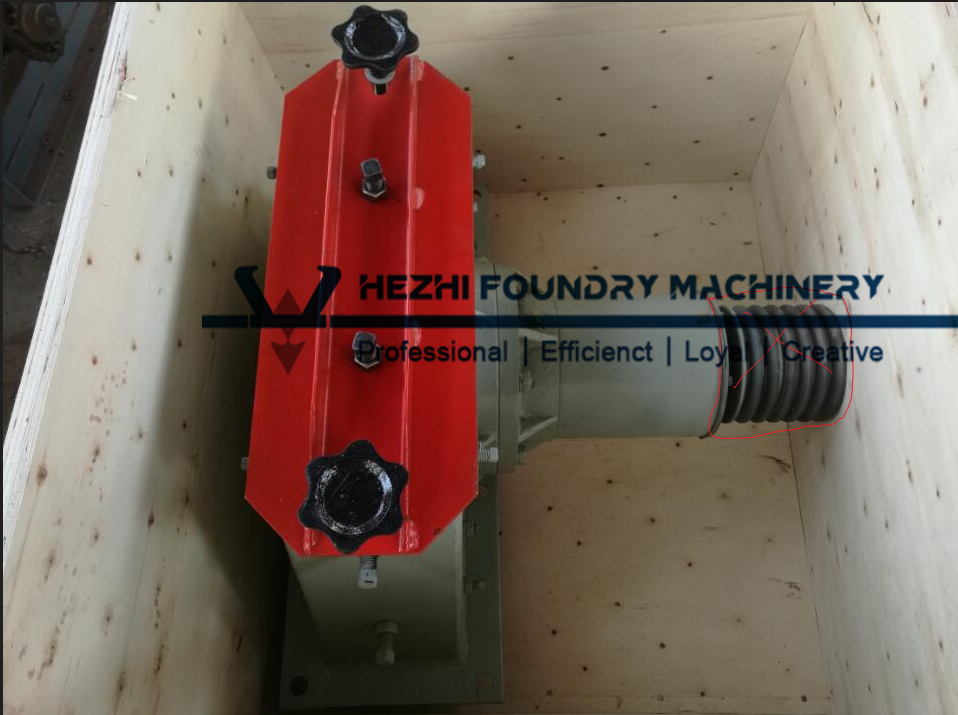

Maximum blasting capacity:	250 kg/min	Packaging Details:	The shot blasting wheel and turbine of the shot blasting machine are packed in a plywood box
Cleaning process:	pellets/abrasives/shredded	Supply capacity:	30 sets per month
Warranty:	1 year	strength:	Maximum 7.5KW
Core component warranty:	1 year	Origin:	Shandong Province, China
Applicable industries:	Building material stores, manufacturing plants, machinery repair shops, construction projects	PLC:	Siemens, Omron or domestic well-known brands
Core components:	Engines, bearings, gearboxes, gears	brand:	And to
Blasting speed:	70 m/s	Certification:	International Organization for Standardization
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	spare parts:	Chromium manganese alloy standard parts
Dimensions (LWH):	most models	Showroom location:	not any
cleaning type:	Shot blasting/wheel shot blasting motor drive	Local service locations:	not any
Mechanical test report:	if	Marketing Type:	2020 New Products
Material:	metal/coil	Health status:	new
Package preview:		dust collector:	Cartridge/Bag Filter Pulse Reverse
use:	Shot Peening/Sandblasting	Type of machine:	Abrasive machine
payment terms:	L/C, T/T, blast wheel and turbine for shot blasting machine spare parts	Video outbound inspection:	if
operate:	Fully automatic continuous blast cleaning	Weight (kg):	197 kg
Sandblasting blade width:	70 mm

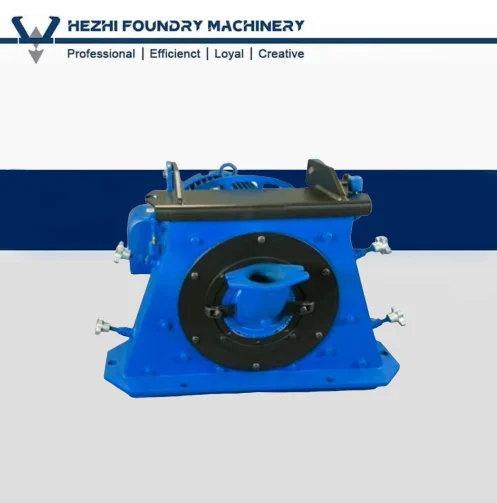

The shot blaster is also called the shot blast turbine, the shot blast impeller or the shot blast wheel. It is the key component of the shot blasting machine.

The motor drives the shot blaster to rotate, and uses centrifugal force to throw steel shot, steel sand or steel wire onto the metal surface to complete shot blasting. Belt drive and direct drive can be used.

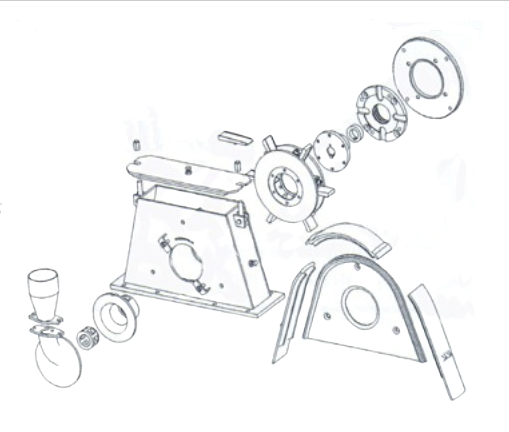

The blasting turbine consists of a disc, impeller, control cage and blasting blades. Jet blades can be straight, curved or trapezoidal.

Usually a set of shot blasting machines is 8 or 6 pieces.

There are three types of shot blasters:

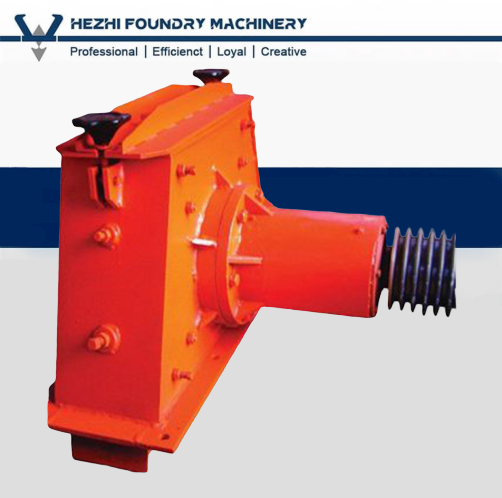

1. Belt drive type 2. Direct drive type 3. Curved type

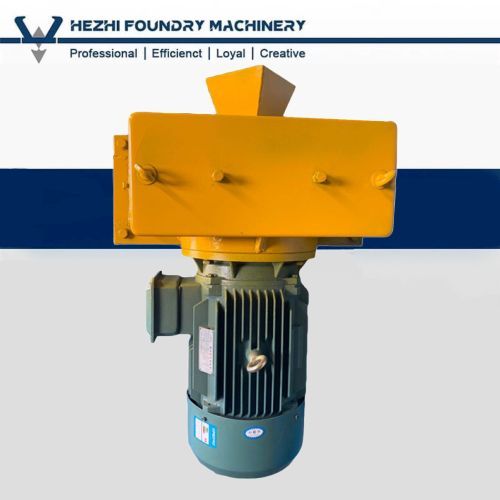

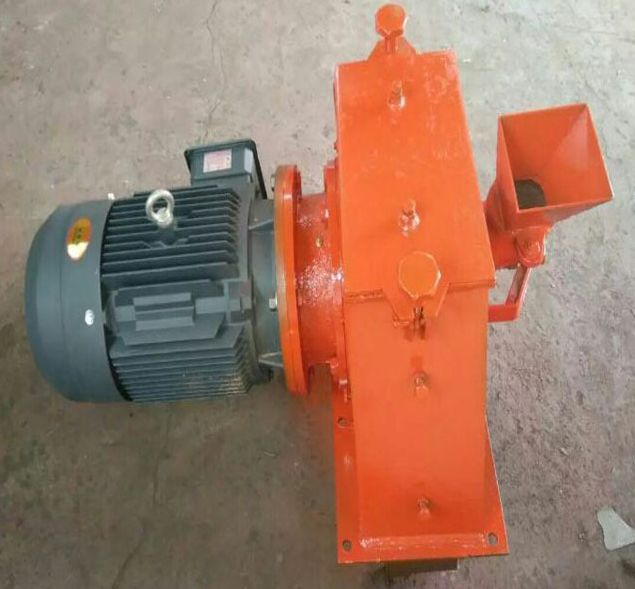

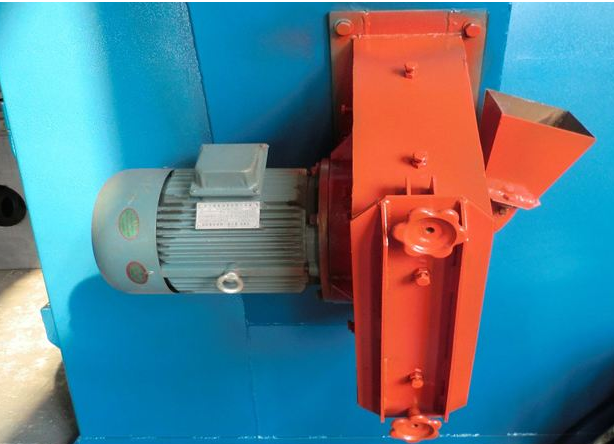

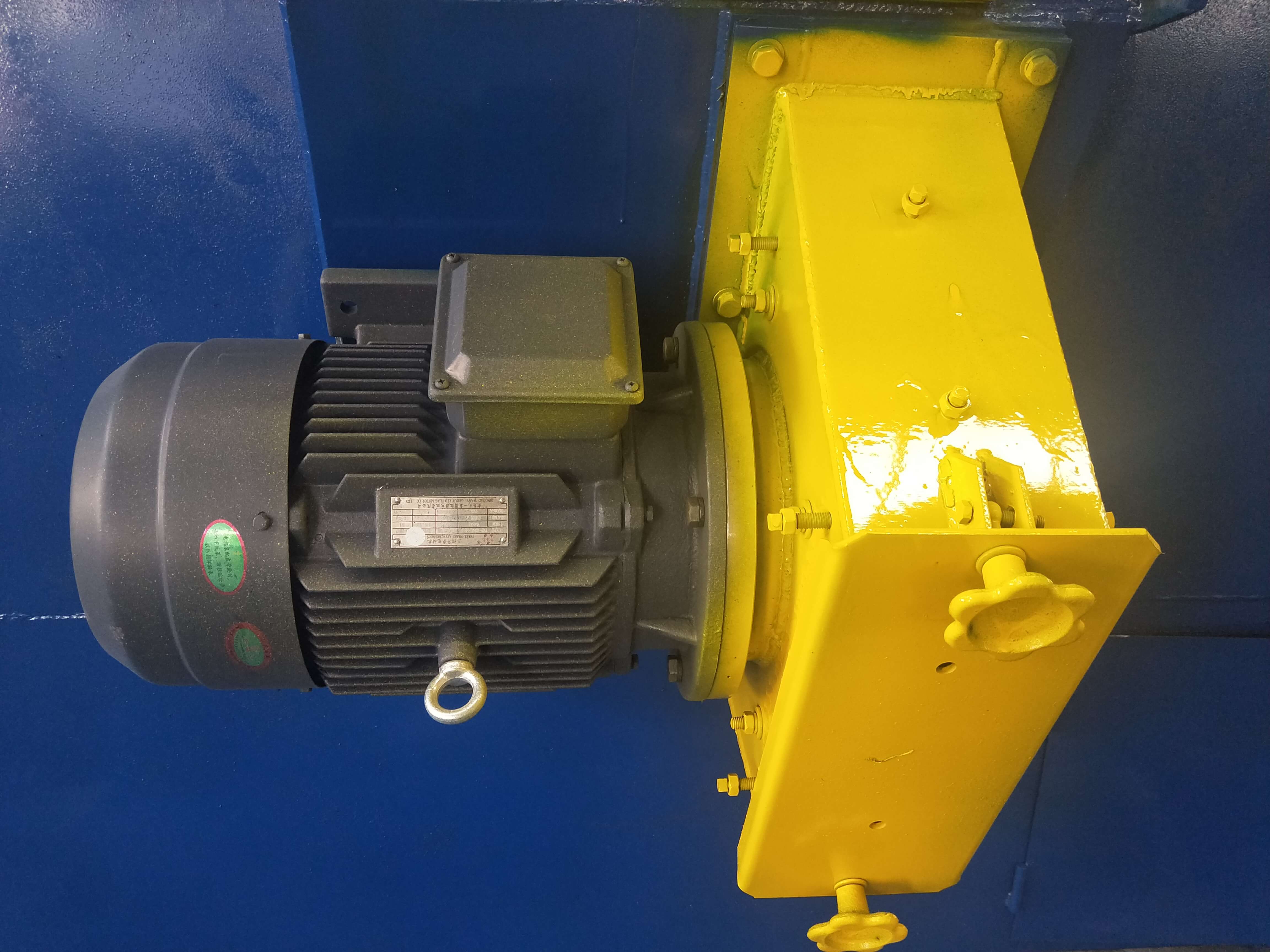

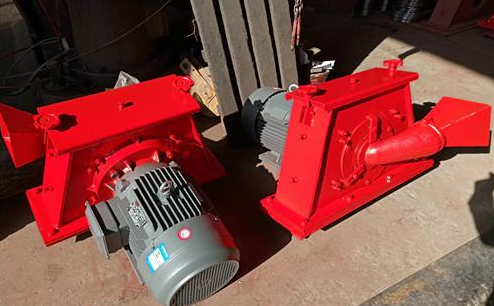

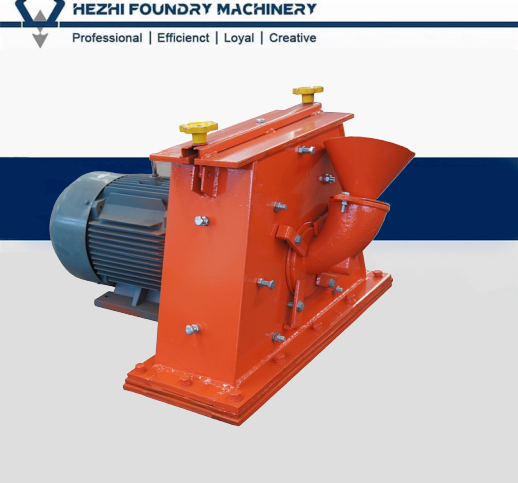

The direct drive blast wheel and shot blaster is a compact blast wheel and shot blaster. The motor is connected with the blower turbine through a shaft.

So it's more efficient, and it's quieter.

The maximum motor power is 15kw, and the maximum blasting capacity is 250kg/min.

Model	Rotation diameter	spinning speed	Blasting ability	strength	Shot blasting knife width	Sandblasting speed
Q034ZZ	380mm	2940 rpm	120kg/min	7.5 kW	70mm	70 m/s
Q033	400 mm	2450 rpm	180 kg/min	11 kW	70mm	70 m/s
Q034B	380mm	2940 rpm	250 kg/min	15 kW	70mm	70 m/s

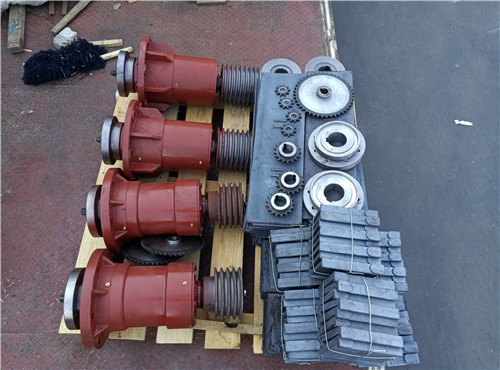

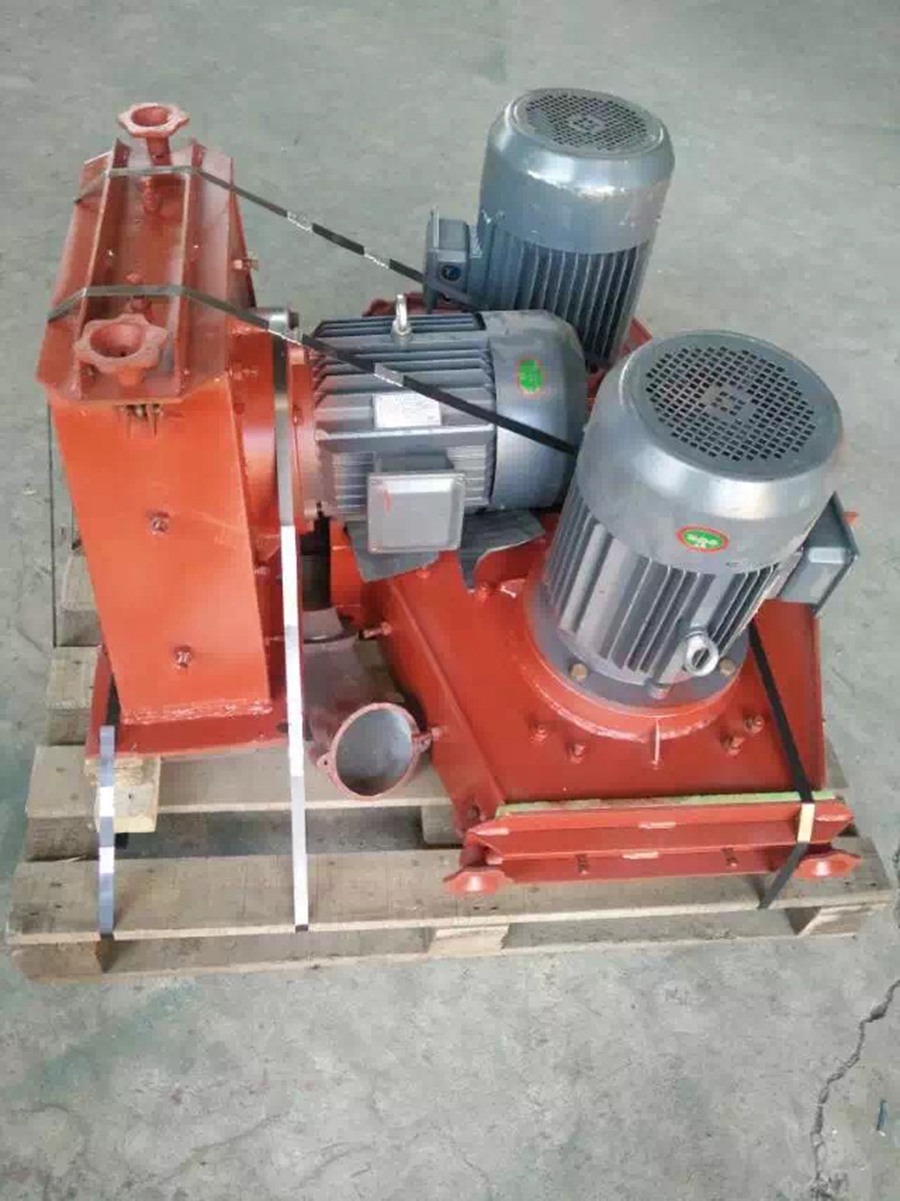

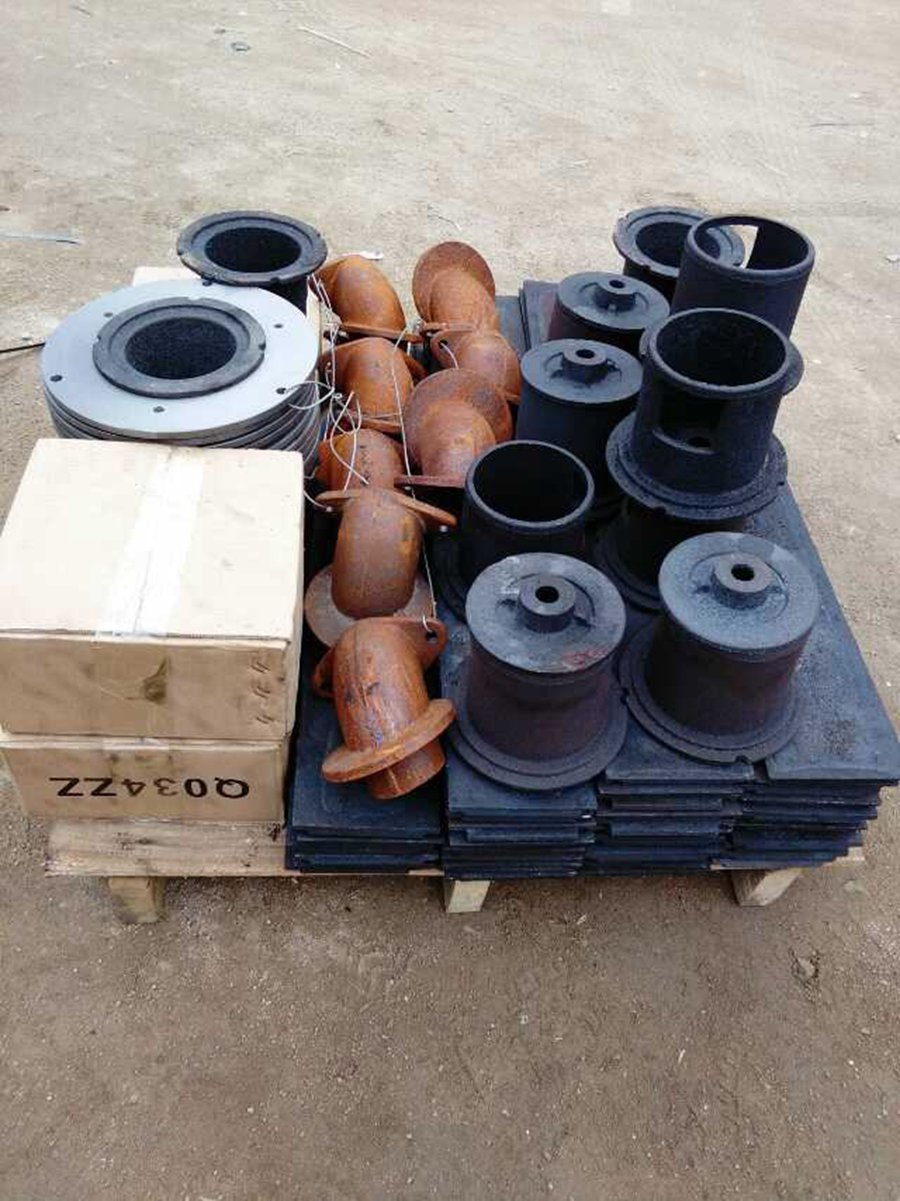

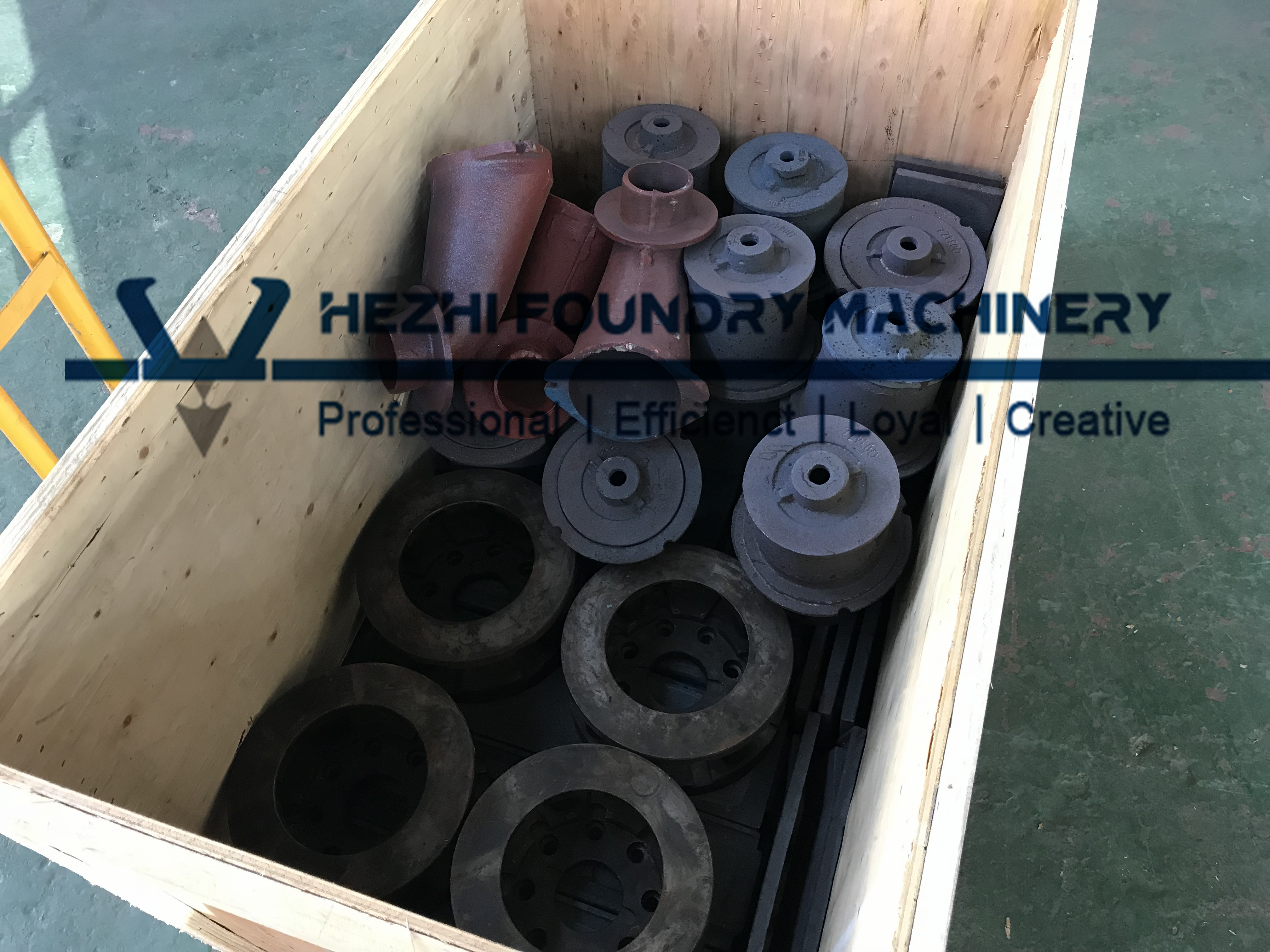

Shot blaster / shot blaster spare parts

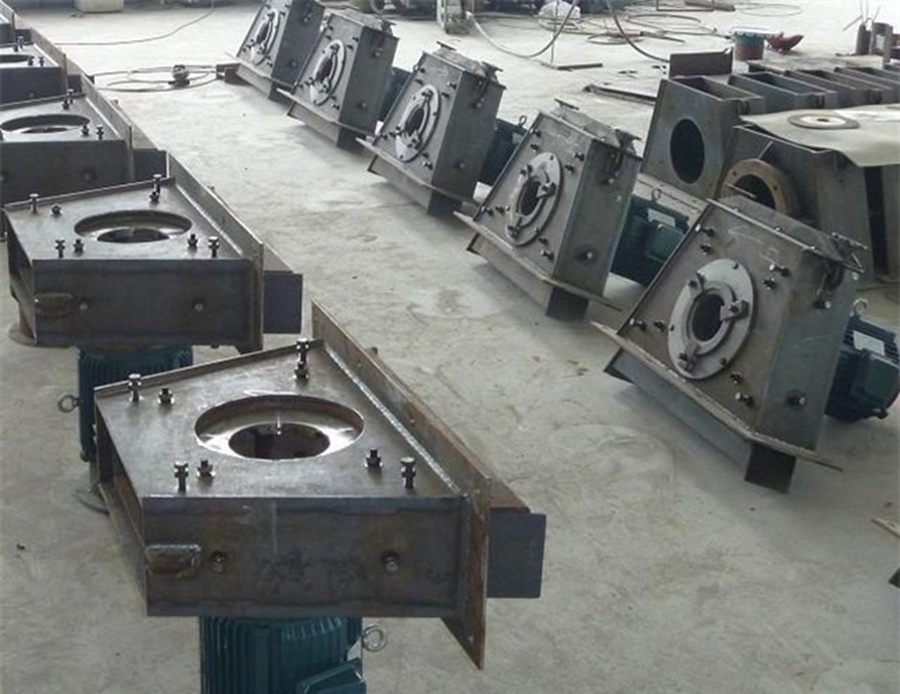

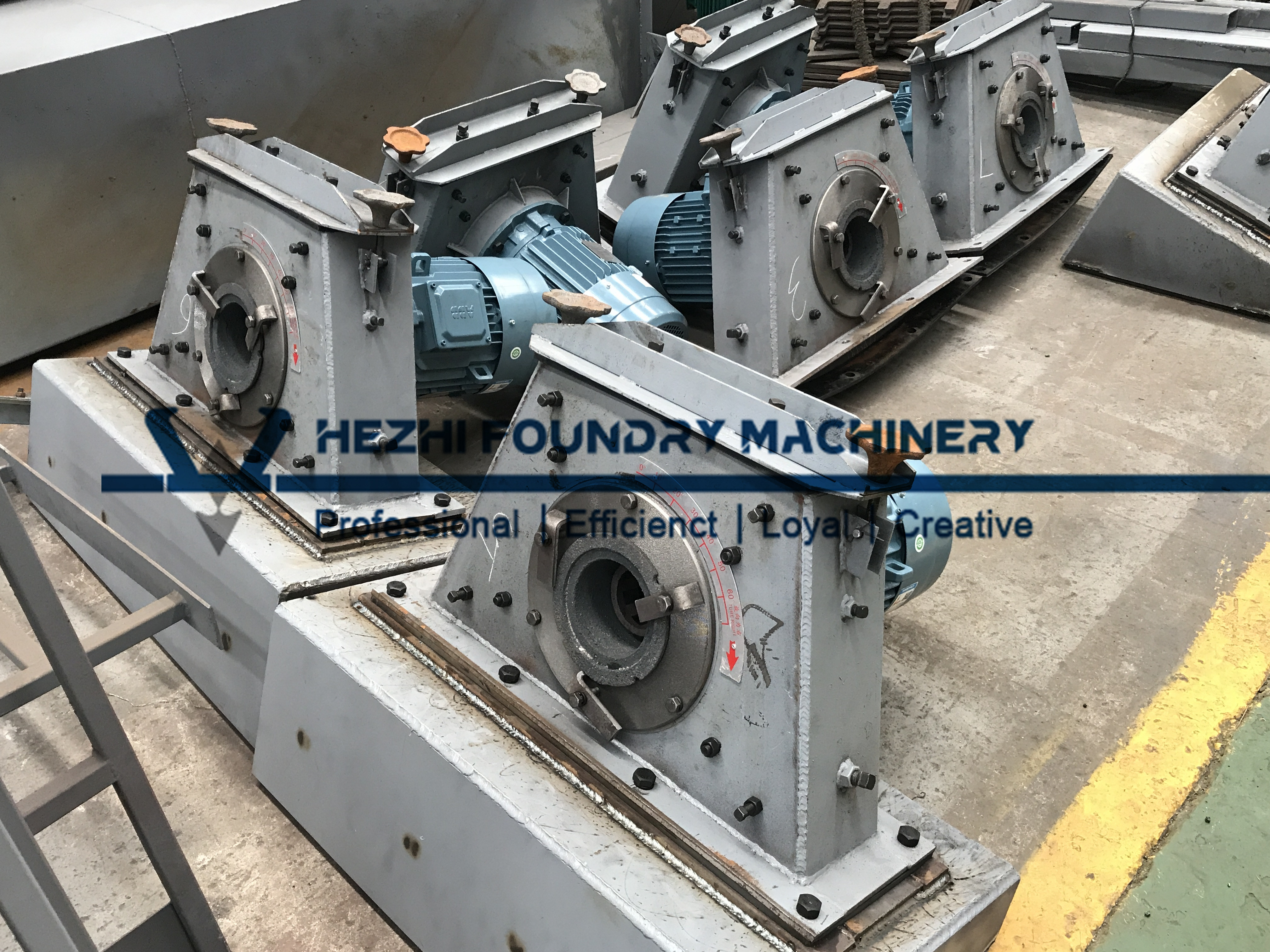

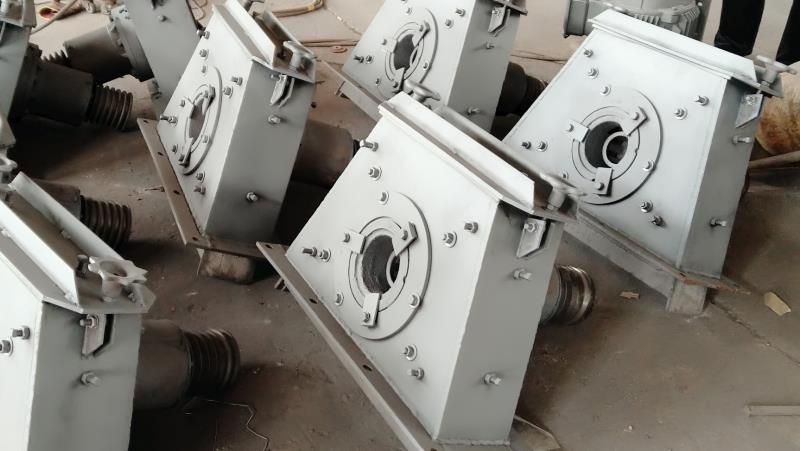

Shot blasters in production:

Qingdao Hezhi has been a foundry machinery and shot blasting machine manufacturer since 2005.
The products cover molding equipment, sand recycling equipment, sand mixers, dust collectors and a full line of shot blasting machines.
We have a production workshop area of 3600 square meters, equipped with 2x10 cranes.
Another plan is to expand the space of 2600 square meters.
Obtained ISO9001. A full set of production, QC (3 people) and after-sales (3 people) guarantees that the product is free from defects.
3D Solidworks was used for the design. R&D personnel with more than 20 years of professional experience can meet your customization needs.

Our philosophy: professionalism, efficiency, loyalty,
Our mission: to create core values for our customers, our employees and our company.

Choose Hezhi, the factory price, reliable casting machinery!
