6/8/10/12 Color Computerized Automatic High Speed Rotogravure Printing Machine

Click here to contact

Product details

Local Service Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico;	Port:	Any port of China;
Brand Name:	CHAMPION;	Applicable Industries:	Printing Shops;
Machinery Test Report:	Provided;	Condition:	New;
Key Selling Points:	High Safety Level;	Color & Page:	Multicolor;
Packaging Detail:	Each set of gravure printing machine into a wooden case;	Warranty:	1 Year;
Payment Terms:	L/C,D/P,T/T;	Marketing Type:	New Product 2020;
Application:	roto gravure printing;	Payment Terms:	30% deposit in advance and balance before shipment;
Video outgoing-inspection:	Provided;	Core Components:	PLC,Motor;
Usage:	gravure printing machine,Label Printer;	Weight:	15000KG,20000kgs;
Showroom Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico;	Place of Origin:	Shanghai China;
Port:	any port in China;	Supply Ability:	10 Set/Sets per Year gravure printing machine;
Certification:	CE ISO9000;	Warranty of core components:	1 Year;
Item:	gravure printing machine;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Delivery:	40-60days after order confirmed;	Certificate:	CE ISO9000;
Automatic Grade:	Automatic;	Voltage:	220V 50HZ;
Package Preview:	;	Dimensions(LWH):	15000X2200X2300MM;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Oversea Installation:	Available;
Type:	Rotogravure Printing Machine;

Dear sir,Pls find our Specification and payment term as below:

Payment	TT/L.C
Delivery	60-120 days

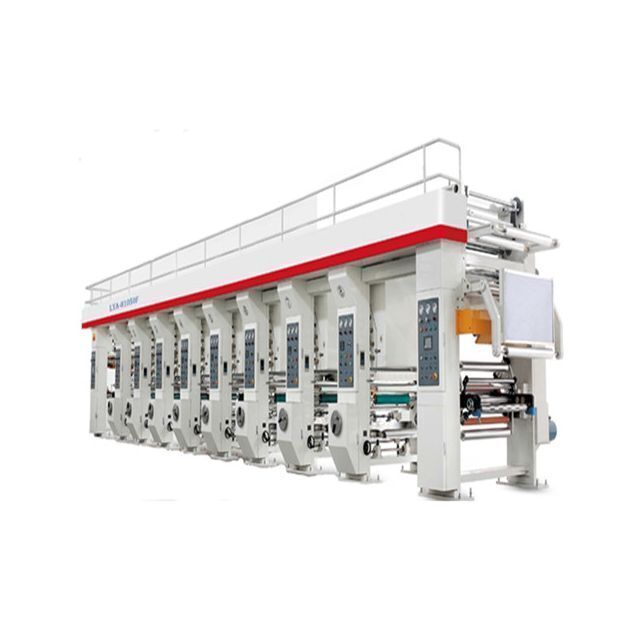

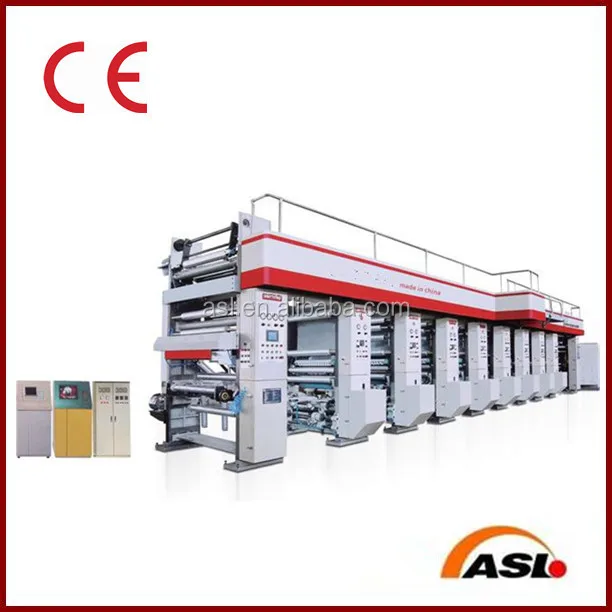

Computerized roto gravure printing machine

Features:

This roto gravure printing machine is suitable for BOPP, PET, PVC, PE, NY, aluminum foil and paper, non-woven fabric, etc., have good printing performance of roll film, multi-color continuous printing materials
Plate installation without shaft: printing speed from 10 to 110meters per minute, mechanical speed is 120 meters per minute
Roto gravure printing machine withe Automatic matching color system, each control unit configuration independent microcomputer processor so that can rapidly accurate correction color deviation
The host frequency control of motor speed, unwind & rewind drag by frequency speed control
Unwinding roll tension: adopts automatic constant tension control device and the magnetic powder brake control
Rewind with double torque motor control, the double location automatically turning can be realized without a stop reloading
Independent external heating, closed cycle hot air drying, can save electricity thirty percent, independent cooling cold box.
Sectional heating system
Pneumatic pressure system & Independent pneumatic scraping system
Feeding axis by gas rose axis, loading and unloading of convenient operation
Printing speed and the meter display
The roto gravure printing machine frame adopts the type of high quality cast iron structure, stability, good vibration resistance
Roto gravure printing Machine with a matching color deviation, according to system comprehensive deviation correction and out-of-tolerance alarm

Product Overviews

Product Description

Print flow direction	From Unwind to rewind
Base material width	480-800mm
Plate cylinder dia	120-300mm
Plate cylinder width	480-830mm
Max. Unwinding dia	Max. 600mm
Max. rewinding dia	Max. 600mm
Tension adjusting range	3-30KG
Specification of paper core	Dia. 76mm (inner diameter)
Precision of tension	0.3KG
Dry Method	Electrical heating
Doctor move range	5mm
Main power	5.5KW
Vertical color control precision	≤0.15 mm
Printing speed	10-110m/min depend on material
