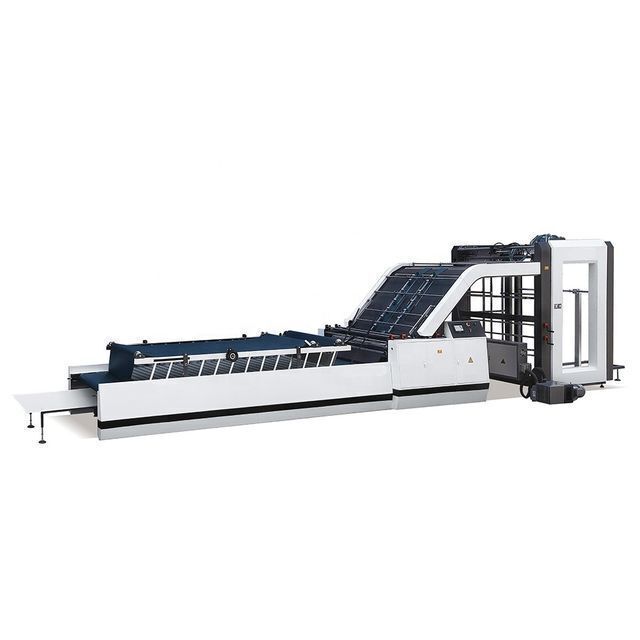

High Speed and Fully Automatic Flute Laminating Machine for Making Cartons

Supplier: Shanghai Asianray Industry Development Co., Ltd.
Region: Shanghai, China
Contact: Mr Charlie Zhang
Price: $45000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty of core components:	1 Year;	Local Service Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico,UAE;
Video outgoing-inspection:	Provided;	Place of Origin:	China;
Showroom Location:	Viet Nam,Saudi Arabia,Indonesia,Mexico,UAE;	Payment Terms:	L/C,T/T;
Marketing Type:	New Product 2020;	Product name:	CYB-1300E;
Machinery Test Report:	Provided;	Condition:	New;
Weight:	5000-6000kg;	Warranty:	1 Year;
Brand Name:	Champion;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Dimension(LWH):	1150X200X240 cm;	Certification:	CE;
Package Preview:	;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Applicable Industries:	Hotels,Garment Shops,Food & Beverage Factory,Food Shop;	Packaging Detail:	W/C;
Voltage:	380V;	Key Selling Points:	High-accuracy;
Core Components:	PLC;

Product Description

Introduction:
This machine can be used in color printing corrugated paper and corrugated paper laminating, tissue using scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never advance. Easy to operate, easy to maintain.

Model	CYB-1300E	CYB-1450E	CYB-1650E
Max Sheet	1300X1250mm	1450X1250mm	1650X1450mm
Min Sheet	400X400mm	400X400mm	400X400mm
Paper Thickness	150-600g	150-600g	150-600g
Speed	7500pcs/hour	7500pcs/hour	7500pcs/hour
Laminating Accuracy	±1mm	±1mm	±1mm
Machine Dimension	11.5X2X2.4M	11.5X2.2X2.4M	11.5X2.4X2.4M
Weight	5000kg	5500kg	6000kg
Power	10KW/380V	11KW/380V	12KW/380V
Thickess	A,B,C,E,F

Features:
1. advanced automatic tracking technology, according to the paper automatically adjust the size of the relevant parameters, so that the machine running is always in the best condition;
2. unique front gauge positioning system, accurate, the bottom paper never advance; advance with adjustable amount of paper;
3. is equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.
4. using the principle of offset printing machine side plate positioning for about error correction paper stack of paper and
feeding process;
5. at the end of the paper using automatic suction feeder, can adjust the size of the wind in the touch screen, and an optional belt humidifying function;
6. spare layboy in the non-stop state pile under a pile of paper, along the rail into the elevator, high working efficiency;
7. imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm;
8. full automatic glue supply system, can automatically add the loss of plastic, and with the glue recycling;
9. independent tank control water circulation, ensure the bottom paper back and dry, cleaning roller, spout, back glue tank;
10. single side adjustment of the pressure of the pressure roller, and equipped with a pressure scale display, the replacement of the end of the paper size adjustment in one step;

Specification

item	value
Place of Origin	China
	New
Brand Name	Champion
	Provided
	Provided
	New Product 2020
	1 YEAR
	PLC
	380V
Dimension(LWH)	1150X200X240 cm
	5000-6000kg
	CE
Warranty	1 YEAR
After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points	High-accuracy
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries	Hotels, Garment Shops, Food & Beverage Factory, Food Shop
Local Service Location	VIET NAM, SAUDI ARABIA, indonesia, Mexico, UAE
Showroom Location	VIET NAM, SAUDI ARABIA, indonesia, Mexico, UAE
CYB-1300E

Packing & Delivery

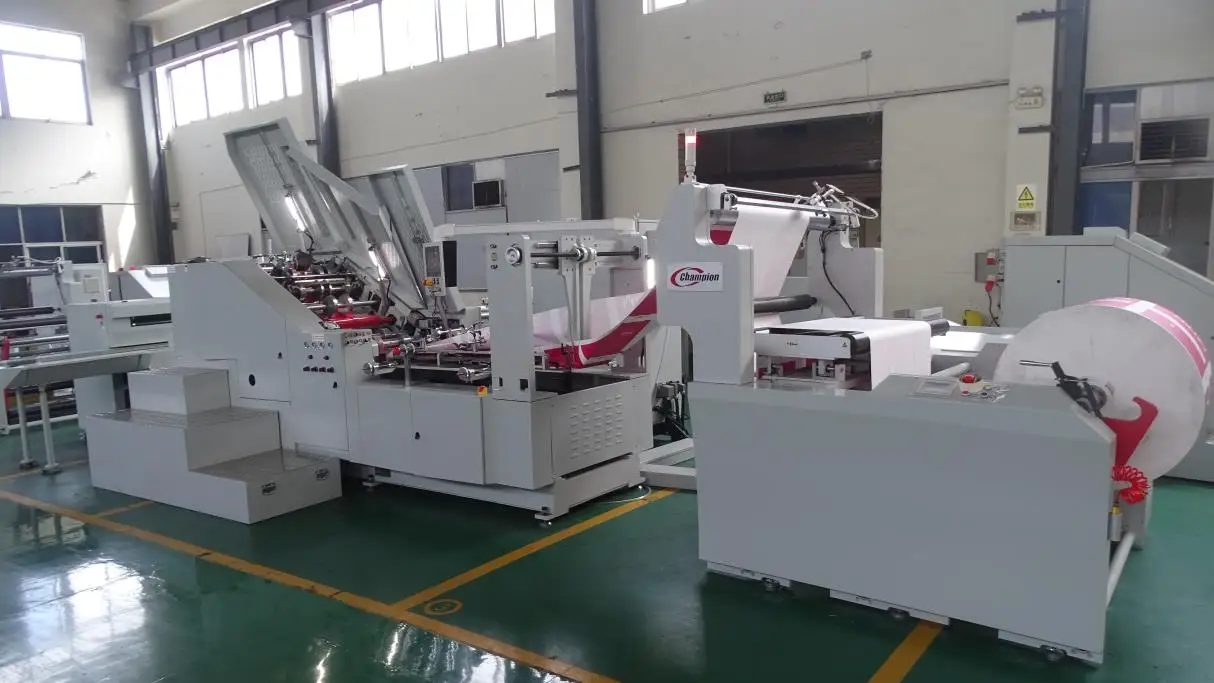

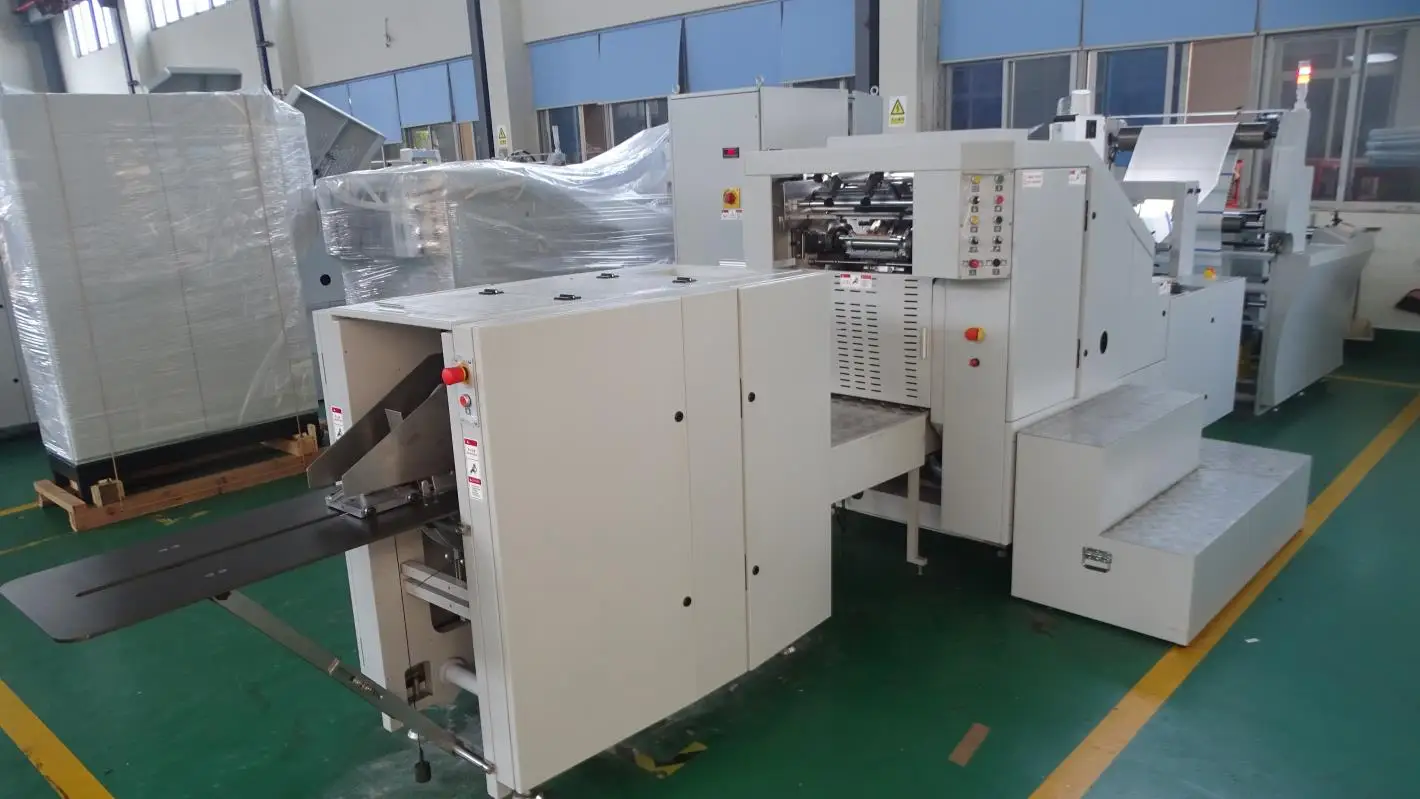

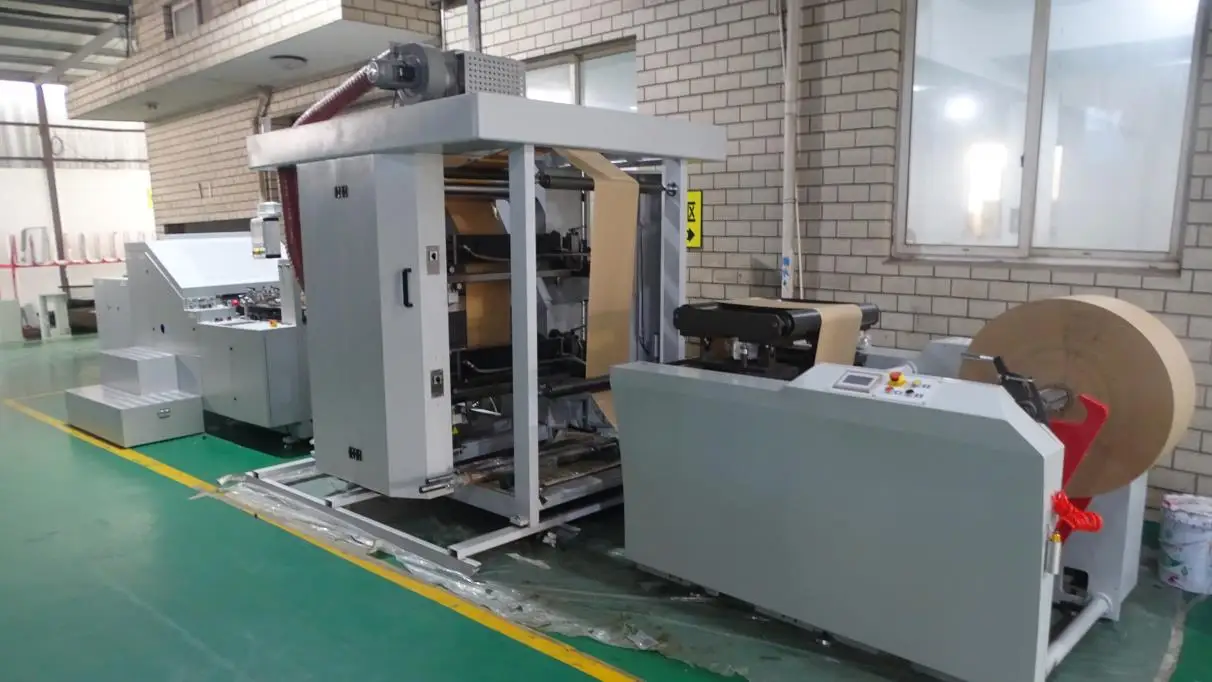

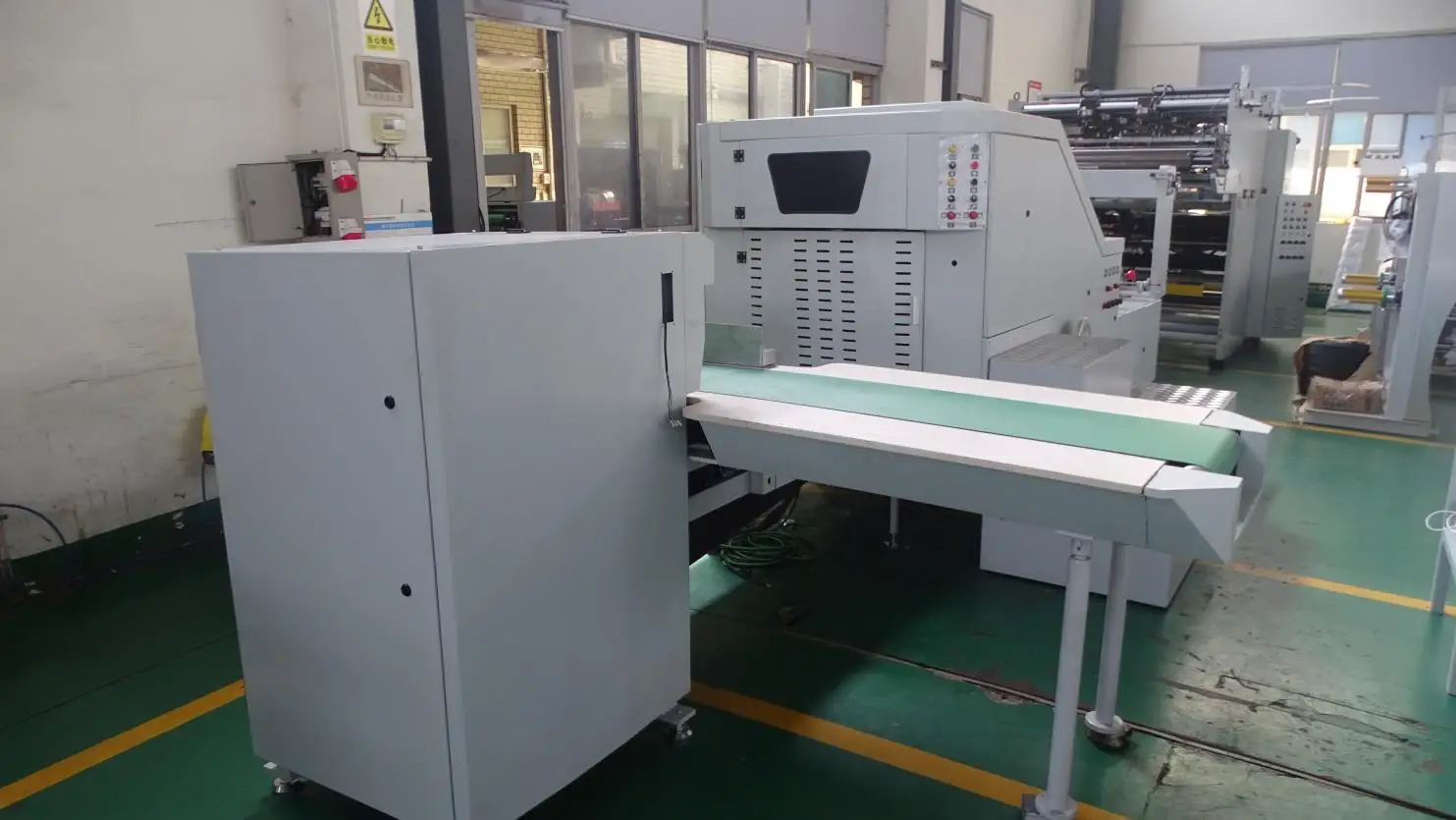

Company Profile

ASL is a leading manufacturer and supplier of l Print Finishing & Packaging Equipment in China, we established in 2004,most of staffs have more than 6 years experience in this business field We have our own production facilities in SHANGHAI city where unique graphical devices are produced following CE standard and European design, the plant includes a modern designing center ,CNC and assembly line, manufactured with strict quality control system. Meantime , we also start industry packaging products in 2006. and may supply series of products included auto die cutter , auto case maker, auto folder gluer ,sheet to sheet laminator, paper bag making machine, etc. Now a network of distributors in 18 countries included branch company in DUBAI and INDIA are benefit from our unique and cost-effective products. As a innovator we are planning to bring out online paper-handling and uv varnishing specialised installations in the future,believe it will create more and more opportunities for our cooperators.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2004,sell to Mid East(00.00%),Southeast Asia(00.00%),South America(00.00%),Eastern Europe(00.00%),Africa(00.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Printing Finishing & Packaging Equipment

4. why should you buy from us not from other suppliers?
We are specializing in Exporting & Manufacture kinds of post printing and packaging equipment since 2004 and become the No.1 supplier for Printing & Packaging equipment in CHINA. pls contact our office in DUBAI ,INDIA, MEXICO,VIETNAM ,INDONESIA .BRASIL .

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Arabic,French
