6/8/10/12 Electronic Shaft / Shaftless Transmission High Speed Rotogravure Printing Machine Printing Shops Plastic Printer 380v
- 600000.00 set
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Showroom Location: | Viet Nam,Saudi Arabia,Indonesia,Mexico; |
| Video outgoing-inspection: | Provided; | Applicable Industries: | Printing Shops; |
| Machinery Test Report: | Provided; | Port: | SHANGHAI; |
| Key Selling Points: | High Productivity; | Warranty: | 1 Year; |
| Marketing Type: | New Product 2020; | Color & Page: | Multicolor; |
| Package Preview: | ; | Type: | Rotogravure Printing Machine; |
| Core Components: | PLC; | Brand Name: | ASL; |
| Condition: | New; | Usage: | plastic printer; |
| Dimensions(L*W*H): | 35000*4500*3000mm; | Packaging Detail: | sea worth packing; |
| Weight: | 35000kg; | Place of Origin: | China; |
| Automatic Grade: | Automatic; | Payment Terms: | L/C,T/T; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service; | Warranty of core components: | 1 Year; |
| Local Service Location: | Viet Nam,Indonesia,Mexico,Russia; | Voltage: | 380v; |
| Certification: | CE Certificate; |
Dear sir,Pls find our Specification and payment term as below:
| Payment | TT/L.C |
| Delivery | 60-120 days |

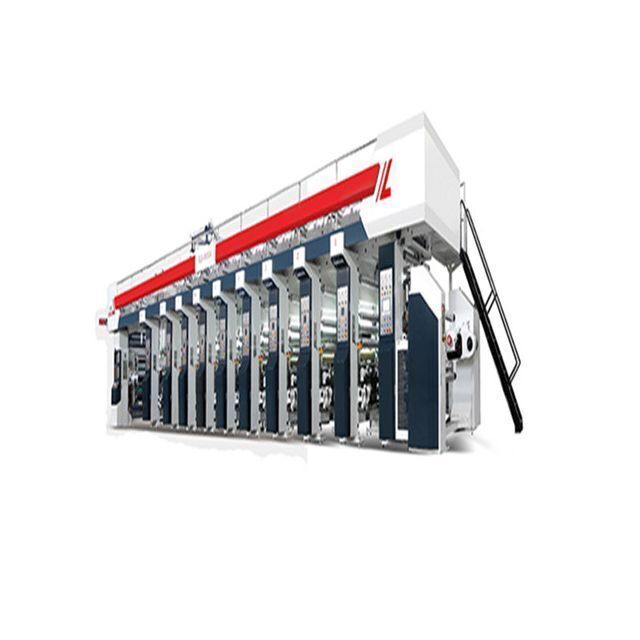

ELS-M Rotogravure Printing Machine (Electronic shaft transmission)
Features:
UNWIND AND REWIND: Cantilever turret whirling stand with double arm & double station, length adjustable shaft-less air cap device. Automatic web roll exchange with cutting device.
PRINTING: High precision and no backlash servo driver. Shaft-less air cap to install printing cylinder. Horizontal & vertical register system, also with preregister. High precision and less waste. Doctor blade plays with double-axis, drove by independent motor. Ink is passed by ink transfer roll.
DRYER: Low consumption oven with high air volume and pressure, multi-return and whirlwind distributed.
CONTROL: machine uses imported servo motor tension control system. Main components are imported brands.
Specification :
|
Applicable material |
Paper, Plastic film |
|
Mechanical speed |
270 m/min |
|
Web material width |
850. 1050. 1250. 1450. 1650mm |
|
Registration precision |
≤± 0.10 mm |
|
Dia. of unwind and rewind |
600,800mm |
|
Dia. of plate cylinder |
120 mm – 300 mm |
|
Dry method |
Electricity. Steam. Thermal oil or Gas |
|
Optional functions |
Independent turret type or disc type.Ink trolley. Reverse printing system. Energy saving system. |
If you have any question,please do not to contect us.
We are looking forward to hearing from you.
Thank you.
