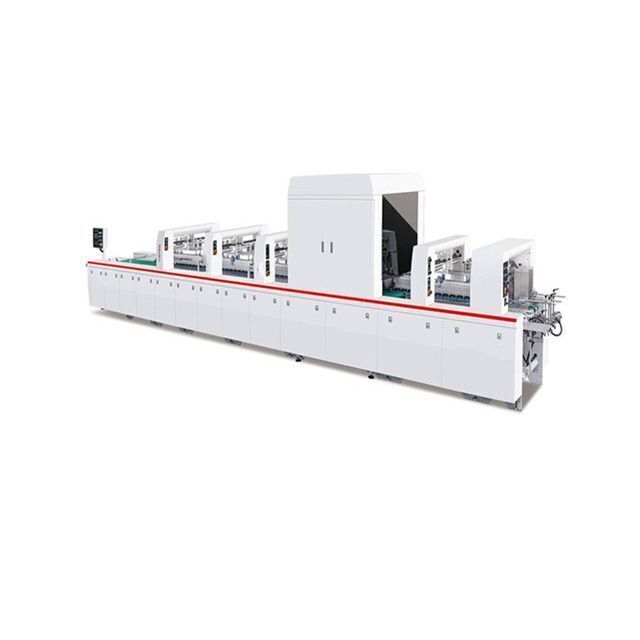

Automatic Offline Box Quality Inspection Machine For Folder Gluer

Specially developed for sheet-fed packaging industry, such as, pharmaceutical, tobacco, 3C electronic, cosmetic, food, Tag, Card, liquid packaging etc. It’s versatile function allows accurate inspection of highly-reflective substrates as well as normal ones, for instance gold and silver metalized film paperboard, laser film paperboard, aluminized material and stamping material.It is able to inspect defects like missing print, dirty spot, ink splash, registration, color deviation, streak as well as embossing defects and variable data.

HIGH INTELLIGENT

Intelligent software can classify defects by setting different inspection precision for different areas. Equipped with surveillance system, in case of any defaults in machine will auto stop in order to reduce maintenance cost and safety.

HIGH SPEED, HIGH PRECISION

Max. machine speed 300m/min., can inspect point defect min. size 0.1mm² and strip defect 0.1mm in width, even can inspect the defect of small punctuation marks.

EASY TO USE

Easy and efficient software, only one reference image is needed for setting up, only takes 3-5 minutes to set up a new template.
Easy and friendly machine platform, change over time for a new job and takes about 15 minutes.

ADVANCED MECHANICAL DESIGN

Marble structure design ensures stable running and precise inspection. The special feeding structure design can prevent scratch issues. Made of stainless steel and the closed design ensure the safe operation of the system with minimal noise & dust.
