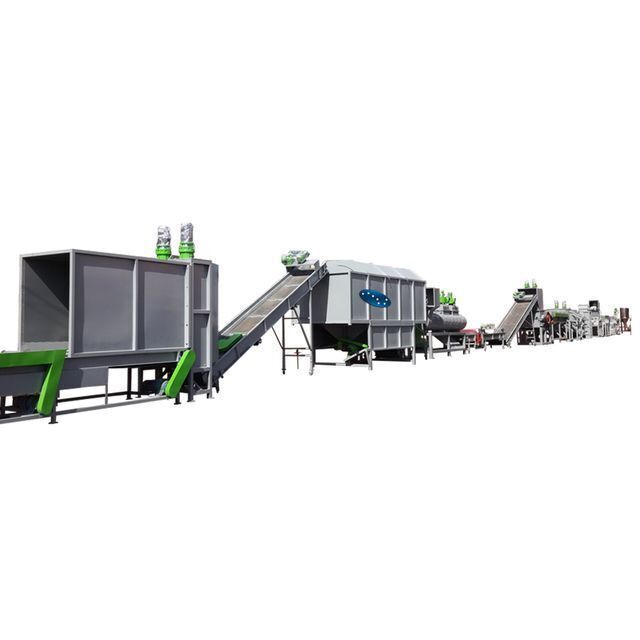

PET Bottle Recycling machine Line /PET Flakes Hot Washing Machine /bottle flakes washing machine

Product details
After Warranty Service:Video technical support,Online support,Spare parts;Dimension(L*W*H):30*5*6;
Packaging Detail:Pallet-wrap and air bubble Customizable pet recycling machine;PVC:<30PPM (PVC has to be sort out by hand);
Condition:New;Moisture:max 1%;
Applicable Industries:Manufacturing Plant;Particle size:12mm or 14mm;
Certification:ISO9001 CE;Weight (T):20;
Key Selling Points:High-accuracy;Production Capacity:300kgh -3000kg/h;
Place of Origin:Jiangsu China;Local Service Location:Egypt,Pakistan,India,Mexico,Russia,UAE;
Application:PET bottle recycling line;Warranty:2 years;
Material:Stainless steel 304;Voltage:380V50HZ or customized;
Supply Ability:50 Set/Sets per Year;PE/PE and Paper and other impurity:
Brand Name:Sevenstars;Showroom Location:Egypt,Pakistan,India,Russia,Bangladesh;
Name:pet recycling machine;Port:Shanghai pet recycling machine;
Automatic Grade:Automatic;After-sales Service Provided:Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Engineers available to service machinery overseas;
Power(W):150-500kw;Payment Terms:L/C,T/T,Western Union,Cash;
Plastic type:PET bottles;

PET Bottle Recycling machine Line /PET Flakes Hot Washing Machine /bottle flakes washing machine

Main specifictaions:

Capacity: 300-3000kg/h

Material conatct with PET flakes: Stainless steel304

Electrical parts: ABB inverter, Siemens motor,schneider contactor,SKF bearing,GUOMAO gearbox



Process:Bale opener - Belt conveyor - Label remover machine-sorting tables-metal detector-Wet crusher - floating wahser tank-friction washer -Hot washer - Floating washing tank -floating washing tank- Screw feeder- Dewatering machine - Dryer -Blower - Silo

(the process can be negotiate,we will design the line as customer request and budget)



PET Washing Line Product feature:

1. High automation, Less man power, low energy consumption, high output.

2. Provide whole solution for by-products during production, for example: variegated bottles, non-PET material, sewage water, labels, caps, metal and etc.

3. With a materials pre-treatment system such as Pre-washer, Label processing module, highly improve quality of end products .

4. Through multiple cold flotation, hot washing and friction washing, fully remove the impurities, such as glue, organic and inorganic residue.

5. The reasonable process design, reduce maintenance cost and bring convenient operation.

6. Impurity separation effect (customer feedback):

I) Moisture content: 1% max

II) Final PET density: 0.3G / CM3

A-PVC content: 50ppm

B-metal content: 20ppm

C-PE / PP content: 100 ppm

IV) Final PET size: 14-16 mm



CapacityLength of lineConsumptionWork waysOthers
BDX-PE/PP300300KGAround 25m 130kw Automatic Customized
BDX-PE/PP500500KGAround 50m 160kw Automatic Customized
BDX-PE/PP10001000KGAround 65m 200kw Automatic Customized

More pictures for you as below,welcome you to my factory to see the machine and checking the quality,all the years every times you come to my factory can see the compeletly machine!



Our factory and sales department,we have good sales team and after-sales service team to service for you!
