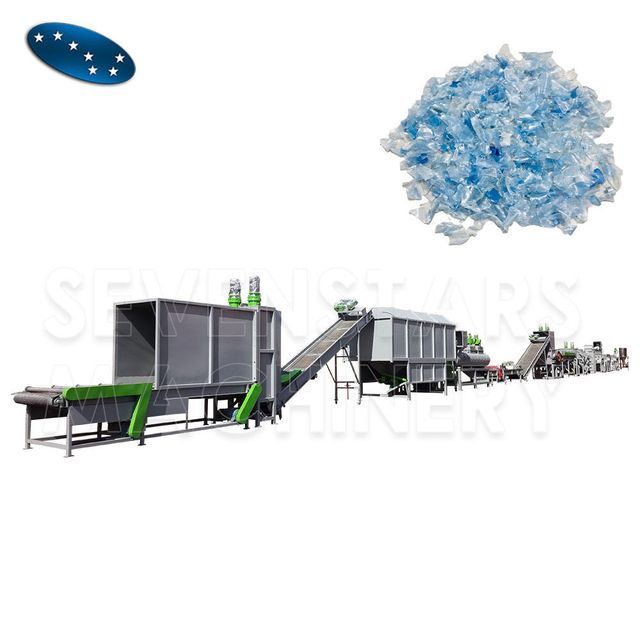

Sevenstars PET bottle recycling machine/plastic cleaning machine/plastic recycling equipment

Supplier: Zhangjiagang Sevenstars Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr cnsevenstarsc He
Price: $45000.00 / 1 - 1 sets
$35000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Other names:	PET bottle flake cleaning equipment	Mechanical test report:	if
Types of recycled plastic:	Waste PET bottles	Name:	Pet bottle recycling and cleaning line
Maximum production capacity (kg/h):	3000	Supply capacity:	10 sets per month
Finished goods:	Clean plastic sheet	Dimensions (lengthwidthheight):	400018003000
Final particle size of PET sheet:	16-20mm	Video outbound inspection:	if
Core components:	PLC, engine, bearing, motor, pressure vessel, gear, pump	Core component warranty:	1 year
Main selling points:	automatic	Plastic type:	pet
PET sheet moisture:	less than 1%	brand:	seven stars
Health status:	new	Package preview:
Type of machine:	PET bottle cleaning line	Showroom location:	Egypt, Brazil, India, Russia, Thailand, South Korea, Chile, Algeria, South Africa, Ukraine
Power (kW):	75-250kW	Equipment List:	Pre-wash machine, dehydrator, rinse tank, hot air dryer, friction cleaning machine, label remover, hot washing tank
Production capacity (kg/hour):	800-2000	payment terms:	L/C, D/A, D/A, wire transfer
Warranty:	1 year	Certification:	EU CE certification
Processing materials:	Crushing-washing-drying	Packaging details:	Seaworthy packaging or wooden box packaging
Voltage:	380V 50HZ or customized	End uses of PET sheets:	PET long ribbon fiber
Automatic level:	automatic	application:	polyester bottle
Weight (tons):	15	Advantage:	efficiency
Place of origin:	Jiangsu, China	Applicable industries:	manufacturing plant

Product Description

Raw materials and formulations: Post-consumer PET bottles Warehouse/workshop: approximately 1,000 square meters, 7 meters high
Water supply: consumption: 6-7 tons/hour (but can be recycled

notes:

1) The water consumption of the production line depends on the installed components, the degree of contamination of the input material and the installed water filters and water treatment systems
2) To reduce water consumption, we recommend installing a water treatment device. By using a filter press, the wastewater load can be further reduced. The buyer should provide a water tank with a level gauge and water pump (we recommend a ground water tank) and valves.

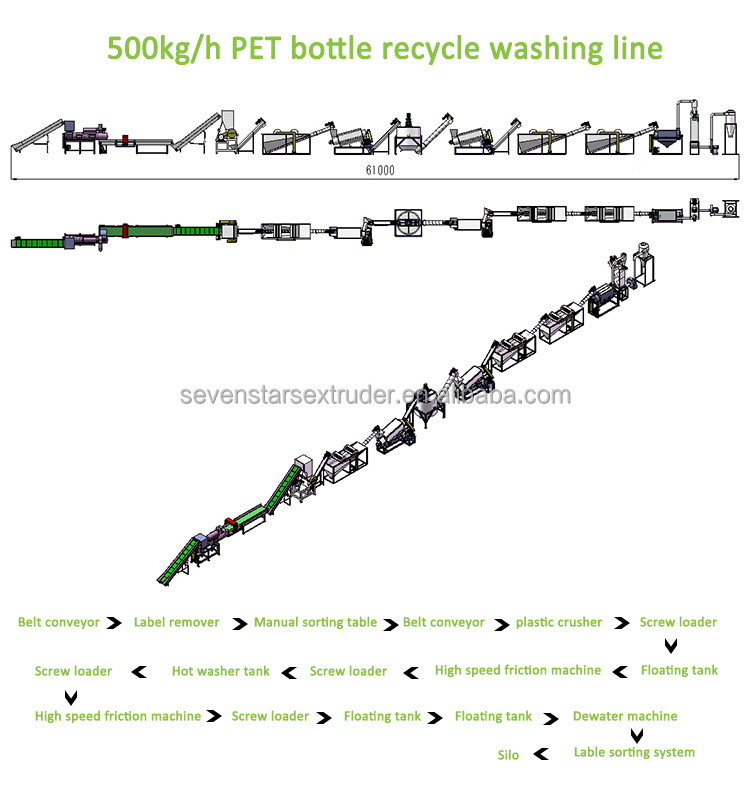

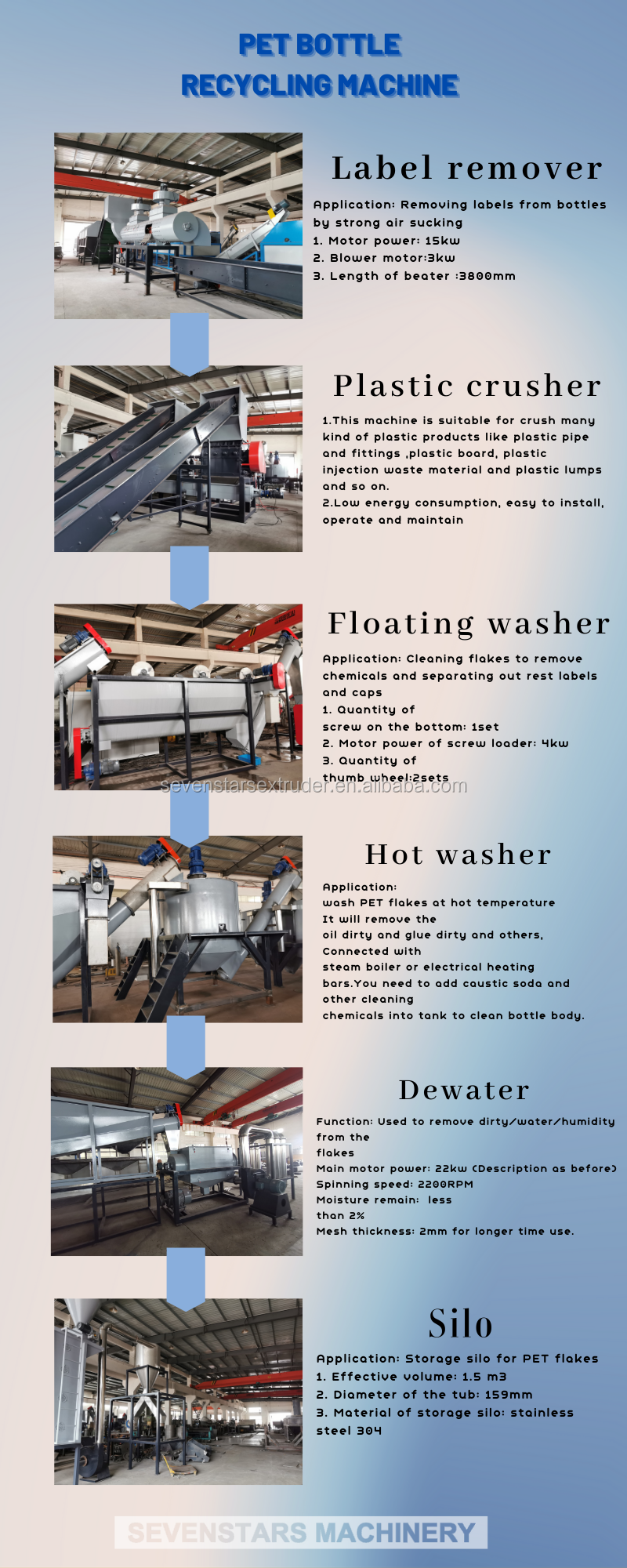

The PET recycling line has the following functions:

Trommel screening: removes most sand/mud/glass contaminants
Label removal: remove more than 95% of labels
Pre-wash machine results in very high quality food grade pet flakes
Sorting: sorting non-PET bottles and bottles of different colors as well as some labels
Wet grinding: PET bottles are ground into thin flakes using a water process.
Chip cleaning: Cleaning the crushed PET flakes
Separation: Automatically separate bottle caps
Hot washing: removes oil and glue
Dehydration: Dehydrate the washed PET flakes
Automatic bagging: bagging the end sheets

Specification

Model	Capacity (kg/hour)	Length(meter)	Way of working
PET300	300	25	automatic
PET500	500	25	automatic
PET1000	1000	35	automatic
PET1500	1500	35	automatic
PET2000	2000	40	automatic
PET3000	3000	50	automatic
PET4000	4000	65	automatic
PET5000	5000	80	automatic
PET6000	6000	90	automatic
