PET bottle recycling machine/plastic washing machine/plastic recycling plant

Supplier: Laizhou Xixin Machinery Co., Ltd.
Region: Shandong Province, China
Price: $36300.00 / 1 - 1 sets
$30900.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	5 sets per month	Dimensions (LWH):	based on capacity
port:	Qingdao, China	Electrical components:	upon request
product name:	PET bottle recycling cleaning plant	Core Components Warranty:	1 year
Health status:	new	Voltage:	custom made
Type of machine:	PET bottle washing line	Video external inspection:	if
brand:	hi new	Key words:	Pet Bottle Plastic Washing Machine
Machine Color:	customer choice	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Credit Card
Auto grade:	automatic	Plastic Type:	PET bottle
Manpower:	5-10 people	Machine material:	Stainless steel
cleaning method:	Friction wash, hot wash	Warranty:	1 year
Production capacity (kg/hour):	300 - 3000	Plastic Type:	pet
heating method:	Electricity, Steam or Source	Final product:	12--14mm clean and dry PET sheet
Applicable industries:	Manufacturing Plants, Energy & Mining, Others	Showroom location:	not any
application:	Pet bottle cleaning line	Weight (tons):	20
Core components:	motor	Equipment List:	Dehydrators, Floating Wash Tanks, Friction Washers, Label Separators, Label Removers, Hot Wash Tanks, Shredders
place of origin; place of origin:	China	Maximum production capacity (kg/hour):	3000kg/hour
Marketing Type:	New Products 2020	Packaging Details:	We usually pack the machine in a plywood box, we can also pack this machine according to customer's special request.
Power (kW):	based on capacity	Mechanical test report:	if
Main selling point:	competitive price

PET bottle recycling machine/plastic washing machine/plastic recycling plant

Product Description

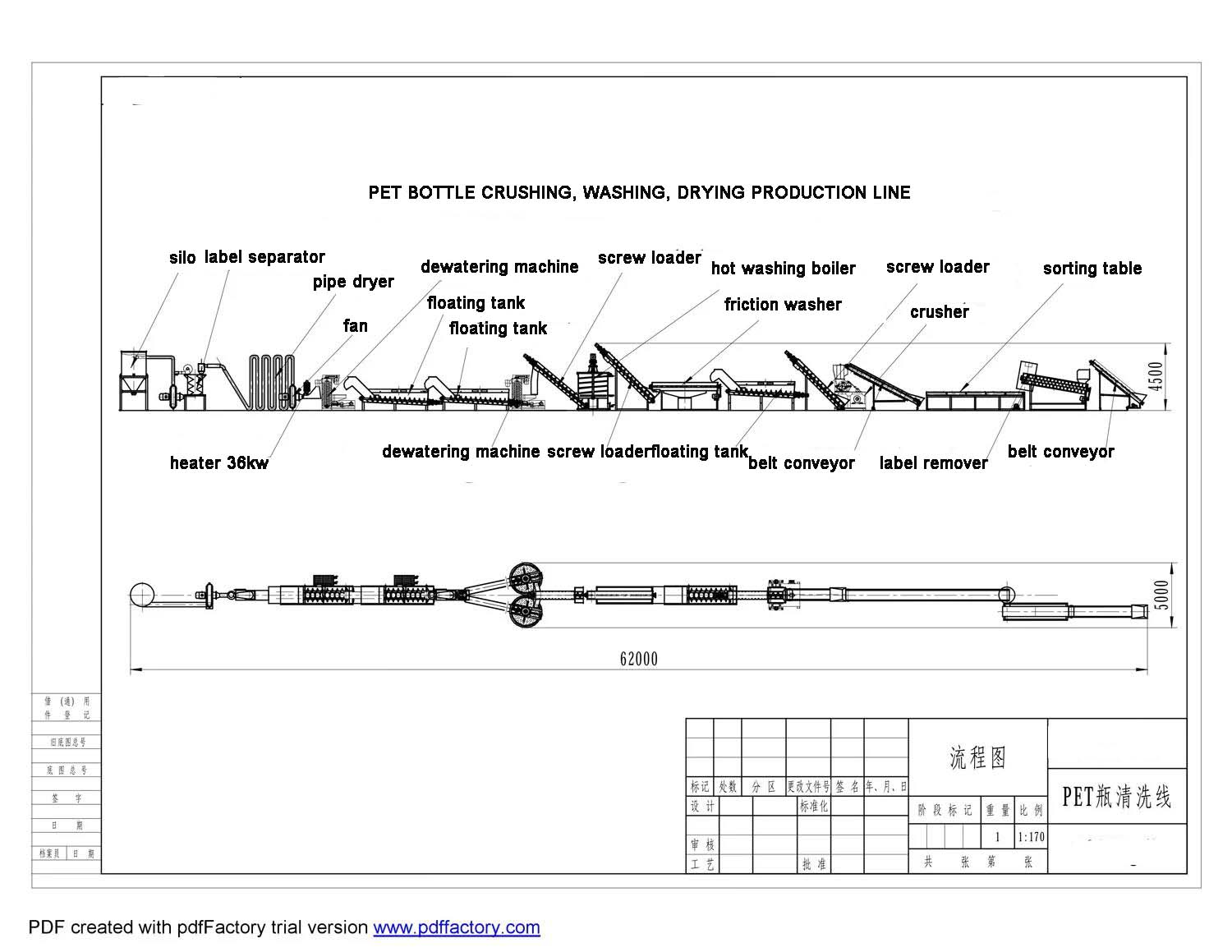

Process flow (standard system):

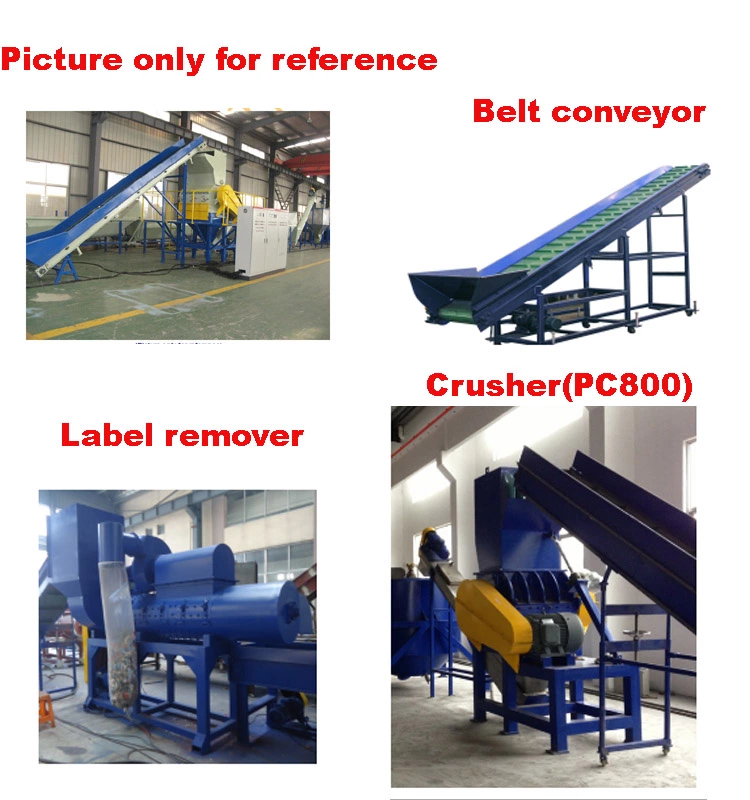

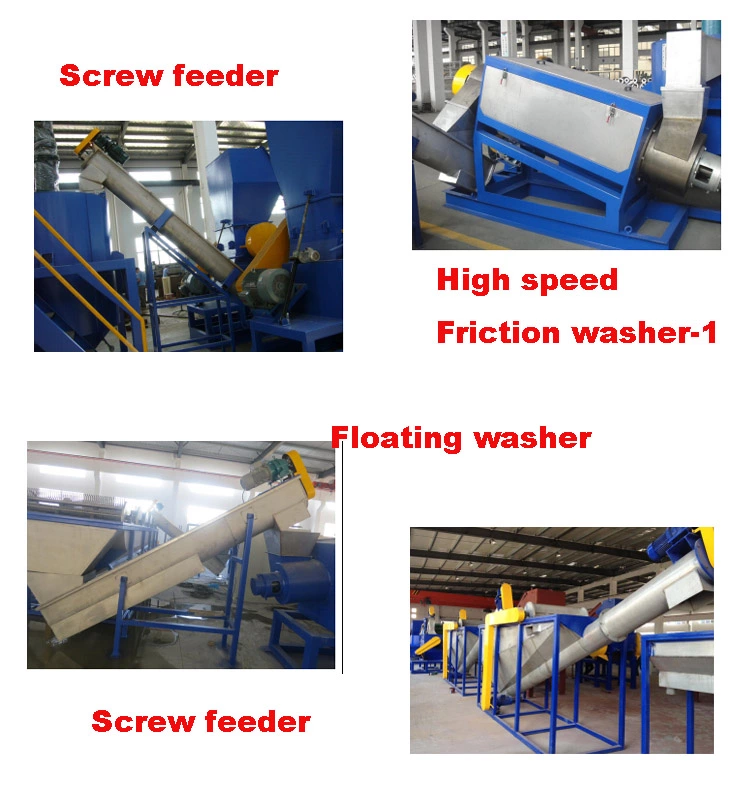

Belt Conveyor→Label Remover→Sorting Table→Belt Conveyor→Crusher→Screw Feeder→Floating Tank→Friction Washer→Screw Feeder→Hot Washing Boiler→Screw Feeder→Dehydrator→Floating Tank →Floating Tank→Dehydrator→Pipe Drying System→Twisted Label Separator→Storage Silo→Package of Finished Products
Machine photo:

plastic crusher
Function: crush the material into flakes

sink
Function: clean sheet; density separates dirt from sheet

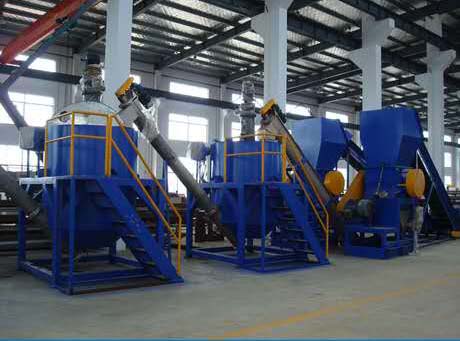

hot wash tank
Function: Wash with hot water and chemical water to remove glue and oil stains on the flakes

feature:
1. Automatic work, conveying materials, crushing, washing, drying and collecting.
2. Finished size: <16mm (can be customized)
3. Moisture content: <3%.
4. High efficiency, safe control and large capacity.
5. The final dust separator will remove the final label on the sheet to guarantee the PVC content.

Main technical data:

capacity	300 kg/h	500 kg/h	1000kg/hour	1500kh/h	2000kg/hour	3000kg/hour
manpower	3-4	5-6	7-8	9-10	10-12	13-14
Installed power	210kW	230kW	300kW	370kW	450kW	500kW
water power	2-3 tons/hour	3-4 tons/hour	5-6 tons/hour	7-8 tons/hour	9-10 tons/hour	11-12 tons/hour

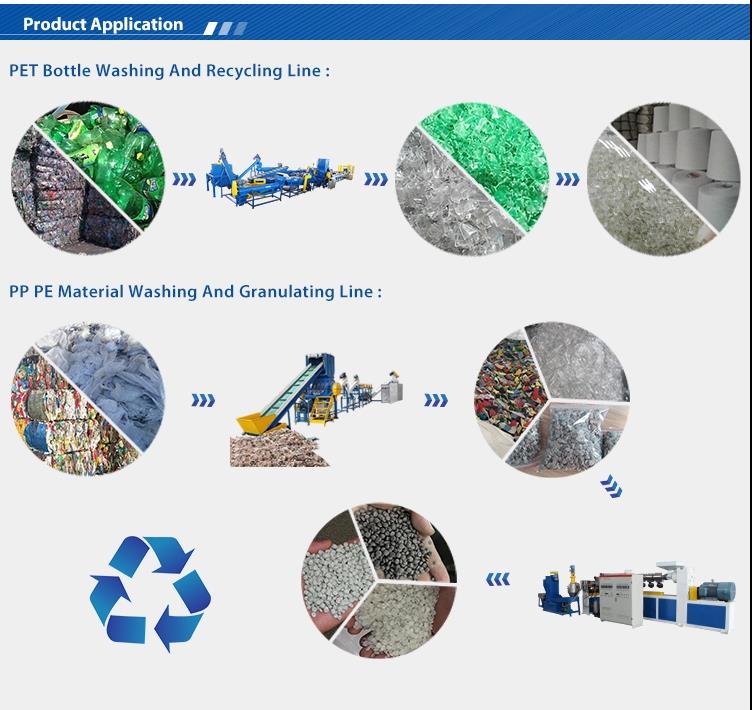

Applications
