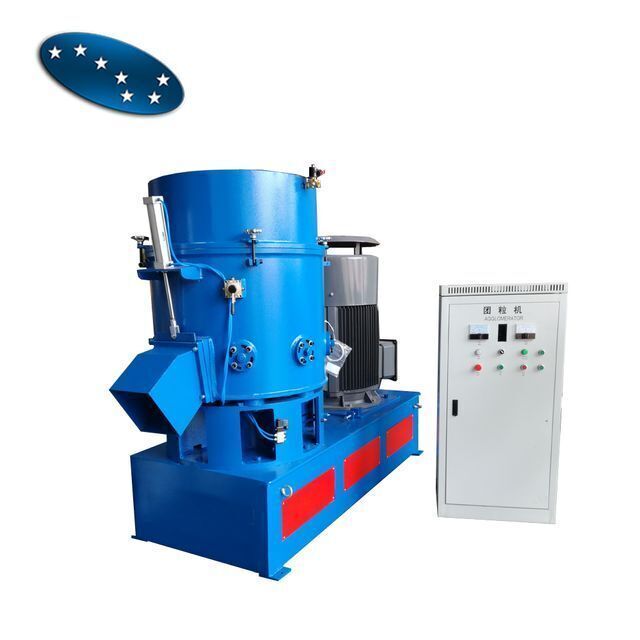

pe film plastic agglomerator machine/densifier machine/PP bag densifier details
Series:GHX series;After-sales Service Provided:Video technical support,Free spare parts,Field maintenance and repair service,Online support;
Core Components:Engine,Bearing,Motor;Packaging Detail:Wooden box packing;
Supply Ability:10 Sets per Month;VOLTAGE:Customized;
Output:100-600kg/hr;Dimension(L*W*H):1800*1500*1800mm;
Electrical part:International famous brand;Certification:CE&ISO;
Showroom Location:Egypt,Italy,Mexico,Russia,Morocco,Argentina,Colombia,Algeria,Romania,Ukraine;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Printing Shops,Construction works ,Advertising Company;
Warranty:2 years;Video outgoing-inspection:Provided;
Package Preview:;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Local Service Location:Egypt,United Kingdom,Pakistan,Mexico,Russia,Australia,Morocco,Argentina,Colombia,Algeria,Romania,Ukraine;Machine weight:200-500kg;
Port:Shanghai seaport or Ningbo seaport;Final product:Semi-plasticized plastic granule;
Machinery Test Report:Provided;Warranty of core components:2 years;
Machine color:Customized;Place of Origin:China;
Marketing Type:Hot Product 2020;Warranty time:2 years;
Brand Name:Sevenstars machinery;Condition:New;
Power:37-132kw;Key Selling Points:High Productivity;
Payment Terms:L/C,T/T,Western Union;Suitable Material:PVC/PE/PS/PP/PET;

pe film plastic agglomerator machine/densifier machine/PP bag densifier



Product Description



GHX Agglomerator makes waste plastic films and materials with less than 2mm wall thickness materials into granules. It is suitable for soft PVC, HDPE,LDPE, soft PE,PS, PP and other thermoplastic wastes and films and froth PS wastes. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is
sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing. The particles can be used for extrusion or injection mould machine directly. Also can be further pelletized for some advanced requirements.

We have the certification ISO9001:2000. So the quality of our products are reliable.

Technical parameter



Model Motor power Output
GHL100 37KW 100KG/HR
GHX200 55KW 150KG/HR
GHX300 75KW 250KG/HR
GHX500 90KW 350K/HR
GHX800 110KW 550KG/HR
