HUAYIN mini small pyrolysis of waste tire to fuel oil reactor Tyre pyrolysis machine

Product details
Cooling method:Water Recycling Cooling;Supply Ability:200 Set/Sets per Year;
Function:mini pyrolisis plant;Payment Terms:L/C,T/T;
Package Preview:;After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Equipment Capacity:10kg;Raw material:Waste Rubber Waste Tire;
Port:qingdao/tianjin;Packaging Detail:Packaged into two wooden boxes;
Heating fuel:Coal Wood Pyrolysis Oil;Machine Type:High Automatic;
Applicable Industries:waste pyrolysis;Final product:Fuel oil ,carbon black,syngas;
Video outgoing-inspection:Provided;After Warranty Service:Video technical support,Online support,Field maintenance and repair service;
Brand Name:Huayin;Warranty of core components:1 Year;
Showroom Location:None;Core Components:pyrolysis reactor;
Warranty:1 Year;Certification:ce,ISO;
Marketing Type:New Product 2020;Machinery Test Report:Provided;
Application:mini pyrolysis of plastic waste;Weight (KG):600 KG;
Local Service Location:None;Key Selling Points:Multifunctional;
Running Type:Low Speed Rotating;Condition:New;
Raw material of reactor:Q245R &Q345R boiler plate/SS;Structural form:Horizontial Rotation;

HAUYIN mini plant small pyrolysis of waste tire/ plastic recycling

to fuel oil reactor machine







Professional development makes the waste a great treasure!!!



Huayin lab boasts many complicate and cutting-edge apparatus and machines, scaling machines for testing your raw material to oil feasibility, oil quality, etc. Whenever we have a new idea or clients want to process some other material, we would use our lab machines or mini testing machines to try this out.





Customer sites











 Different raw material has different oil ratio as below

The waste pyrolysis plant can process various kinds of waste plastic including pp , pe , ps , abs , rubber products ,tires to fuel oil , carbon black , steel wire.







Output oil product



From waste tire pyrolysis plant, 4 kinds of products can be obtained: fuel oil, catbon black, steel wire, and incondensable gas. Fuel oil is widely used in industries, such as steel factory, heavy oil generator, cement factory, and boiler heating etc. Carbon black can be made into pellets for making new rubber products. Steel wire could be sold to the recycle station or steel mill for remelting. The incondensable gas is recycled to heat the pyrolysis reactor, saving energy.

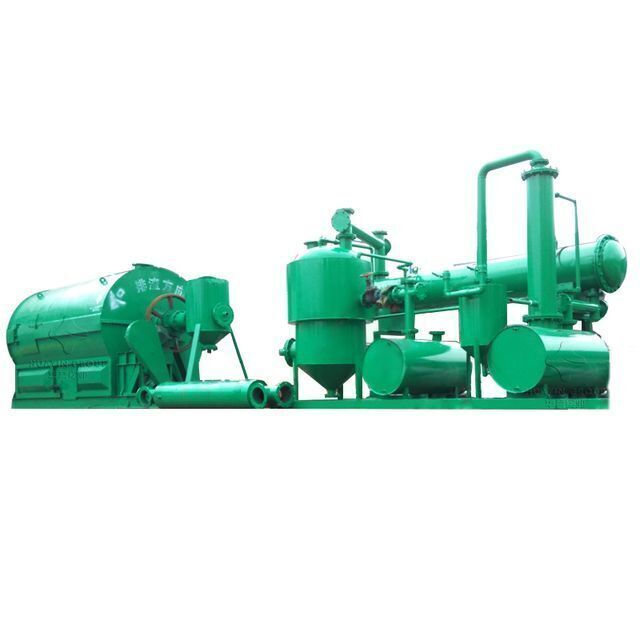

 Below is the smallest pyrolysis machine we produce:

1. Reactor: Adopt automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.

2. Waste Gas Treatment: The extra gas will be recycled to the furnace for second burning thus saving your heating fuel , and protect the environment.

3.  The mini type pyrolysis plant is mainly used for doing test or demonstrating .

4. Security:   Anti-blocking device and have pressure gauges, alarms and safety valves to ensure the safety

5. The whole set Just need Very Small landing area , that can be installed in office.







Working process of the waste pyrolysis plant



 1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor when the temperature reaches nearly 250 degree Celsius, waste tyre will be transferred to oil gas.
2. The oil gas will be cooled by condenser to liquid oilthen collected by oil tank.
3. The exhaust gas which can not be cooled to liquid oilwill be recycled to heat the reactor. Smoke produced during processing can achieve national emission standard through dual desulfurization and dusting removal device.
4. After oil producing finished , give 3 hours for cooling the reactor,after thatcarbon black will be discharged automatically.



 Specification



Model

HY-05

HY-08

HY-10

HY-12

Raw material

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Waste rubbers/tyres/plastic

Daily Handling capacity

5 tons

8 tons

10 tons

12 tons

Working pressure

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Main engine rotating speed

0.4R /min

0.4R /min

0.4R /min

0.4R /min

Power

15KWH

15KWH

15KWH

15KWH

Cooling Mode

Water

Water

Water

Water

Floor Area

200m2

250m2

300m2

300m2

Heating Mode

Direct

Direct

Direct

Direct

Oil Yield

45%-50%

45%-50%

45%-50%

45%-50%

Noise dB (A)

<=85

<=85

<=85

<=85

Machine dimension(mm)

D2200*L5000

D2200*L6600

D2600*L6600

D2800*L6600

Working Mode

Intermittence

Intermittence

Intermittence

Intermittence

 Our service



1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty-The warranty period  is 1 year.

3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.





our equipment has been exported to over 70 countries including Romania, Hungary, Turkey, Slovakia,Ecuador, Guatemala, Haiti, Mexico, Peru,Canada , USA,Jordan, UAE, Lebanon, Kuwait, Italian , Chile , Poland , England , Thailand, Greece, Mexico , Benin , Indonesia , India , Singapore ,Russia etc.



Main features of HUAYIN WASTE PYROLYSIS PLANT



Security:

1. Adopting automatic submerged-arc welding technology and all of the weldings will be detected by the ultrasonic nondestructive testing method.

2.Vacuum system ensures the whole line working well. temperature guages ,pressure guages ,auto alarm etc. to ensure the safety.

Environmental protection

1) The flue gas and sulphur will be purified and cooled by dust and sulphur removal device.

2) The procedure to remove carbon black is working under closed situation to avoid pollution.

3) The syngas will be recycled to the furnace for second burning ,avoid pollution.

Long service life

1. High temperature and pressure resistant raw material Q245R boiler plate with 16mm/18mm.

2. All cutting, rolling and welding works are finished by automatic machines.

Energy saving

1. Well sealing for heating system, no gas leak and saving fuel.

2. The exhaust gas will be recycled for reactor heating.



Why choose us



1. Qualified manufacturer and equipment with ISO and CE certificate;

2. Professional consulting team for offering free quote, market analysis and project guidance;

3. Technical department for providing technical support, project design and layout drawing;

4. Skillful engineering team for field installation, commissioning and operation training;



Packaging & Shipping











About us





Xinxiang Huayin Renewable Energy Equipment Co., Ltd is located in Xinxiang City, Henan Province, which is specialized in manufacturing waste tires/plastics to fuel oil pyrolysis machine and waste oil to diesel distillation machine since 1993. we have We have more than 2000 square meters running demo plant for customers' visitation and learning. our plants have been exported to over 70 countries around the world .







FAQ



1. What kind of Fuels can be used for heating the reactor?

Fuel can be Coal, charcoal, wood, fuel gas and fuel oil.

2. Does your dedusting system can reach to National standard ?

Yes , our plant have been exported to US , Finland , Canada , we have also get CE ,ISO certificates for our plant.

3: How To Choose A Suitable Tire Pyrolysis Oil Line?

Please tell us your capacity ,input raw material and what kind of fuel oil do you want to get , pyrolysis fuel oil or diesel oil . After informed that , we will recommend you the most suitable plan.





For more details , welcome send inquiry !
