NBC-350F China Power Source CNC Kit Plasma Welding Machine
- 800.00 piece
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining; | Core Components: | Motor; |
| Type: | NBC Welding; | Port: | shanghai,ningbo,shenzhen,qingdao; |
| Weight (KG): | 30; | Input Voltage: | AC 220V/380V; |
| Local Service Location: | None; | Warranty: | 1 Year; |
| Name: | NBC-350F Plasma Welding Machine; | Color: | NBC Welding; |
| Video outgoing-inspection: | Provided; | Usage: | Welding Metal; |
| Supply Ability: | 100 Piece/Pieces per Month; | Marketing Type: | New Product 2020; |
| Packing: | Wooden Case; | Place of Origin: | China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | After-sales Service Provided: | Online support,Video technical support; |
| Machinery Test Report: | Provided; | Showroom Location: | None; |
| Feature: | Inverter Plasma Cutting Machine; | Key Selling Points: | Long service life; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Packaging Detail: | wooden case Wholesale Sheet Metal Machinery CNC Laser Cutter Machine; |
| Voltage: | 220v/380v; | Application: | Sheet Metal Industry; |
| Dimensions: | 595*306*530mm; | Condition: | New; |
| Warranty of core components: | 1 Year; |

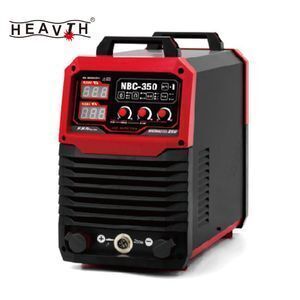

NBC-350F CNC Plasma Welding Machine Plasma Welding Source
1.Using phase-shifted full-bridge inverter main circuit, the whole machine has high reliability;
2.Excellent voltage and current dual waveform control circuit, welding spatter and small weld seam are beautifully formed;
3.Easy to operate, can choose to extend the control cable, suitable for welding operations in narrow and higher places;
4.Digital meter displays voltage and current, humanized design, no need for cumbersome external welding machine specification settings.
5.Unique AFTT ball-removing circuit, there is no residual small ball at the end of the welding machine.
6.It is equipped with a wire feeding structure with a welding wire straightener, which has superior wire feeding performance and can ensure the stability of the arc even when the welding torch is excessively bent.
|
Model |
NBC-350F |
|
Input power |
AC220V/380V±15% |
|
Input frequency |
50/60 |
|
No-load voltage |
65V |
|
Current adjustment range |
20-350A |
|
Thrust current adjustment range |
0-100 |
|
Rated load duration |
60% |
|
Load loss |
80W |
|
Effectiveness |
85% |
|
Power factor |
0.93 |
|
Insulation class |
F |
|
Enclosure rate class |
IP21S |
|
Dimension |
595*306*530mm |
|
Weight |
26.4KG |
