Linear Shaft Linear Slide Rail HIWIN HG30 CNC Linear Guide Rail

Supplier: Zhejiang Shuntong Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Qiang Li
Price: $5.58 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Carton case;	Port:	Ningbo/Wenzhou;
Supply Ability:	200 Piece/Pieces per Week linear guide rail;	Model:	HGW30CC / HGW30HC;
Brand Name:	SNTOOM;	Machinery Test Report:	Provided;
Place of Origin:	Zhejiang China;	Fixing bolt size of slide rail:	M8*25;
Video outgoing-inspection:	Not Available;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Other;
Local Service Location:	None;	Warranty:	1.5 years;
Basic static load rating:	83.06Co(kN);	After Warranty Service:	Online support;
Material:	Steel;	Slide rail weight:	4.47kg/m;
Showroom Location:	None;	Product name:	HGW series Linear guide rail;
Payment Terms:	L/C,Western Union,T/T,MoneyGram;	Bearing block weight:	1.09kg;
Model Number:	HGW30CC / HGW30HC;	Marketing Type:	New Product 2020;
Condition:	New;	Warranty of core components:	1 Year;
Basic dynamic load rating:	38.74C(kN);	Core Components:	Bearing block,Slide rail;

HGW series Linear Guide Rail

Application

Used in Precision instrument,low noise machine,automobile,motorcycle,and the general machinery and so on,it is the most widely used bearing type in the machinery industry.

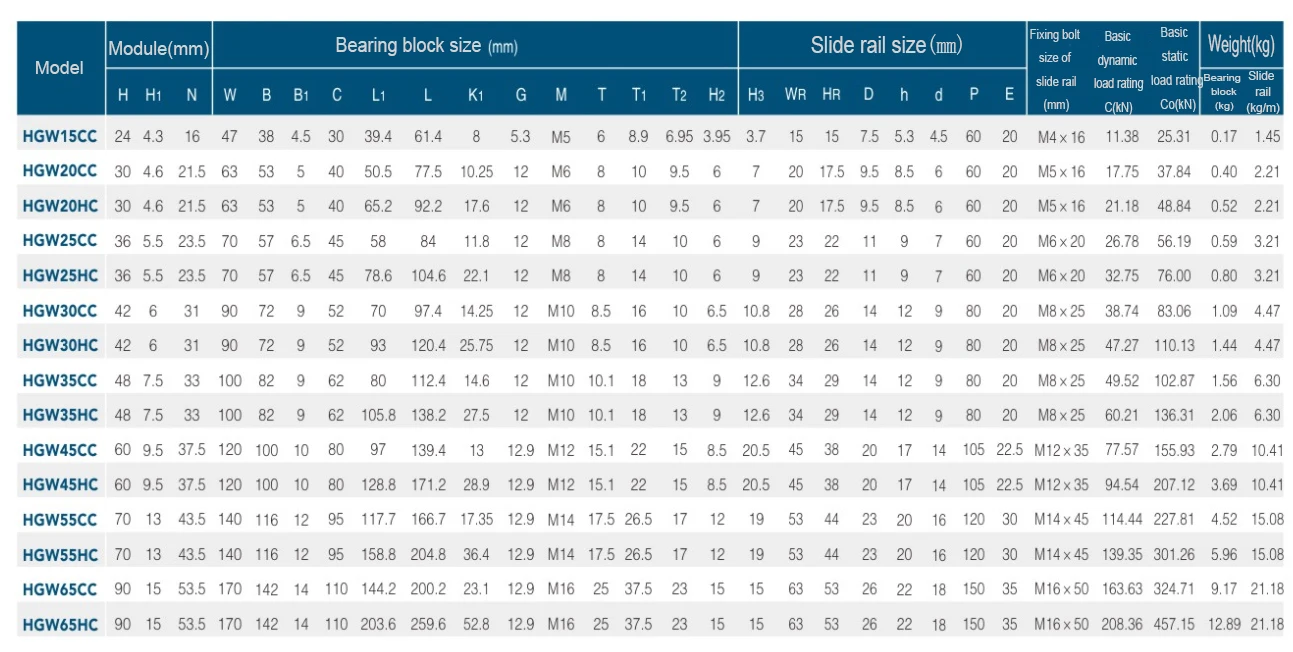

Parameters

Product name	HGW series linear guide rail
Brand	SNTOOM / OEM,ODM
Moodel No.	HGW30CC / HGW30HC
Ring material	Steel
Cage material	Steel
Accurancy grade	C,H,P ,SP, UP
Preload code	Z0, ZA, ZB
Guide length	90mm
Weight	5.55kg
