Compact Ball Screw 12v 24v nema 17 nema 23 nema 34 Stepper Motor Linear Moton Guide Way Rail Module Linear Guide
- 50.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Detail: | Ball screw stepper motor use export carton, pallet or according to customer's request; | Supply Ability: | 10000 Piece/Pieces per Month; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Ball Screw Diameter: | 12/16 mm; |
| Local Service Location: | None; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Automatic Industry; |
| Package Preview: | ; | Ball screw lead: | 4/5/8/10/16 mm; |
| Payment Terms: | T/T,Western Union; | Port: | Shanghai; |
| Condition: | New; | Function: | Linear Motion; |
| Showroom Location: | None; | Brand Name: | Bobong; |
| Model Number: | HB; | Customized service: | Available; |
| Place of Origin: | Jiangsu China; | Usage: | Automatic Industry; |
| Motor size: | NEMA 11/17/23/24/34; | Material: | Aluminum+stainless Steel; |
| Warranty: | 1.5 years; |
Product Description

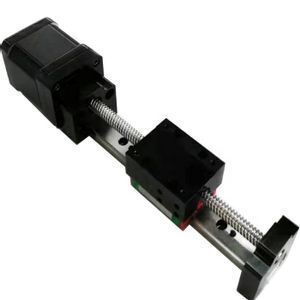

Lead screw Stepper Motor Linear Guide Module
Reference Datasheet
| Step angle | 1.8±5% ° / STEP |
| Rated voltage | 3.4 V |
| Current | 1.7 A/PHASE |
| Resistance | 2.0±10% Ω/PHASE |
| Inductance | 3.0±20% mH/PHASE |
| Holding torque | 3.6 kg.cm |
| Insulation clasee | B |
| Lead screw diameter | 8 mm |
| Lead screw lead | 8 mm |
| Starts | 4 |
Please contact BOHONG MOTOR for custom products.
Application:
Linear actuators
Please consult your authorized sales representative for custom specifications.
Click the pictures below↓ to access content.
Packaging & Shipping
Company Information
Contact us
To: Yi Fan
Tel: +8613813569915
Add: Tiaobantou No.81 Zhengxin Village Committee Lucheng Street Qishuyan District Chouzhou City Jiangsu Province
