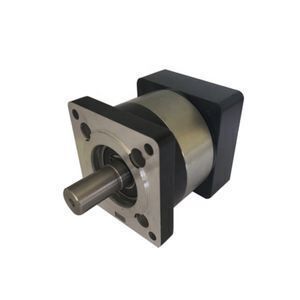

One Stage Gear Ratio 4:1 5:1 10:1 Nema 34 Stepper Motor Geared Speed Reducer Planetary Gearbox
- 31.62 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Stopping Torque: | Three times the rated output torque; | Frame Size: | nema34, 86mm; |
| Input Speed: | 4000-8000rpm; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Farms,Home Use,Construction works ,Energy & Mining,Automatic industry; |
| IP grade: | IP 56; | Function: | Speed Reducer; |
| Port: | Shanghai; | Payment Terms: | T/T,Western Union; |
| Brand Name: | Bohong; | Gearing Arrangement: | Planetary; |
| Output Speed: | 400-2000rpm; | Noise level: | ≤58 dB; |
| Package Preview: | ; | Gear Ratio: | 10:1/5:1/4:1; |
| Efficiency: | 90-95%; | Output Torque: | 40NM/50NM; |
| Service life: | 20000 h; | Place of Origin: | China; |
| Lubricant: | Synthetic; | Supply Ability: | 1000000 Piece/Pieces per Year; |
| Packaging Detail: | Gearboxes use export carton, pallet or according to customer's request; | Backlash: | ≤10-15 arcmin; |
Product Description
Technique Parameter
86 planetary reducer
| Item | One stage planetary gearbox |
| Gear ratio | 4 5 10 |
| Rated output torque | 50 50 40 |
| Stopping torque | Two times the rated output torque |
| Rated input speed | 4000 RPM |
| Max input speed | 8000 RPM |
| Transmission efficiency | 96% |
| Backlash | ≤15 ARCMIN |
| Noise level | ≤58 dB |
| Lubrication | Synthetic grease |
| Service life | 20000H |
| Body length | 80 MM |
| Weight | 2 KG |
| IP grade | IP56 |

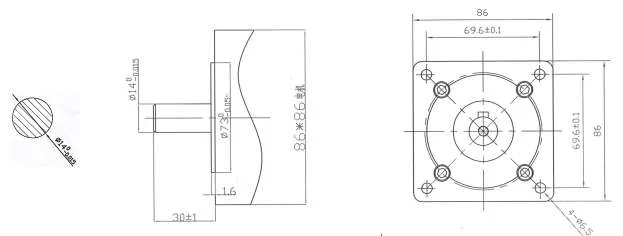

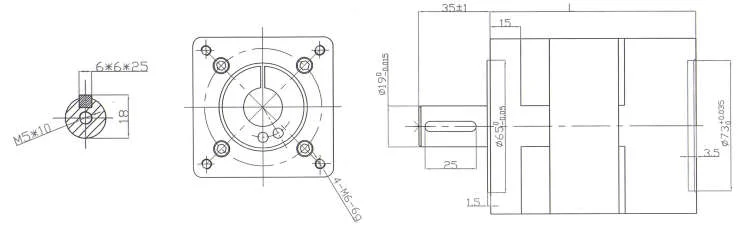

Dimensions
86 precision planetary reducer
| Item | One stage planetary gearbox |
| Gear ratio | 4 5 10 |
| Rated output torque | 50 50 40 |
| Stopping torque | Two times the rated output torque |
| Rated input speed | 4000 RPM |
| Max input speed | 8000 RPM |
| Transmission efficiency | 96% |
| Backlash | ≤10 ARCMIN |
| Noise level | ≤58 dB |
| Lubrication | Synthetic grease |
| Service life | 20000H |
| Body length | 101 MM |
| Weight | 2.3KG |
| IP grade | IP56 |

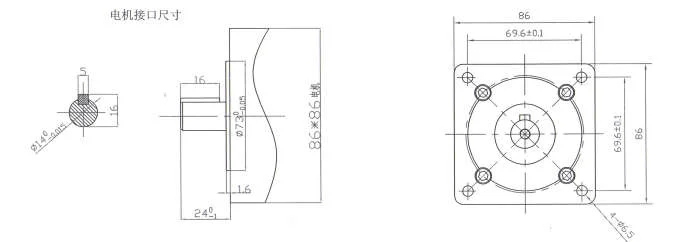

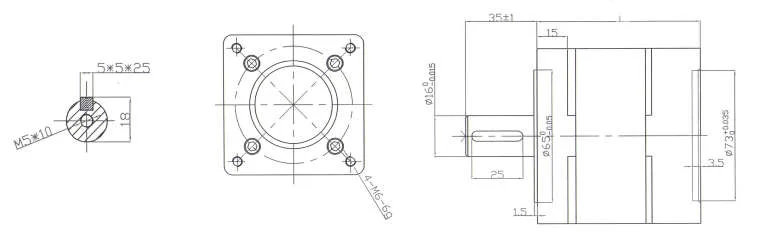

Dimensions
Please contact us for detail info & custom solutions.
