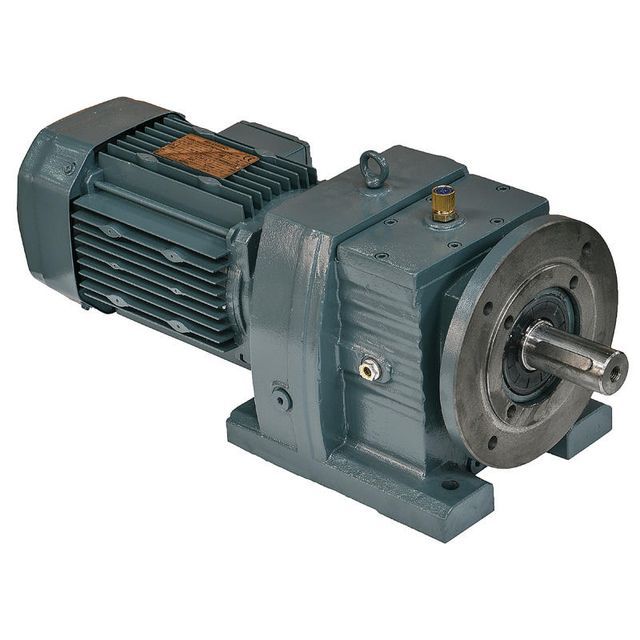

Motors with geared motors for conveyors
- 20.00 set
Registered Supplier
Direct Contact
Inquiry via Message

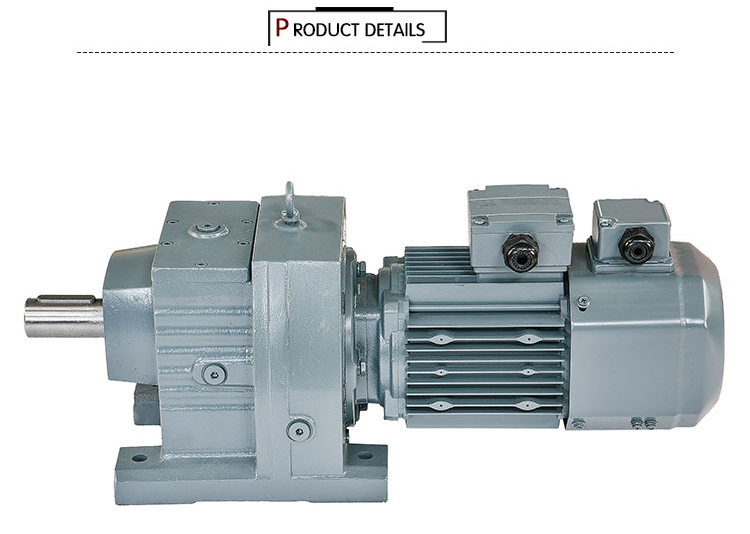

Product Details
| Warranty: | 1 year | Weight (kg): | 120 kg |
| Output torque: | Up to 28000Nm | transmission: | Spiral |
| Applicable industries: | Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies | port: | Ningbo or Shanghai |
| Supply capacity: | 30000 sets per month | Package preview: | |
| Input speed: | Up to 2000rpm | output speed: | 0.1~560rpm |
| payment terms: | L/C, D/P, T/T | Customization support: | OEM,ODM,OBM |
| brand: | flying knight | Packaging Details: | Standard export carton and plywood pallet packing. |
| Origin: | Zhejiang, China |
Product overview
product specification

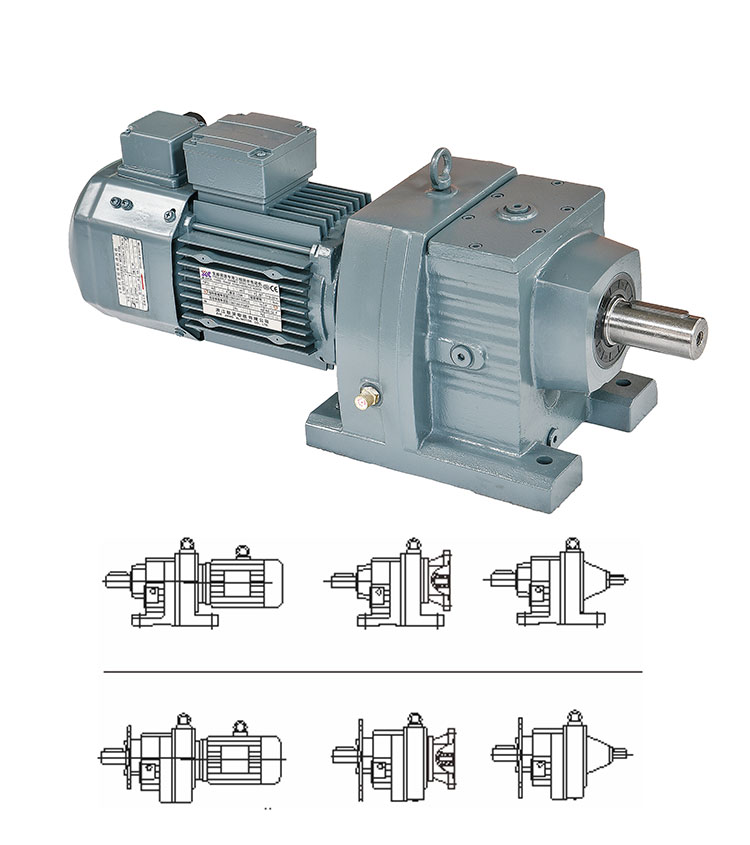

type | RC series helical gear motor |
Model | RC37, RC47, RC57, RC67, RC77, RC87, RC97, RC107, RC137, RC147, RC167, RC187 |
ratio | 5 ~ 186 |
color | RAL5010 gentian blue/ RAL7031 blue gray/ customer request |

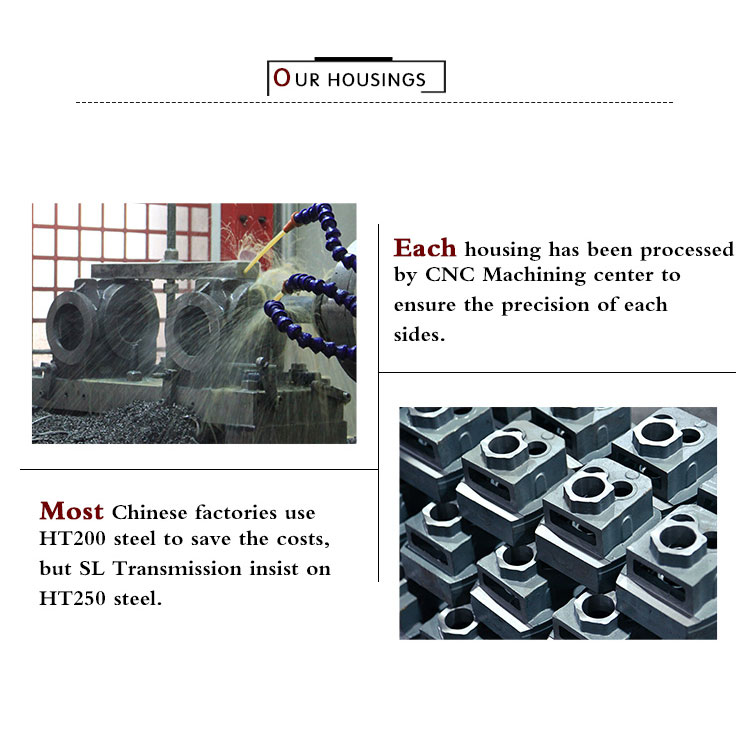

Material | Shell: HT250 high-strength cast iron |

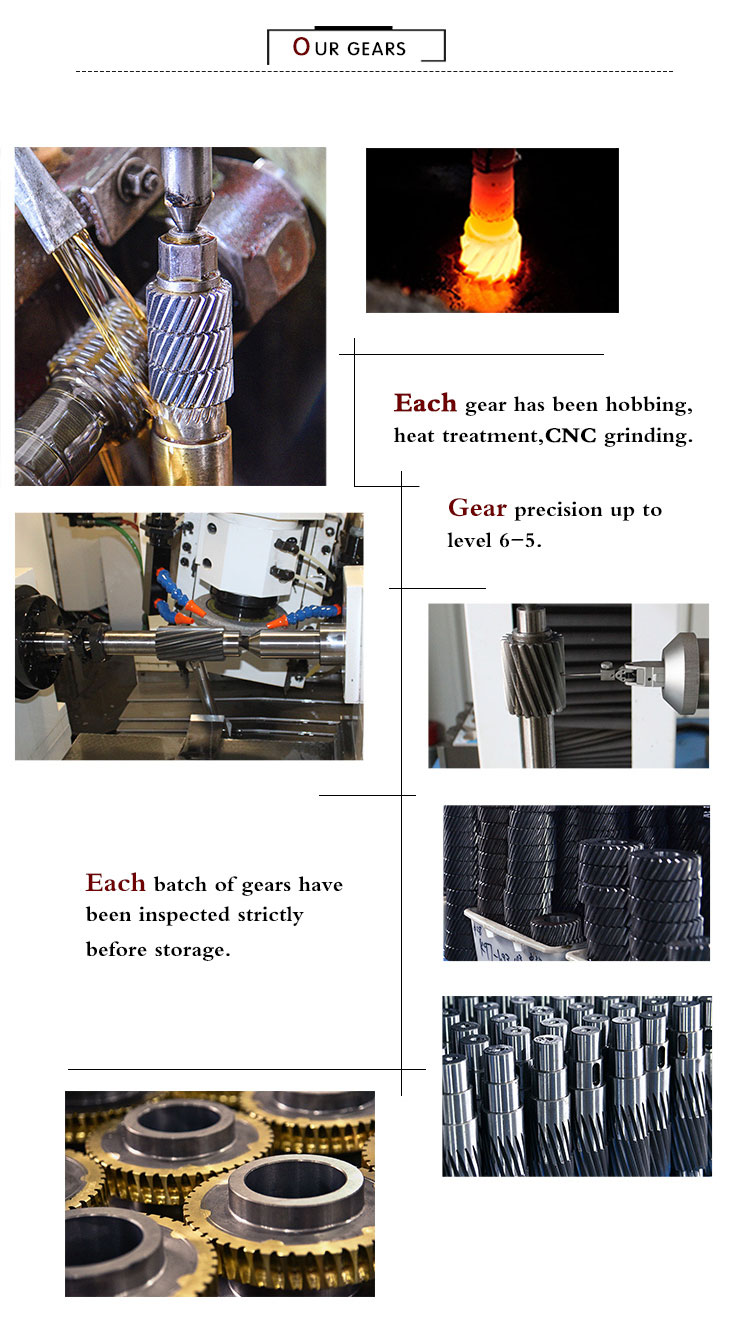

Material | Gear: 20CrMnTiH alloy steel |
Input/output shaft: 42CrMo alloy steel | |
bearing | LYC, HRB, NSK or other brands |
seal | NAK or other brands |
Gear machining accuracy | Precision grinding, grade 6-5 |
lubricating oil | National standard L-CKC220-460, Shell Omala220-460 |
Warranty | 1 year |
Package | Fumigation wooden box |

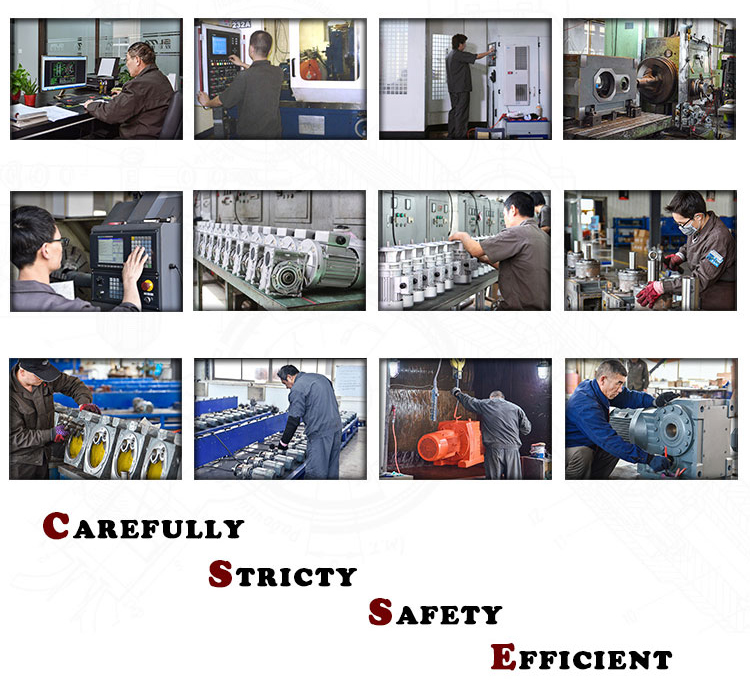

our staff
