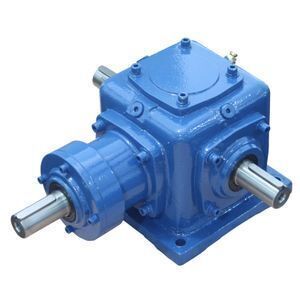

SLTM agricultural gearbox
-
Supplier: Zhejiang Shuanglian Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Harry Shao -
Price: $20.00 /set -
Min. Order: 1 set
Product details
| Place of Origin: | China; | Output Torque: | 1-8000; |
| Packaging Detail: | wooden boxes; | Supply Ability: | 30000 Set/Sets per Month; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Input Speed: | 1-3000; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company; | Brand Name: | SLTM; |
| Gearing Arrangement: | Bevel / Miter; | series: | TC; |
| Port: | Ningbo or Shanghai; | Output Speed: | 1-3000; |
TC series
| Housing material | HT250 high-strength cast iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 98% |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40℃ |
| Temp. rise (Oil)(MAX) | 50℃ |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | China Top brand HRB,LYC,ZWZ or other brands requested, NSK….. |
| Brand of oil seal | NAK--- Taiwan or other brands requested |
