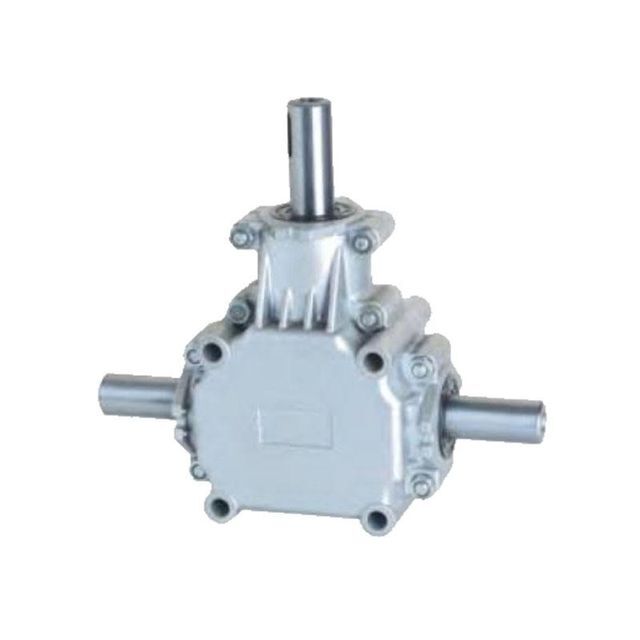

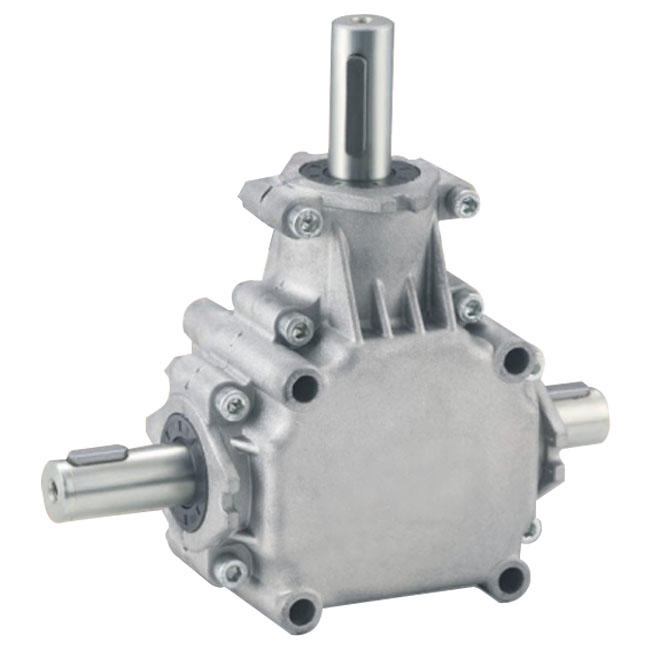

Aluminum Box 540rpm Ratio 1 1 90 Degree PTO Transmission Miter Bevel Fertilizer Agriculture Planter Gear Box

Supplier: Hangzhou Ever-Power Transmission Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jiang Liujun
Price: $8.00 / 10 - 99 pieces
$7.00 / 100 - 999 pieces
$6.00 / >=1000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

strength:	18HP	Warranty:	3 years
Supply capacity:	100000 pieces/month	Weight (kg):	7.6
teeth:	15/15	Applicable industries:	Manufacturing Plants, Mechanical Repair Shops, Farms, Home Use, Retail, Construction, Energy and Mining, Agricultural Machinery Gearboxes
Weight (net weight):	7.6Kg	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
ratio:	1:1 1:1.93 1:1.71 1:1.46	Input speed:	540
transmission:	Bevel / Miter	Custom Support:	OEM, ODM, OBM
Rated input:	540 rpm	Output speed:	180-1080
port:	Shanghai/Ningbo	Input/Output Description:	1 3/8 Z6 25 optical axis
place of origin; place of origin:	Zhejiang, China	Packaging Details:	wooden box
brand:	EP	Output torque:	0-10000NM
Module:	4.5

Product Description

When it comes time to replace your fertilizer applicator parts, such as hoppers or levers, rely on hzpt for quality and variety. Our fertilizer spreader gearbox is one of many agricultural machinery parts we ship. We offer fertilizer spreader gearboxes and stainless steel spreaders with blades. Choose hzpt for replacement sling parts without worry because hzpt puts customer service first.

thing	EP-RV022(X)	EP-RV010	EP-01-674	EPAM281-874	EP-RV012	EP-01-229
ratio	1:1/1.46:1/1:2.91	1:1/1:1.35/1:1.9/3.3:1	1.46:1	1:2.91	1:1	1:1
teeth	19/19 19/13 32/11	16/16 17/23 10/19 10/33	19/13	32/11	15/15	16/16
module	4.5/5.0/3.0	4.5/3.5/4.5/2.5	5	3.0	4.5	4.5
Power (HP)	15	15/13/15/3	twenty three	13	10	15
Rated input	540 rpm	540 rpm	540 rpm	540 rpm	540 rpm	540 rpm
Input/Output Description	1 3/8 Z6 / boresight	1 3/8 Z6 / boresight	1 3/8 Z6	1 3/8 Z6	1 3/8 Z6	1 3/8 Z6 / Φ25 boresight
Weight (net weight)	7KG	4KG	7.2KG	19KG	4KG	13KG

EP-RV022(X)

EP-RV010

EP-01-674

EP-01-229

EP-RV012

EPAM281-874

Click here to see more types!

The agricultural gearboxes we have are as follows:rotary lawn mower gearbox,PTO drive shaft gearbox,Salt spreader sprocket chain gearbox,Gearmotors for poultry and pigs for feeding systems,reverse gearbox,Harvester gearbox reverse bevel gearbox,Gearbox Grain Conveying Gearbox,sprocket gearbox,pesticide sprayer gearbox,potato harvester gearbox,oil pump gearbox,Grain harvester reversing gearbox,helical gearbox,Slasher gearbox,PTO reducer,feed mixer planetary gearbox,Side feed rake gear box,Hydraulic PTO drives gearbox speed increaser,Irrigation system center submersible gearbox,Irrigation system drive train gearbox,Irrigation system drive train motors,The power output gearbox of the power generator,HAY TEDDER gearbox,flail lawn mower gearbox,offset lawn mower gearbox,weeder gearbox,Vineyard Gearbox,The grab wood is driven by a worm gear,Rotary harrow gearbox,concrete mixer gearbox,Snow Plow Gear Box,Circular saws and serrated wheel boxes,Biogas generator set bevel gearbox,Lagoon Pump Gearbox,Dryer drive system gearbox,excavator drive gearbox,Cow cleaning gearbox,harvest fruit gearbox,Planetary gearboxes for hydraulically driven excavators,Gearbox multipliers for hydraulic pump systems,baler gearbox,hay chopper gearbox,Silo distribution system gearbox,automatic loading trailer transmission,fertilizer spreader gearbox,dust collector gearbox,Interpump gearboxes for PTO drives,trencher gearbox,rotary tiller gearbox,Rotary harrow gearbox,Electric film winder reel winch for poly film greenhouse ventilation,Livestock ventilation drive systems,Gearbox reducers for horticultural drive systems,Gearboxes and reducers for crop storage drive systems,Climate screen drive system gearbox reducer, sewage mixer, feed mixer gearbox, concrete mixer gearbox, tiller gearbox, generator gearbox, lawn mower gearbox, flail lawn mower gearbox, sprayer gear box,fertilizer spreader gearbox,manure spreader gearbox,rear hole excavator gearbox,rotary cutter gearbox,Greenhouse geared motor,Rotary tiller gearbox......

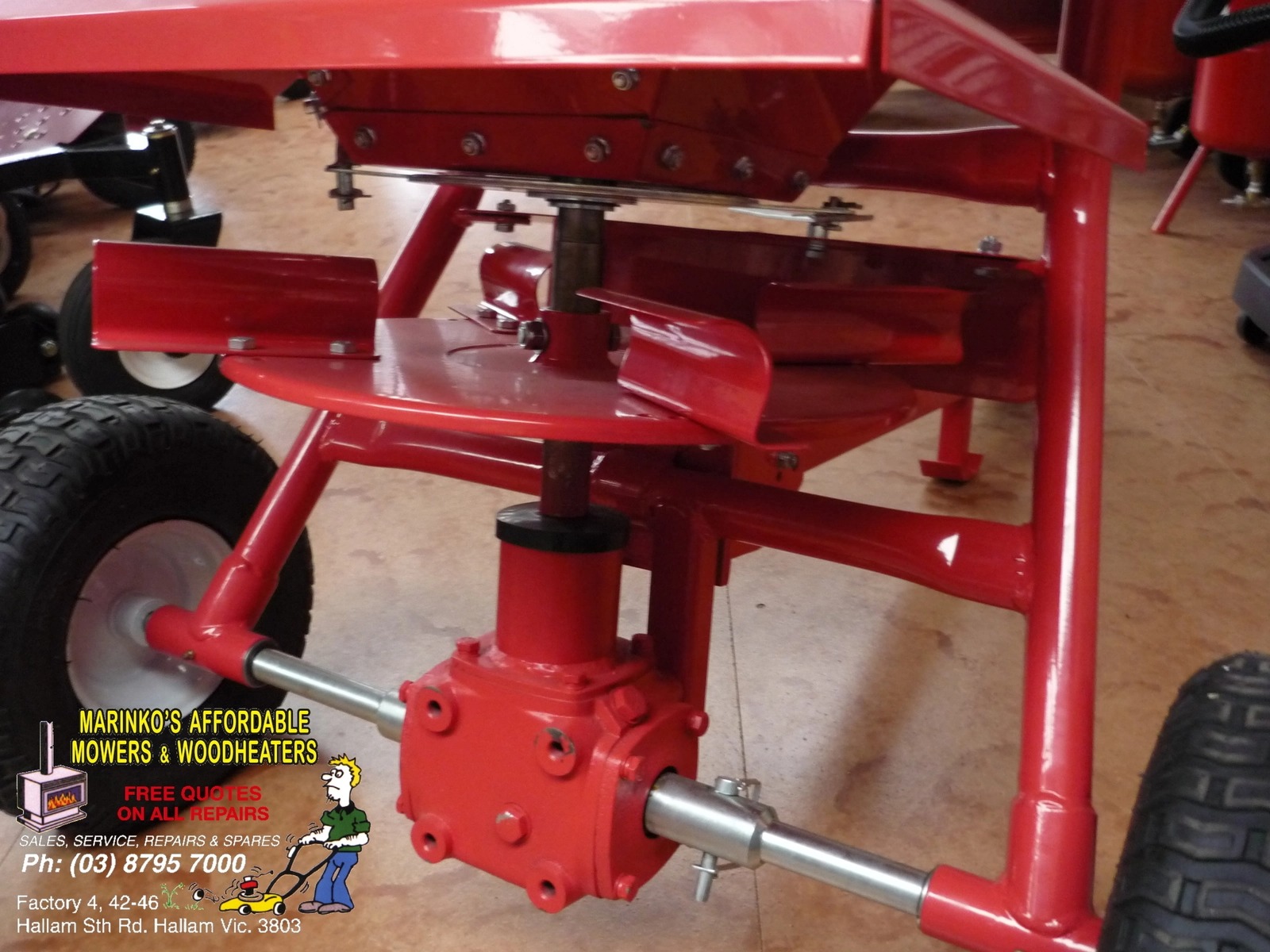

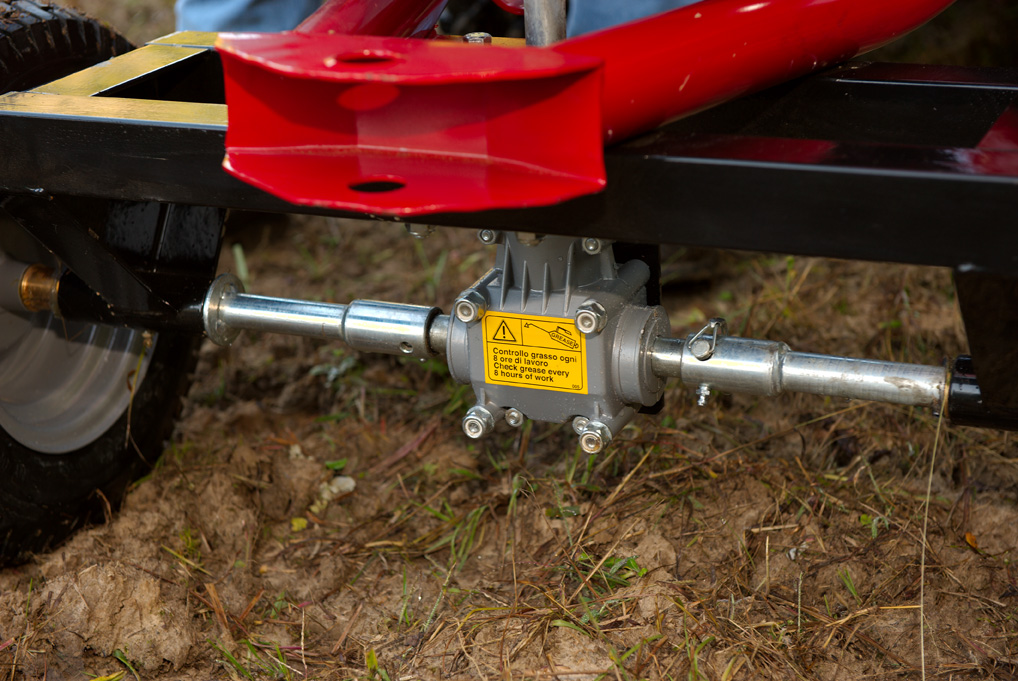

application

● Agricultural and lawn spreaders
● Fertilizer applicator
● Lime Spreader

● Garbage spreader

● manure spreader
● stone crusher
● salt spreader
● Sand spreader

● Planter
● Razor
● Side discharge spreader
● Top dressing mix spreader
● Vehicle spreader
