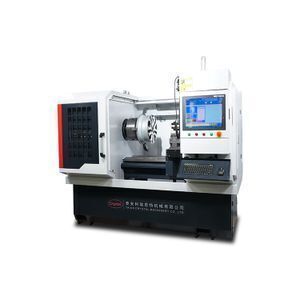

with full cover safety door WRM28H Diamond cut alloy machines/ alloy wheel rim repair machine

Supplier: Taian Crystal Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alvin Chen
Price: $15400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Crystal;	Structure:	Flat Bed Lathe;
Dimension(LWH):	215013901750mm;	Machining Capacity:	Heavy Duty;
Spindle speed:	150-2000rpm;	Type:	Horizontal;
Max. Spindle Speed (r.p.m):	2000;	Number of Axes:	2;
Travel (X Axis)(mm):	770;	Spindle Bore(mm):	60 m'm;
After-sales Service Provided:	Online support,Video technical support;	Automatic Grade:	Automatic;
Package Preview:	;	Machinery Test Report:	Provided;
Tool Post Stations:	4;	Warranty:	2 years;
Local Service Location:	Canada,Argentina;	Chuck size:	13inch;
CNC Control System:	PC;	Spindle Motor Power(kW):	7.5;
Applicable Industries:	Machinery Repair Shops,wheel repair;	Showroom Location:	Colombia;
Year:	2020;	Weight (KG):	2200;
Toolpost Brand:	Hongda;	Max. diameter of alloy wheel:	28inch;
Max. swim over bed:	770mm;	Condition:	New;
Packaging Detail:	wooden case;	CNC or Not:	CNC;
Width of bed (mm):	300;	Warranty of core components:	1 Year;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Certification:	CE ISO;
Positioning Accuracy (mm):	0.01 mm;	Spindle bore:	82mm;
Core Components:	Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox;	Max. Length of Workpiece (mm):	770 mm;
Payment Terms:	L/C,T/T;	Voltage:	380V or others;
Port:	Qingdao;	Video outgoing-inspection:	Provided;
Place of Origin:	Shandong China;	Travel (Z Axis)(mm):	1320;
Length of the rail:	1320mm;	Marketing Type:	Ordinary Product;
Supply Ability:	20 Set/Sets per Month;	Max. size of tool post:	25*25mm;
Key Selling Points:	Automatic;	No. of Spindles:	Single;
Width of the rail:	300mm;	Model Number:	WRM28H;
Repeatability (X/Y/Z) (mm):	0.01;

ITEMS		WRM28H-PC
Max. swig over bed (mm)(inch)		Φ770(30’)
Max. Diameter of alloy wheel(mm) (inch)		Φ710(28')
Max. Stroke of the X-axis(mm)		390
Max. Stroke of the Z-axis (mm)		880
Width of the rail (mm)		300
Length of the rail (mm)		1320
Size of the three-jaw chuck (inch)		13’’
Range of spindle speed (RPM)		50-2000
Spindle speed control		Automatic
Spindle bore (mm)		Φ82
Taper of spindle bore		1:20(Φ90)
Taper of spindle nose		A2-10
Adjustable stroke of carrier in X direction		100mm
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		7.5KW
Machine size	(L/W/H) (mm)	2150/1390/1750
Package size		2300/1720/2170
Net weight		2400KG
