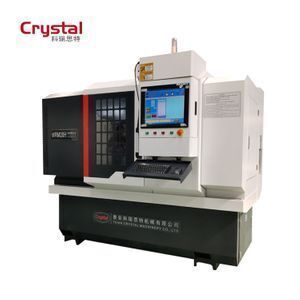

WRM28H horizontal wheel repair equipment alloy wheel repair lathe machine

Product details
Warranty:24 Months;Spindle bore:82mm;
max diameter of alloy wheel:720mm(28");Product name:CNC WRM28H special-made 3 steps claw Alloy Wheel Repair equipment;
Brand Name:Crystal;Single gross weight:2,250 KG;
Package Preview:https://sc01.alicdn.com/kf/HTB16bilXOzxK1RjSspjq6AS.pXaD.jpg_640x640.jpg;Place of Origin:Shandong China;
Package Type:wooden case;Max.swing over bed:770mm(30");
Type:Electric Tool;range of Spindle speed:50-2000rpm;
max size of tool post:25*25mm;Selling Units:Single item;
taper of spindle nose:A2-10;Size:28'';
size of three-jaw chuck(inch):13";Single package size:230X176X215 cm;
Main Material:Iron;Warranty:2years;
stations of tool carrier:4 position;

WRM28H horizontal wheel repair equipment alloy wheel repair lathe machine



Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.

Wheel Repair Lathe Advantages

1. Cuts wheel up to 28’’.

2. 17 inch interface touchscreen.

3. With CE, SGS, ISO, BV certificates.

4. Automatic ruby probe system.

5. Self-developed optimization software.

6. Free Training video and manual.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.

12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.


Alloy Wheel Repair Lathe Specifications



ITEMS

WRM28H-PC

Max. swing over bed (mm)(inch)

Φ770(30’)

Max. Diameter of alloy wheel(mm) (inch)

Φ710(28’)

Max. Stroke of the X-axis(mm)

390

Max. Stroke of the Z-axis (mm)

880

Width of the rail (mm)

300

Length of the rail (mm)

1320

Size of the three-jaw chuck (inch)

13’’

Range of spindle speed (RPM)

500-2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Taper of spindle nose

A2-10

Adjustable stroke of carrier in X direction

100mm

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long    0.001mm,    (X) cross   0.001mm

Moving speed of post

(Z) long     8m/min,     (X) cross    6m/min

Motor power

7.5KW

Machine size

(L/W/H) (mm)

2200/1620/1870

Package size



2300/1720/2170

Net weight

2400KGS



Standard configuration

+
wireless key&mouse 1 setdiamond cutter 1 set inner
diamond cutter 1 set outerspecial ordered soft jaws 1 set
high precision prob system 1 set4 station tool which can adjust X stroke
automatic lubrication systemcooling system(standard)
full cover safety doortool case

training videos

 --





Rim repair samples :

1.Q:The machine can repair wheel edge?

   A:Yes, that’s no problem to repair wheel edge.

2.Q:The machine is easy to learn?

   A:Yes, it is very easy to learn. The detailed manual and training video will be supplied with machine together .

3.Q:Do I need any special software for my PC?

   A:We will provide optimization software (It is specifically aimed at wheel repair and

     we have independent intellectual property rights).

4.Q:What kind of tool that wheel repair machine use?

   A: It is diamond cutting tools.

5.Q:How many time it takes to repair a wheel ?

   A:For same model wheels, the first one needs about 10 minutes, because

     probing wheel curve will take some time. After first one, the curve will be saved, so

     when you repair other wheels as same model, it just takes about 3 minutes.

6.Q:Can we go to your factory and learn how to use the machine?

   A:We sincerely welcome you come to our beautiful city. The training is free. It would

     be great honor to us.

7.Q:Can you arrange training in our place after we bought your machine?

   A:We can arrange oversea training. Buyers will be responsible to the costs.





Make you satisfied is our business!

1. The first batch of supplier joined Alibaba Trade Assurance.

    Amount up to the top of Machinery Industry. Zero-risk Purchase service.

2. Over 400 clients from more than 80 countries could tell you we are your reliable

    partner.

3. Professional in cnc machine.

    Our price could beat any competitors in China market.

4. We supply professional solution based on your own process one by one.

5. Customer-made configurations available. Provide you more choices.

6. 7*24 hours before and after sale service.

7. 2 years guarantee for whole machine, 3 years warranty for CNC system, servo

    motor, guide-rail.
