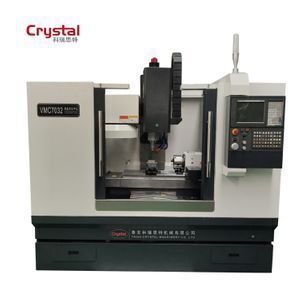

3 Axis gsk Siemens Fanuc Cnc Milling Machine price For Sale VMC7032
-
Supplier: Taian Crystal Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Alvin Chen -
Price: $22500.00 /set -
Min. Order: 1 set
| Range of Spindle Speed(r.p.m): | 300 - 8000; | Applicable Industries: | Manufacturing Plant; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Single gross weight: | 123 KG; |
| Selling Units: | Single item; | Dimension(L*W*H): | 2280X1760X2200; |
| Voltage: | as your request; | After-sales Service Provided: | Free spare parts,Field maintenance and repair service,Online support; |
| Weight (KG): | 2900; | Single package size: | 10X20X30 cm; |
| Positioning Accuracy (mm): | 0.01; | Place of Origin: | Shandong China; |
| Table Size: | 800X320; | Brand Name: | Crystal; |
| Repeatability (X/Y/Z) (mm): | 0.01; | power: | 7.5kw; |
| Table size: | 1000X320mm; | Name: | cnc milling machine; |
| Max. travel of table ( X, Y, Z ): | 610X320X400mm; | Key Selling Points: | Automatic; |
| Condition: | New; | Model Number: | VMC7032; |
| Warranty: | 2 years; | Certification: | CE SGS; |
| Power (kW): | 4; | Type: | Vertical; |
| weight: | 2200kg; | Distance of spindle head to table: | 130-550mm; |
| Spindle speed: | 8000rpm; | Package Type: | wooden case; |
| ATC: | 16 tools; | CNC or Not: | CNC; |
3 Axis gsk Siemens Fanuc Cnc Milling Machine price For Sale VMC7032
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:
Specifications | Unit | VMC7032 |
Table Size (L*W) | mm | 800×320 |
Travel of x,y,z axis | mm | 610/320/400 |
Max, table load | kg | 400 |
T-slot Size | mm | 3-14-100 |
Center distance | mm | 100 |
Spindle taper | -- | BT40 |
Spindle center to Column guide distance | mm | 376 |
Spindle end face to table distance | mm | 130-530 |
Max speed | rpm | 8000 |
Spindle motor power | KW | 3.7/5.5 |
Spindle drive | -- | Belt transmission |
Positioning accuracy | mm | 0.015 |
Repeat Positioning accuracy | mm | 0.0075 |
Rapid feed of X/Y/Z | mm/min | 1000 |
Cutting feed of X/Y/Z | mm/min | 6000 |
Tool Magazine Capacity | tools | 12 |
Max. Tool size | mm | 100 |
Max. Tool weight | kg | 8 |
Machine Weight | Kg | 3000 |
Dimension | mm | 2280*1760*2200 |
Power | -- | 3 phase 380V, |
VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A: We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A:Yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A:We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on alibaba.com, or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:About your cnc machining center, I want to know if they can install the 4th axis.
A:Our cnc machining center can support the 4th axis. You can tell us the working
table size or the travel of X,Y,Z axis of machining center you need. We will give
you a recommendation about machine model.
-
