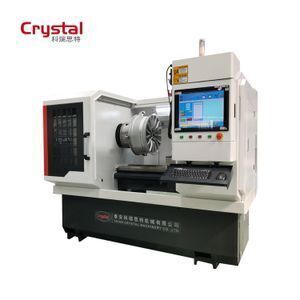

WRM28H Alloy Repair CNC Lathe Wheel rim Refurbish Machine with PC system

Supplier: Taian Crystal Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Alvin Chen
Price: $14000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Weight (KG):	2250;	Port:	Qingdao;
Warranty:	2 years;	Model Number:	WRM28H;
Positioning Accuracy (mm):	0.01;	max size of tool post:	25*25mm;
Condition:	New;	CNC Control System:	WINDOWS;
stations of tool carrier:	4 position;	Repeatability (X/Y/Z) (mm):	0.001;
Structure:	Flat Bed Lathe;	Supply Ability:	50 Set/Sets per Month;
spindle bore:	82mm;	Max. Swing Diameter (mm):	500;
Spindle Bore(mm):	82 m'm;	Brand Name:	crystal;
Year:	newest;	Payment Terms:	L/C,T/T;
max diameter of alloy wheel:	720mm(28");	Type:	HORIZONTAL;
Product name:	WRM28H Alloy Repair CNC Lathe Wheel rim Refurbish Machine PC system;	Dimension(LWH):	230017202170;
Applicable Industries:	Machinery Repair Shops;	Machining Capacity:	Medium duty;
No. of Spindles:	SINGLE;	Spindle Motor Power(kW):	7.5;
Travel (Z Axis)(mm):	700;	After Warranty Service:	Video technical support,Online support;
Packaging Detail:	wooden case;	Width of bed (mm):	400;
Max. Spindle Speed (r.p.m):	2000 r.p.m;	max swing over bed:	770mm(30");
Local Service Location:	United States,ITALY,france,GERMANY;	size of three-jaw chuck:	13";
Package Preview:	;	Material:	Cast iron;
motor power:	7500w;	Travel (X Axis)(mm):	710;
Tool Post Stations:	4;	Showroom Location:	United States,ITALY,france,GERMANY;
Voltage:	380V 3 phase;	After-sales Service Provided:	Online support,Video technical support;
Number of Axes:	2;	Max. Length of Workpiece (mm):	700;
Place of Origin:	Shandong China;	Certification:	CE,ISO CE BV;
Key Selling Points:	Multifunctional;

WRM28H Alloy Repair CNC Lathe Wheel rim Refurbish Machine with PC system

Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.

Wheel Repair Lathe Advantages

1. Cuts wheel up to 28’’.

2. 17 inch interface touchscreen.

3. With CE, SGS, ISO, BV certificates.

4. Automatic ruby probe system.

5. Self-developed optimization software.

6. Free Training video and manual.

7. 7x24 hours technology support.

8. 2 USB interface.

9. High efficiency and economic.

10. Two-year warranty.

11. Free factory hand-to-hand training.

12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.

Alloy Wheel Repair Lathe Specifications

ITEMS		WRM28H-PC
Max. swing over bed (mm)(inch)		Φ770(30’)
Max. Diameter of alloy wheel(mm) (inch)		Φ720(28’)
Max. Stroke of the X-axis(mm)		390
Max. Stroke of the Z-axis (mm)		880
Width of the rail (mm)		300
Length of the rail (mm)		1320
Size of the three-jaw chuck (inch)		13’’
Range of spindle speed (RPM)		500-2000
Spindle speed control		Automatic
Spindle bore (mm)		Φ82
Taper of spindle bore		1:20(Φ90)
Taper of spindle nose		A2-10
Adjustable stroke of carrier in X direction		100mm
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		7.5KW
Machine size	(L/W/H) (mm)	2200/1620/1870
Package size		2300/1720/2170
Net weight		2400KGS

Standard configuration

wireless key&mouse 1 set	diamond cutter 1 set inner
diamond cutter 1 set outer	special ordered soft jaws 1 set
high precision prob system 1 set	4 station tool which can adjust X stroke
automatic lubrication system	cooling system(standard)
full cover safety door	tool case
training videos	--
