Belt Repair Device Non-Reinforced Repair Strip

Supplier: Ningbo Hopson Chemical Industry Co., Ltd.
Region: Zhejiang, China
Contact: Mr Marshell Lin
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	1pc/kg/polybag, 48pcs/carton; standard export master carton packing	port:	Ningbo, Shanghai
Origin:	Zhejiang, China	Main ingredients:	natural rubber
Warranty:	2 years	type:	Universal Chemical Cure Patches, Hand Tools
brand:	Hopson Tire Repair	Supply capacity:	5,000,000 kg per month
size:	80X10mm, 150X10mm	color:	Black
payment terms:	L/C, T/T

Product Description

The HOPSON HOR repairs damage up to 11 inches (275 mm) in 60 thick off-road tires. One-piece construction provides easier installation and eliminates the need for piggyback applications. Specially designed layers distribute fabric and stress and provide maximum flexibility and strength.

Throughout the structure of the HOR repair, superior composite materials prevent overvulcanization, even when the tire is returned to service. For optimum bonding with all vulcanization systems, HOR can be used in uncured, cloth backed and low temperature chemical vulcanization units.

HOPSON HOR provides permanent repair for tubeless or tubed tires and repairs damage to the shoulder, sidewall or crown.

All low temperature and cloth back HORs have HOPSON's beaded tags that allow service technicians to record month, year and other identification for warranty purposes.

notes:All HOPSON HOR Repair Sets must be used with appropriate damage filling materials. Do not use the HOR repair device on open injuries.

Specification

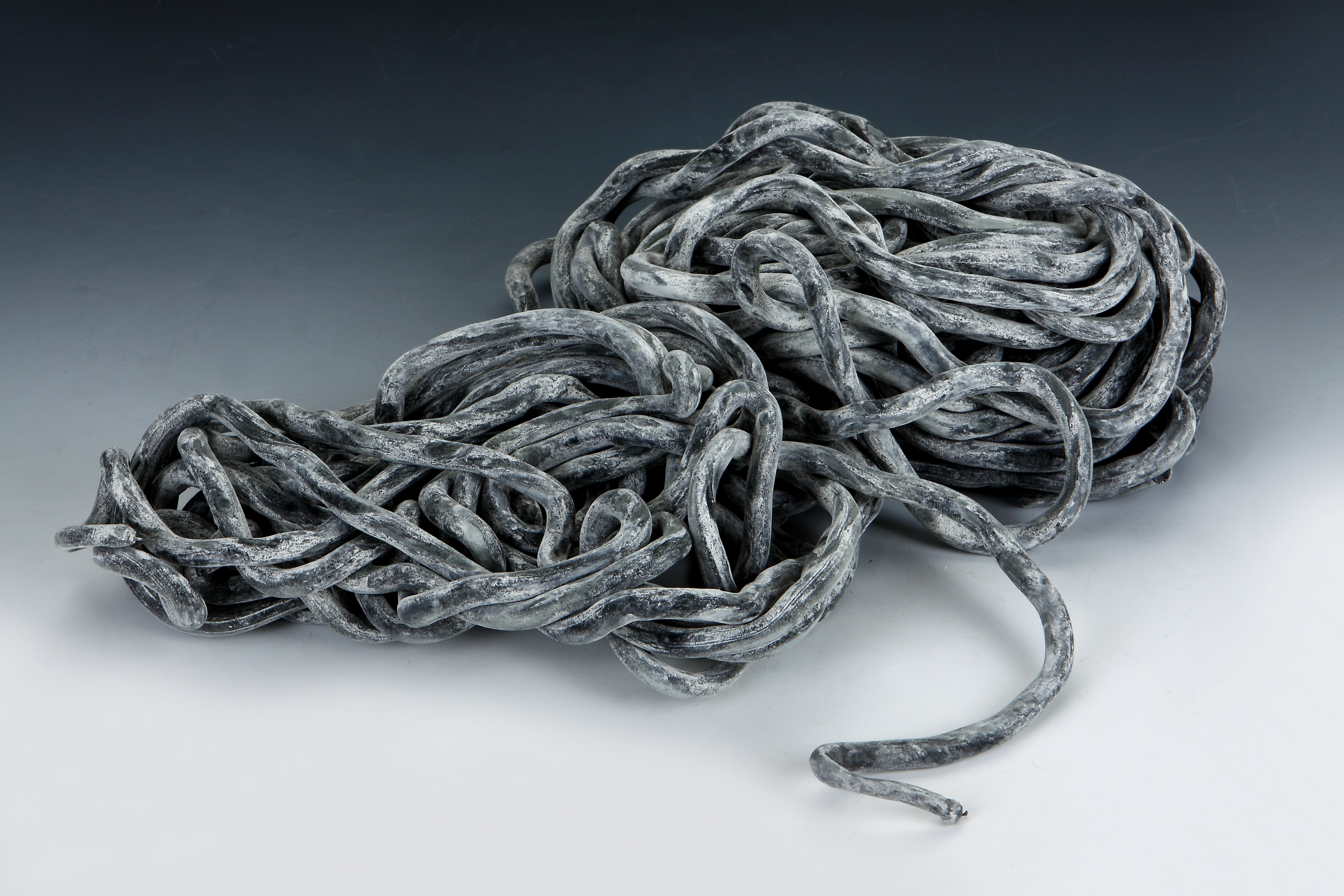

vulva pad gum

Part number: VG-001

Designed for all types of repairs. For tread, sidewall and cord body filling.

Great for humming. Replacement for tread and innerliner compounds. Allow 10 minutes per 1/8" (3mm) thickness at 300°F (149°C).

Thickness: 1.5mm and 2.0mm optional. (±0.2mm)

Packing: 1kg/roll, 12 rolls/carton.

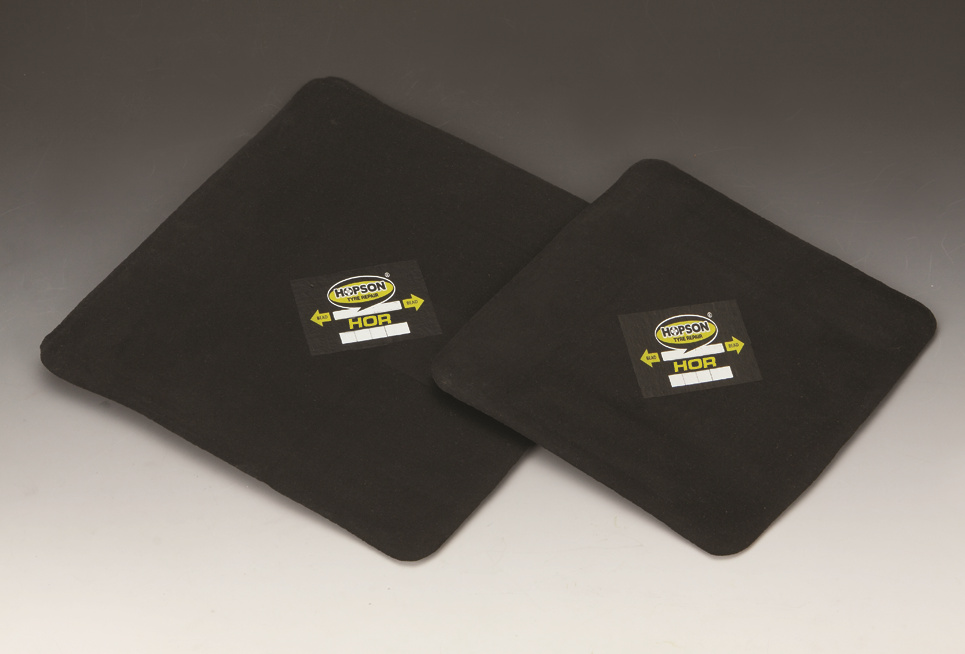

Off-road repair patch for bias tires

Part Number	Dimensions (inches)	Dimensions (mm)	Number of boxes	Number of cases
HOR-1 type	July 16	180	10	12
Huo-2	8 1/8	205	10	12
HOR-3	9 3/8	230	5	8
HOR-4	11 1/4	285	5	8
HOR-5	13 3/8	340	5	8
HOR-6	15 15/16	380	3	8
HOR-7	17 1/4	430	1	8
HOR-8 type	19 15/16	480	1	8
HOR-9	21 1/4	530	1	4
HOR-10	23 1/4	585	1	4
HOR-11	24 3/4	620	1	4

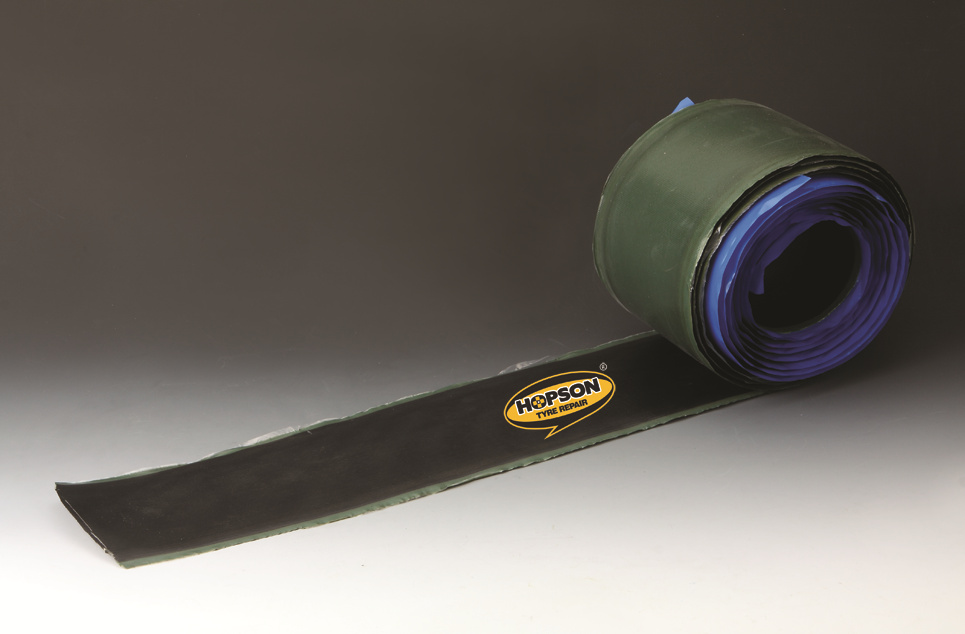

belt repair unit

HOPSON Belt Repair offers repair strips and OEM repairs to extend the life of your belt.

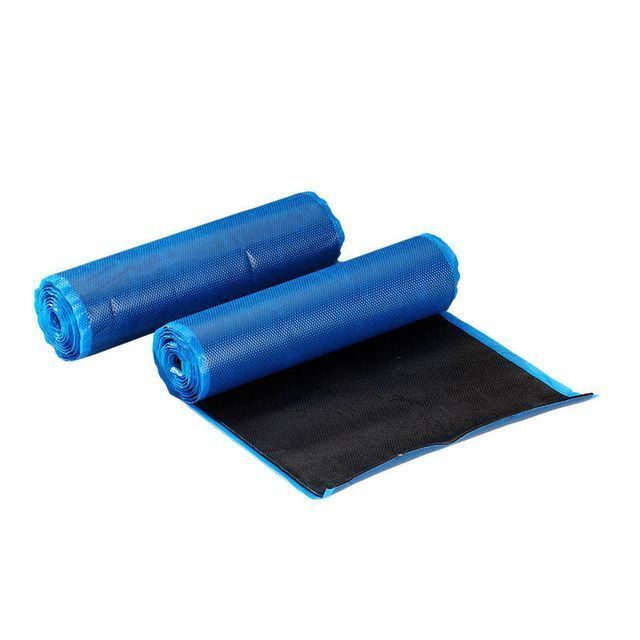

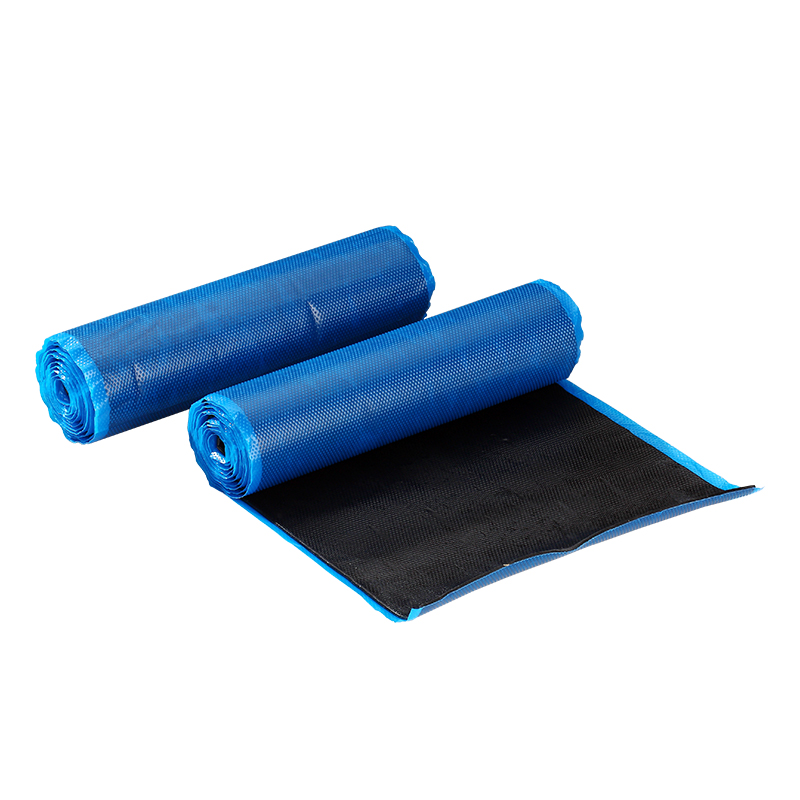

Enhanced repair strip

Repair strips reinforced with black fabric. EP enhancement layer.
Designed to cover the bottom of conveyor belts to prevent breakout damage.
Extremely tough cover paper and beveled edges.
Recommended for permanent repair of impact breaks, longitudinal cuts or snags.
Must be applied with HOPSON cement and activator.
Non-flammable, antistatic.
