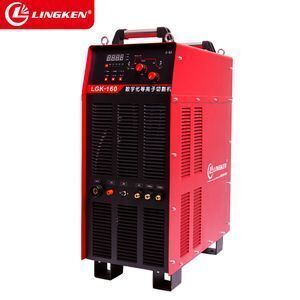

Lingken 160 inverter portable cnc plasma cutting machine price air plasma cutter
- 1200.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Weight: | 80KG; | Max. Output Current: | 160; |
| Dimension(L*W*H): | 690*350*960; | Cutting Mode: | Plasma Cutting; |
| Voltage: | 380V; | Open Circuit Voltage (OCV): | 380V; |
| Cutting thickness: | 60mm; | Condition: | New; |
| Brand Name: | Lingken; | Rated Duty Cycle @40°C: | 160; |
| Supply Ability: | 35000 Piece/Pieces per Month; | Max. Output Voltage: | 380V; |
| Air pressure: | 0.4-0.6MPa; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Advertising Company; |
| Warranty: | 3 years; | Year: | 2019; |
| Cutting material: | Metal .alloy Metal .aluminum; | Rated Input Voltage: | 380V; |
| Port: | SHANGHAI; | Color: | red; |
| Rated Power: | 160; | Quality Cutting Thickness: | 35mm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Place of Origin: | Shanghai China (Mainland); |
| After-sales Service Provided: | Free spare parts,Online support,Video technical support; |

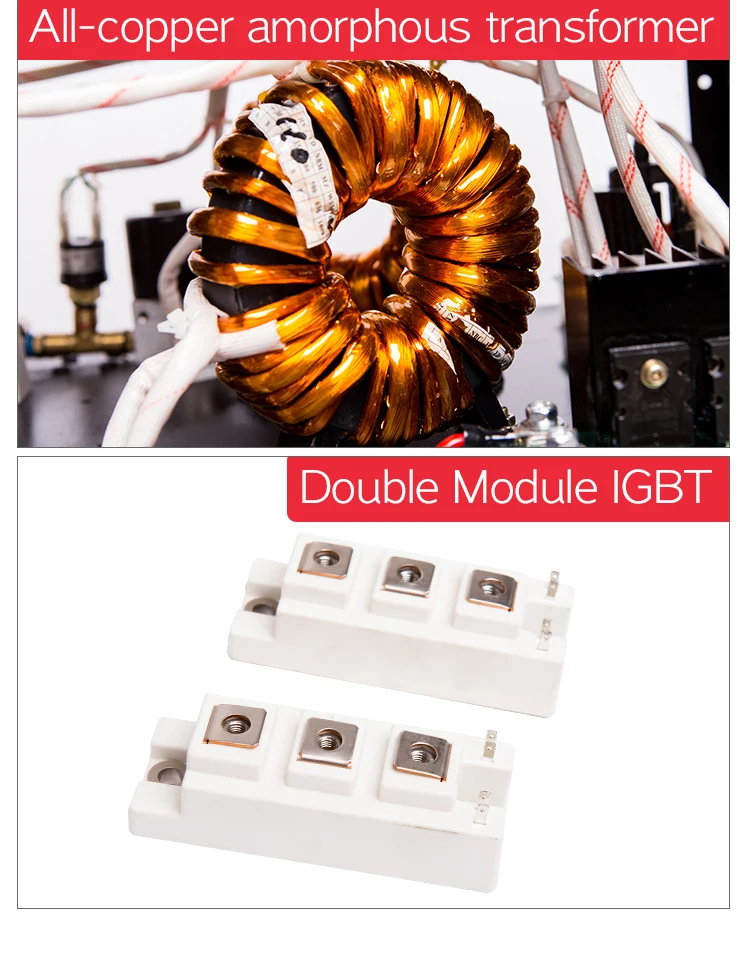

Advanced IGBT high frequency inverter technology, high efficiency and light weight
High load duration for long cutting operations

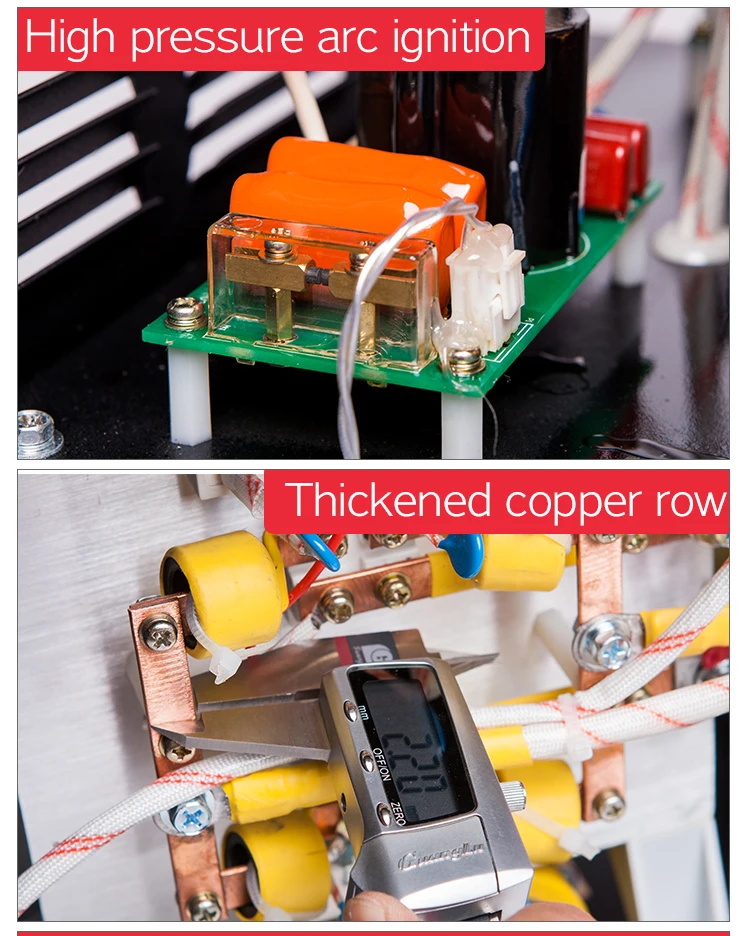

Non-contact high-frequency arc striking, high success rate of arc striking, low interference

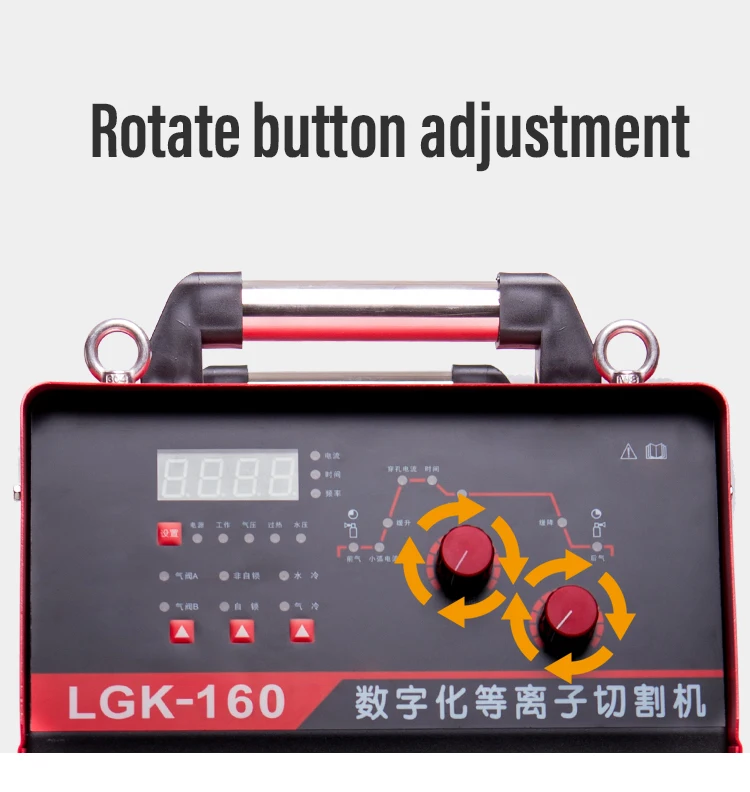

Accurate stepless adjustable cutting current for workpieces of different thicknesses
Excellent arc stiffness, smooth cut, excellent cutting process performance
The arc cutting current is gradually increased, reducing the arcing impact and reducing the cutting nozzle damage.
Wide grid adaptability, cutting current and plasma arc are very stable
User-friendly, beautiful appearance, more convenient operation
Three-proof design of key components, suitable for all kinds of harsh environments, stable and reliable operation
| Product Type | LGK-160 |
| Input Power Source | AC380V |
| Rated Input Capacity | 37.6KVA |
| Inverting Frequency | 20KHZ |
| No-Load Voltage | 315V |
| Load duration | 60% |
| Current adjustment range | 20A-160A |
| Arc method | High frequency arc ignition |
| Power cooling method | Air cooled |
| Cooling mode of adjustable gun | Air-cooled/water-cooled |
| Quality cutting thickness | 1-35mm |
| Efficiency | 80% |
| Insulation Class | F |
| Dimensions | 690*350*960 |
| Weight | 80kg |
