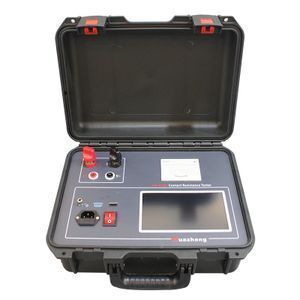

High Current Contact Resistance Tester Loop Resistance Meter 100a micro ohm meter
- 250.00 set
| Output current: | 100A; | Humidity range: | ≤85%RH; |
| Weight: | 7kg; | Port: | Tianjin/Dalian/Shanghai; |
| Product name: | 100A 200A Contact Resistance Tester Low Price Loop Resistance Meter; | Supply Ability: | 5000 Set/Sets per Month Loop Resistance Meter; |
| Brand Name: | HuaZheng; | Packaging Detail: | Wooden box; |
| Temperature range: | -10℃~50℃; | Model Number: | HZ-5100; |
| Dimensions: | 300*230*220(mm); | Payment Terms: | L/C,T/T; |
| Open circuit voltage: | 10V; | Operating power: | AC220V±10%; |
| Certification: | ISO9000; | Condition: | new; |
| Display Type: | Digital Only; | Place of Origin: | Hebei China; |
High Current Contact Resistance Tester Loop Resistance Meter 100a micro ohm meter
100A digital wire and cable loop contact resistance tester Introduction:
According to the requirements of the new power Preventive testing procedures, conductive loop resistance testing of various switching devices is must be measured, whose testing current can not be less than 100A, Continuous Current time shall not be less than one minute.

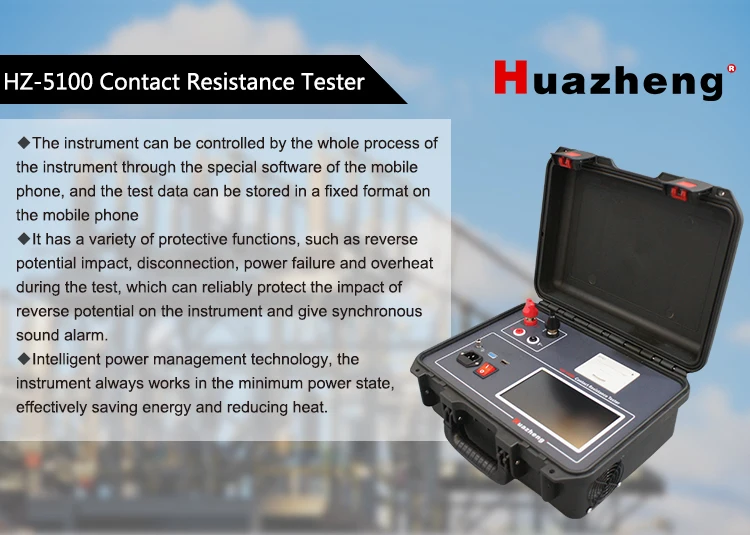

100A digital wire and cable loop contact resistance tester Features:
- constant current output, open circuit voltage up to 10V
- output current of the instrument is large ,light weight
- possessing perfect protection circuit, reliability
- With one minute testing function, meeting the specified test
100A digital wire and cable loop contact resistance tester Parameters:
Output current : 100A
Open circuit voltage : 10V
Measurement time :1min
Measurement range :0~19.99mΩ
Resolution : 0.1μΩ
Accuracy :± (0.5% rdg +2)
Dimensions : 300mm × 230mm × 220mm
Instrument weight :7Kg
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

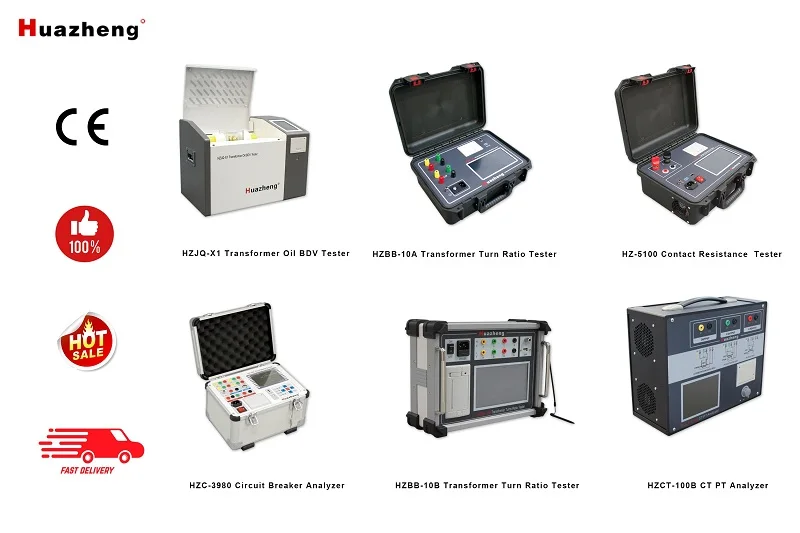

Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
