Portable Metal Roofing Roll Forming Machine / Standing Seam Metal Roofing Machine details
Local Service Location:None;Cutting type:Hydraulic Cutting;
Packaging Detail:1.We will wipe anti rust oil for the whole machine . 2.Plc controller will be covered by foam film 3.Spare parts are some small parts are packed in a wodden case. 4.All componenets are fixed well by steel wire with container.;Brand Name:Kaiyite Machinery;
Tile Type:Colourful Steel/Metal;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:Roof Tile Roll Forming Machine;Dimension(L*W*H):About 7800mm*1510mm*1550mm;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Diameter Of Shaft:75mm;
Certification:ISO 9001 / CE;Application:Roofing;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Roller stations:16;
Key Selling Points:Long Service Life;Supply Ability:30 Set/Sets per Month;
Delivery time:Within 45 days;Place of Origin:Hebei China;
Showroom Location:None;PLC System:Delta Brand;
Warranty:5 years;Voltage:380V 50Hz 3Phases Or Customerization;
Weight:About 3.5 Tons;Condition:New;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ;Port:Tianjin Port;
Use:ROOF;Raw Material:Color Steel, Galvanized Steel;
Name:Metal Roofing Sheet Roll Forming Machine;Production Capacity:8-12m/min;
Capacity:8-12m/min;Thickness:0.3-0.8mm;

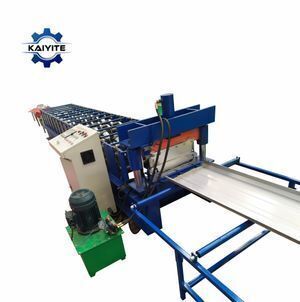

Portable Metal Roofing Roll Forming Machine / Standing Seam Metal Roofing Machine

Metal roofing roll forming machine is a affordable metal roofing machine . This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .   In order to supply the good quality machine to the client , our production department will test the machine again and again until it can work smoothly before shipping . To ensure that the client can use the machine directly once they receving it .

Detail Of Machine

Main Detail Of Roller Shutter Door Strip Stamping Forming Machine

* Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate ect ;

* Thickness: 0.3mm - 1.0mm;                                              * Driving way: By Chain;

* Forming roller station: 16 rows;

* Diameter of shaft: 40mm, 45# steel;                                  * Power: 4 Kw + 4 Kw;

* Roller material: 45# steel , heat treatment and polishing;

* Operate type: Manual and Automatic;                               * Working speed: 8-12 m/min;

* Size (L*W*H): about 7800*1510*1550 mm;                   * Thickness of Wall Panel:14mm

* Cutting Type: Hydraulic Cutting;                                      * Material of Blade: Cr12 ;

* Voltage: 380V 50Hz 3Phases or Customization;               * Frame: 300H Steel;

* Brand Of PLC: Delta brand with touch screen

Component Of Machine

*   5 Tons Manual Deciler......................................1 Unit

*   Main roll forming system.............................1 Unit

*   Hydraulic system..................................1 Unit

*   PLC Control Cabinet....................................1 Unit

*   Product Receiving table.........................2 Unit

*   Spare Part................1 Unit

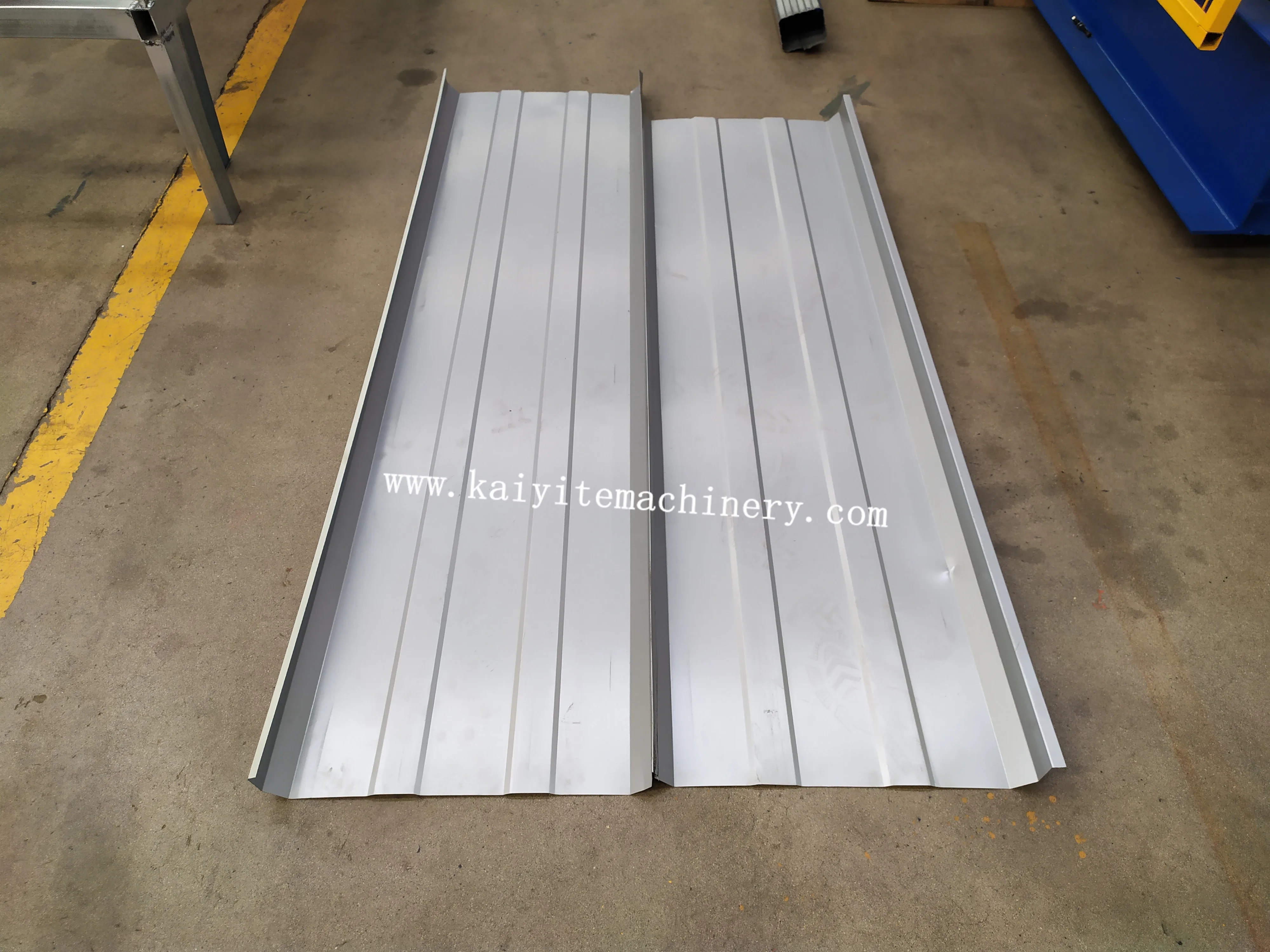

Finished Product

We can design machine according to customer's requirement .

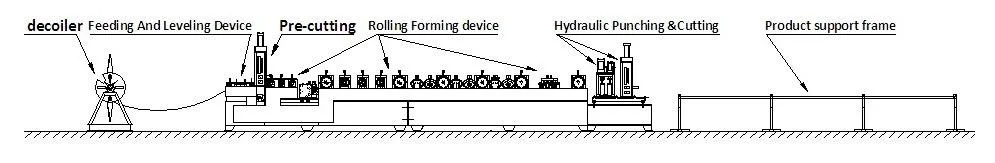

Machine Working Flow

5 Tons Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting Device -- Product Receiving Table

Clients Visit

Welcome all the friends from all over the world to visit us . If you visit us , we can have a talk face to face , what's more , you can better know our factory and machine.

Contact Us

If you want to learn more about this machine or has any questions , please contact us freely .
