Fully automatic straw making machines straws machine paper straw machine

Supplier: Dongguan Huanlian Automation Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Vivien Cai
Price: $12900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:	New Product 2020;	Core Components:	PLC,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Local Service Location:	Egypt,United States,Philippines,Pakistan,Thailand,Kenya,Colombia,South Africa,Uzbekistan;	Video outgoing-inspection:	Provided;
Dimension(LWH):	325011001450MM;	Port:	Shenzhen;
Power:	1.5kw;	Weight:	1500KG;
Brand Name:	UBL;	Showroom Location:	Egypt,United States,Philippines,Pakistan,Thailand,Chile,Romania,Kyrgyzstan,Malaysia;
Warranty:	one year;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Machinery Test Report:	Provided;	Certification:	iso;
Supply Ability:	260 Piece/Pieces per Month;	Place of Origin:	China;
Condition:	New;	Voltage:	220-380V/50-60HZ;
Warranty of core components:	1 Year;

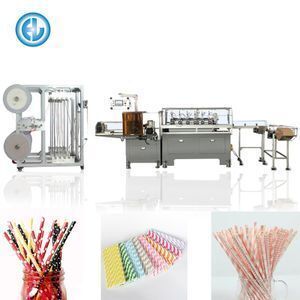

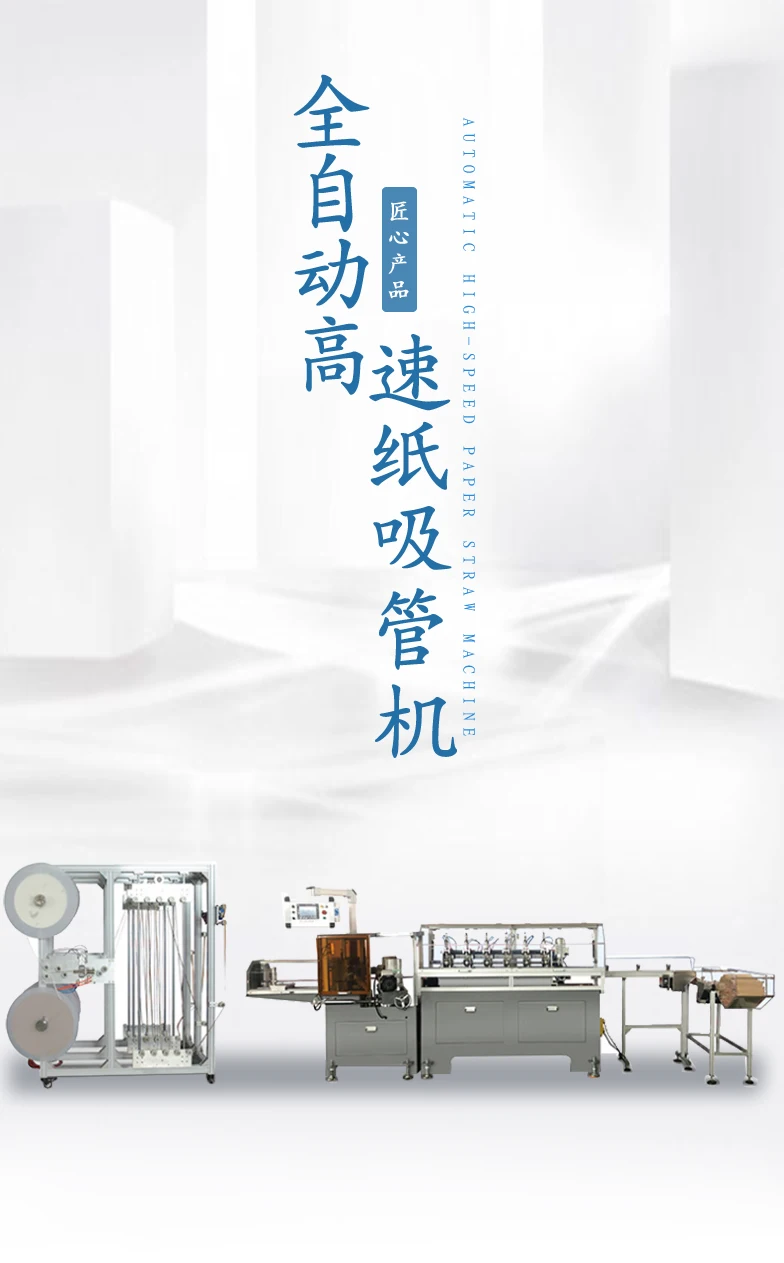

Automatic Paper Straw Making Machine for drinking Paper pipe

Please find our machine specification and payment term as below:

Payment	TT/LC
Delivery	60-120 days

The high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole, and is equipped with a CNC multi-knife cutting system. The finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc.

1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment.

2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency.

3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection

Cut the pipe length	120-850 MM
Production speed	10-50M/MIN
Pipe cutting way	58X38X1.5
The gluing way	Use two sets of independent electric rubber basin glue
Main motor	1.5KW
Servo motor	2KW
Size of the host	325011001450
Covers an area of	720048001500
