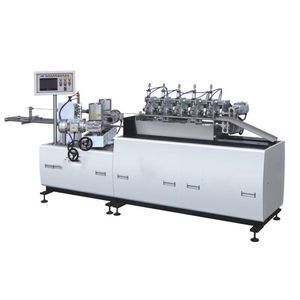

WANHE-50 Full automatic colorful paper drinking straw making machine

Supplier: Wenzhou Wanhe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr forrest Xie
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	1300KGS;	Power:	3kw;
Paper frame, rubber frame:	3 of drinking straw making machine;	Operating area:	7000*5000mm;
Applicable Industries:	Manufacturing Plant,Restaurant,Printing Shops,Energy & Mining,Advertising Company;	Place of Origin:	Zhejiang China;
Paper layer:	3 Layers for drinking straw making machine;	Brand Name:	WANHE;
Warranty:	1 YEAR;	Packaging Detail:	Wooden case of drinking straw making machine;
Dimension(LWH):	350015001200mm;	Port:	NINGBO PORT FOR drinking straw making machine;
After-sales Service Provided:	Overseas service center available;	The operator:	1~2;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Voltage:	380V;	Supply Ability:	50 Set/Sets per Month;

What machine use for

Equipment introduction:

WANHE-50 stainless steel high-speed paper straw machine integrates paper feeding, gluing, winding and cutting into a whole. Equipped with a CNC multi-knife cutting system, the finished paper pipe can be cut online. 6 mm; 8 mm; 10 mm, etc.

1. The machine is controlled by PLC, and the main machine is equipped with frequency conversion and speed adjustment.

2. The cutting part adopts the servo multi-cutter cutting system, which can synchronously follow the cutting of motor, with higher accuracy and time-saving efficiency.

3. The body and main accessories are made of stainless steel to ensure the product's health and environmental protection

Paper layer	3 layer	Volume tube diameter	4.7-12mm
Volume tube wall thickness	0.5-2mm	Steady speed	30-40m/min
Pipe cutting system	Synchronous motor tracking; Multiple cuts are made on the wire	he gluing way	Single and double face
The power supply	380V three-phase 50HZ	The operator	1~2
Paper frame, rubber frame	3	The belt	3 article
mandrel	2 Set of	size	350015001200mm
The weight of the	1300KGS	Operating area	7000*5000mm
Main motor	1.5W*2PCS
