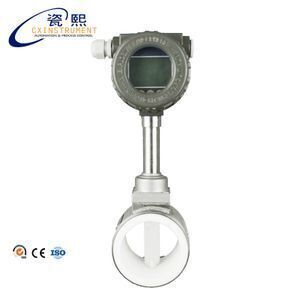

Shanghai Cixi Digital Industrial gas/liquid Flow Sensor Meter Gas Flowmeter

Supplier: Shanghai Cixi Instrument Co., Ltd.
Region: Shanghai, China
Contact: Ms Agnes Peng
Price: $479.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai China;	Type:	Flow Sensors;
output:	pulse ,rs485,4-20ma(optional);	Single gross weight:	7.0 KG;
relative humidity:	5% ~ 90% Atmospheric Pressure: (86 ~ 106) kPa;	applicable caliber:	DN15-DN300, other caliber agreement supply;
power supply:	12~24VDC;	applicable medium:	gas, steam and liquid;
Certification:	CSA,pcoc,Reach,IECEE,scoc,UL,EPA,GS;	Single package size:	55X25X20 cm;
Customized support:	OEM,ODM,OBM;	medium temperature:	(-50 ~ +250) °C, (-50 ~ +350) °C;
ambient temperature:	(-30 ~ +70) °C / (-20 ~ +60 °C liquid-crystal display);	Brand Name:	cixi;
Selling Units:	Single item;	Model Number:	air flow sensor;
Material:	stainless steel;

Product Description

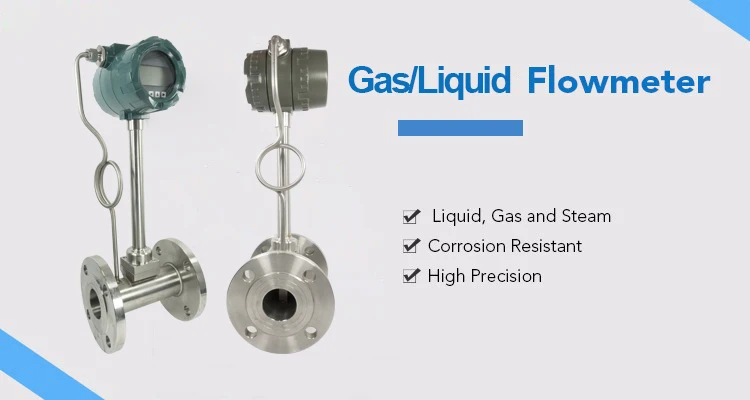

Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter

A.[Features of Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter]

Various medium of Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter

The flow meter could test liquid,gas and steam.

Professional flow meter for steam

Beacuse of the high temperature,the Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter with temperature and pressyre consumption.The highest temperature is 250℃;

Various power supply for you reference

The power supply is 12~24VDC and battery supply,but the battery flow meter can not provide any output;

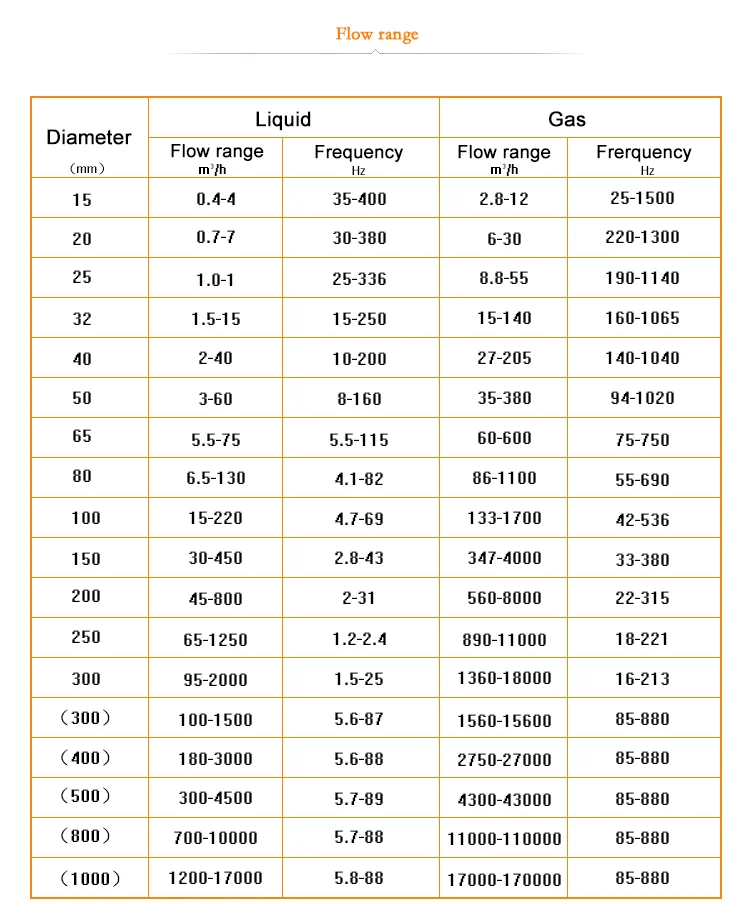

Widely flow range and large flow ratio

The diameter is from DN15 to DN1000 (DN200~1000 insert type)

Srable signal and performance

Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering.

B.[Parameter]

Production Name	Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter
Diameter	15,20,25,32,40,50,65,80,100,150,250,300,(300~1000)
Pressure	DN15~DN200(4.0Mpa) DN250~DN300(1.6Mpa)
Temperature	Piezoelectric:-40~60℃ Capacitive:-40~300℃
Material	Stainless steel material
Vibration acceleration	Piezoelectric:0.2g Capacitive:1.0~2.0g
Accuracy	1.0%FS;1.5%FS; Insert type:2.5%FS
Flow ratio	1:6~1:30
Power supply	Flow sensor:12VDC/24VDC ;Transmitter:12 24 VDC Battery:3.6V
Output	Pulse or 4~20mA Output ;battery supply can not provide any output
Pressure loss	Standard:Cd≤2.4
Explosion	Exd ⅡCT2T~5T GE or Exd ⅡCT2~CT5
Protection	IP65 or IP68
Medium	Gas;liquid or steam
Distance	Three wires pulse output≤3000mm;Two wires current output(4~20mA)

C.[Installation]

1.Requirement of Environment

Avoid the Electrical equipment,high frequency equipment,pls keep supply away other power supply.
Avoid the high temperature emvironment,If can't,pls take Insulated and ventilated measures.
Avoid the high temperature and corrosive gas.
Pls installa the Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter on the pipe without any shock.
The Industrial Air gas/liquid Flow Sensor Meter Gas Flowmeter should be installaed indoor,if installa at oudoor,pls notice the water.
Pls ensure the Plenty of space to checking and service.

2.Requirement of pipeline

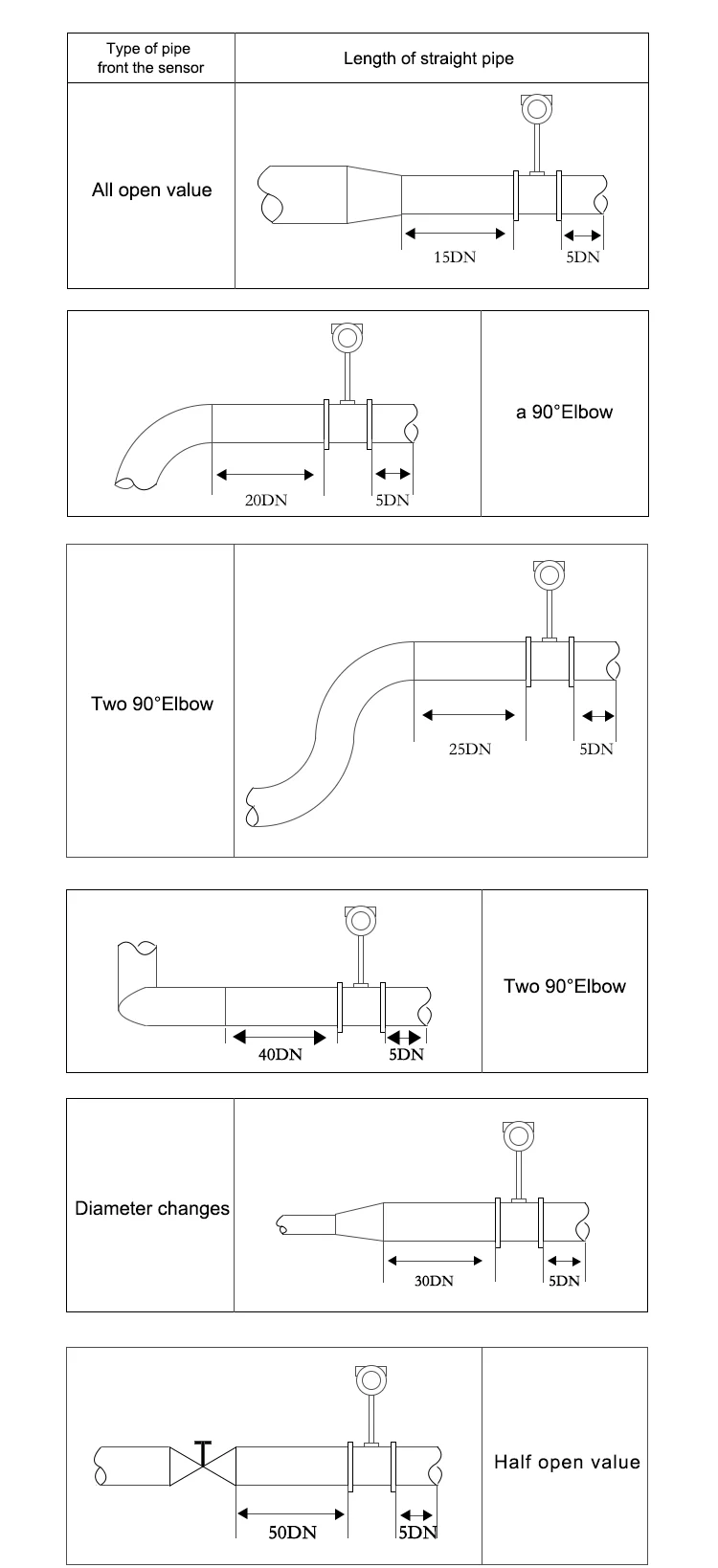

Pls confirm the requirement of straight pipe front and behind the Industrial gas/liquid Flow Sensor Meter Gas Flowmeter to avoid effecting the error and performance

Note:

The adjusted value can not installa at upsteam,should installa it at 10DN downsteam ;
The pipe of uposteam and downsteam must have same diameter,
The gasket between of flow meter and flange,The inside diameter should big than inside diameter of flowmeter 1~2mm.
If you need installa the temperature and pressure sensor,the hole of temperature at 3~5DN,The hole of pressure at 6~8DN;

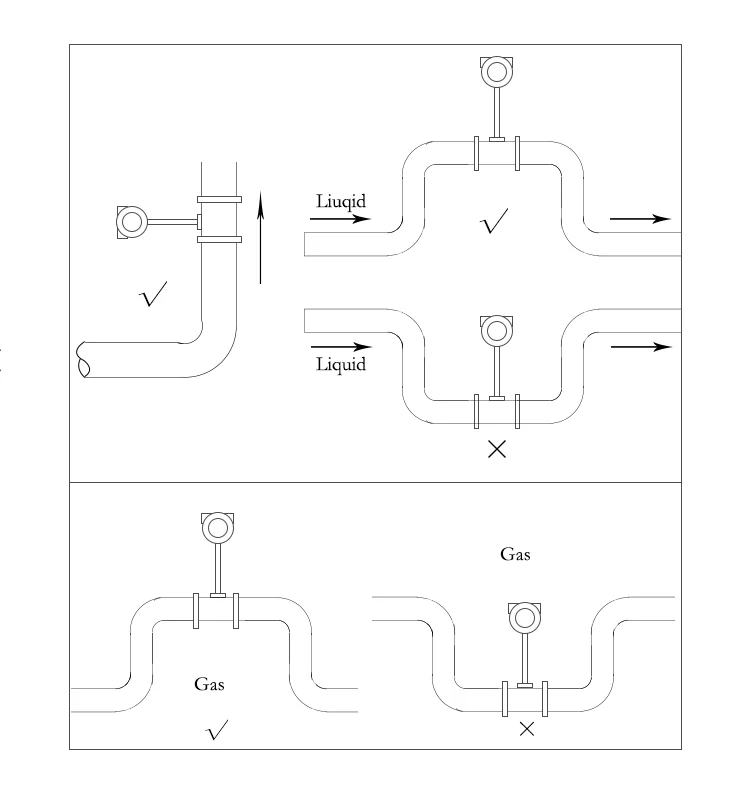

The Industrial gas/liquid Flow Sensor Meter Gas Flowmeter could installa at horizontal ,vertical and tilt state;
For gas,installa at vertical pipe,the flow direction Unrestricted,if the pipe with little liquid,the flow should from bottom to up.
