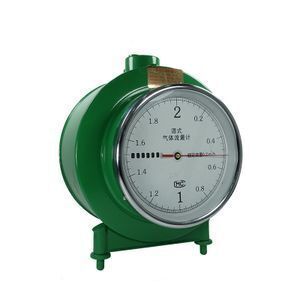

Shanghai Cixi Drum-Type Gas Flow Meter Wet Gas Flowmeter

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Packaging Detail:plywood case/wooden case/carton case Drum-Type Gas Flow Meter Wet Gas Flowmeter;
Type:Drum type gas flow meter;accuracy:+/-1%;
drum capacity L:2L;Certification:GS;
Brand Name:GN;Port:Shanghai;
pressure:1000pa;rated flowrate:200L/H;
Place of Origin:Shanghai China;min. scale. value:0.01L;
top-flowrate:300L/H;Supply Ability:1000 Unit/Units per Day Drum-Type Gas Flow Meter Wet Gas Flowmeter;
Customized support:OEM,ODM,OBM;Model Number:LML;





Drum-Type Gas Flow Meter Wet Gas Flowmeter
Product Description

what's the brief introduction of Wet gas flow meter ?

1. When you use it, you must always pay attention to the water level in the meter, otherwise it will affect measuring accuracy.

2.When you use it, temperature should be maintained at 15 ~ 25 ℃, and the temperature is the same as room temperature, its temperature difference should be ≤ 2 ℃.

3.You'd better readout in a few weeks after the operation of the meter.

4.    When pressure of measuring gas is go beyond normal pressure 1 ~ 6 times (1 ~ 6 KPa), the meters can still work, at this time manometer should be removed , then use rubber plug plugs up mounting holes of manometer.

5.    When flow of measuring gas is go beyond rated flow, the meters can still work, but measuring accuracy will be greatly decreased.

7.The meter should not be installed in a cold room, for fear that it will freeze inside.

8.    In normal circumstances, check out accuracy every year at least.

what's the main features of co2 gas flow meter ?

1.Put the meter on the worktable, adjust screws to enable blister of leveler in the centre, and maintain for a long time in use.

2.Open sealed screw cap of water level controller, pull out internal wool rope.

3.In the plug jack of thermometer or manometer, inject distilled water into the meter, when redundant distilled water drain from hole of water level controller ( sometimes it is clean when outflow one drop), then put wool rope in sealed screw cap of water level controller, and fasten the sealed screw cap.

4.Install thermometer and manometer, (every case 10Pa)

5.Connect air channel according to direction of gas outlet and intake, and sealled.

6.Open gas valve, and then you can measure gas.

Technical parameters

Technical Data:





Type

XML-1normal

XML-2normal

XMF-1anti-corrosion

XMF-2anti-corrosion

Drum capacityL.

2L

5L

Rated flowrateL/H

200L/H

500L/H

Top flowratem3/h

300L/H

750L/H

Min.scale.valueL

0.01L

0.025L

PressurePa

1000Pa

1000Pa

Accuracy

±1 %

±1 %

size (mm)

490*264*220

490*264*304

Net Weight (kg)

4.5 kg

5.4kg







Accessories:

1 pc of thermometer





1 pc of manometer....
