Product details
Product name:gas meter;Standard:GB/T6968-2011;
Single gross weight:1.500 KG;Brand Name:OEM;
Altitude:≤2000;Maximum flow:2.5/40;
Table joint thread:M30x2;Nominal flow rate:1.6/2.5;
Level of accuracy:1.5;Single package size:10X8X15 cm;
Frequency:AC50Hz or 60Hz;Place of Origin:China;
Minimum flow:0.016/0.025;Table joint center distance:130mm;
Packaging Detail:Standard package or according to customer's requirements;Selling Units:Single item;
Model Number:Gas Meter;

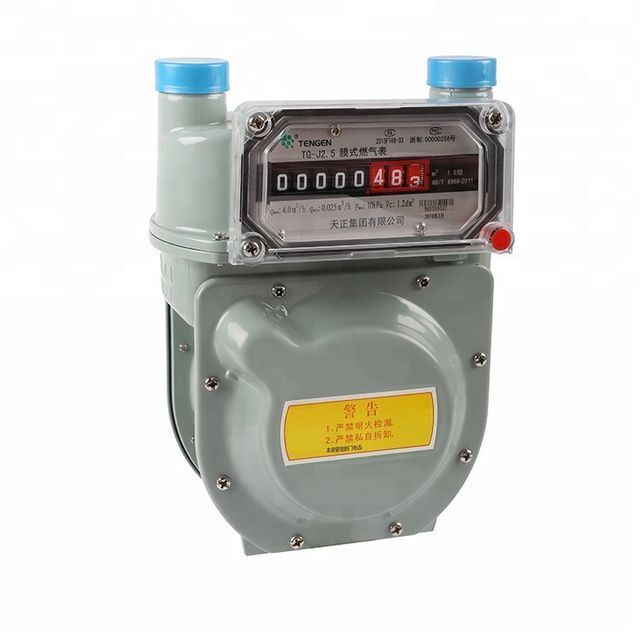

Aluminium Shell Household AC50Hz Natural Gas Meter

gas meter

1.Application:



TG - J1.6/2.5 aluminium shell household membrane type natrual gas flow meter watchcase adopt aluminum alloy die casting, the plastic parts such as high strength engineering plastics processing molding, to high quality material and reasonable structure design to ensure that the product is still under long-term work can reach the indicators, this series of  aluminium shell household membrane type natrual gas flow meter a specifications conform to GB/T 6968-1997 the requirements stipulated in the membrane type gas meter, therefore is an ideal gas industry measuring instruments.

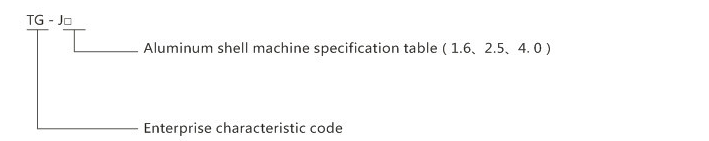

2.Model and Meaning:





3.Main Technical Parameter:

Item

Unit

Parameter

TG-J1.6

TG-J2.5

Nominal flow rate

m3/h

1.6

2.5

Maximum flow

m3/h

2.5

40

Minimum flow

m3/h

0.016

0.025

maximum working pressure

kPa



The basic error

%

10

The pressure loss

Pa

Q min ≤Q<0.1max±3 0.1Qmin≤Q≤Q max±1,5

Air tightness



Q max 200 or less under normal working conditions, and 1.5 times the pressure does not leak

Long-term performance



Under the maximum flow running 2000 hours can still reach the indicators standards

Overall dimensions

mm

168x125x220

176x135x228

Table joint thread



M30x2

M30x2

Table joint center distance

mm

130

130

weight of the

kg

1.7

1.8

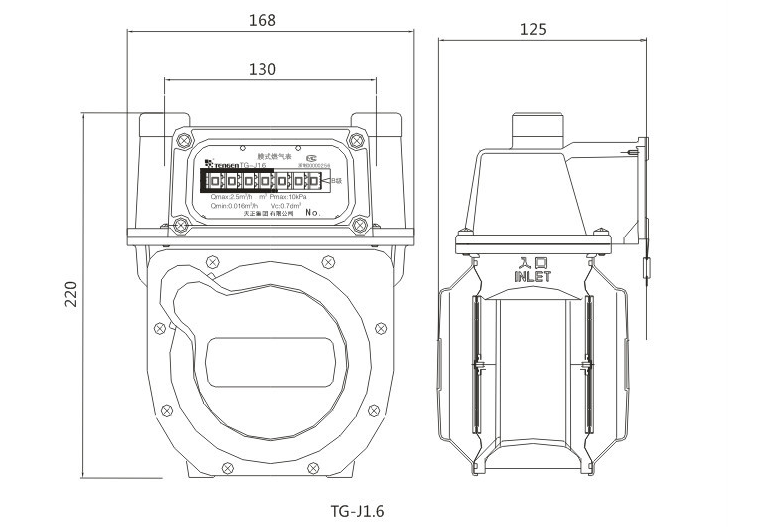

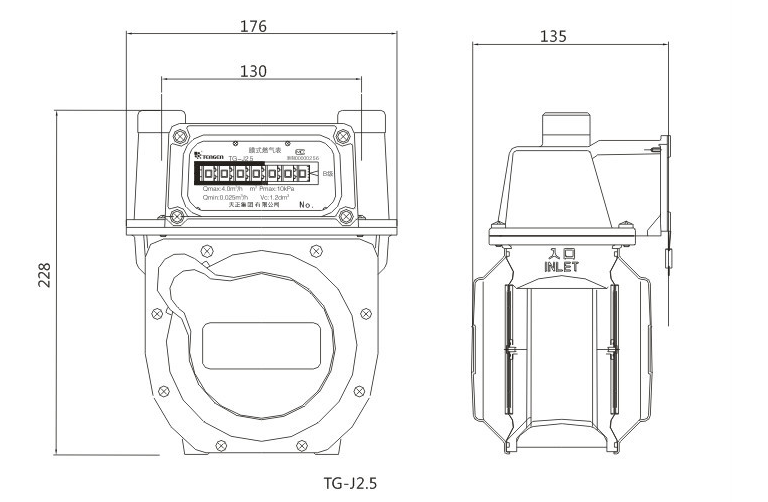

4.Overall and Installation Dimension:





Tengen Group Co., Ltd. is one of the largest scale enterprises of industrial equipment. Our general headquarters lies in "China Electric Appliance Capital", Liushi, Wenzhou. We have successively won honorary titles such as national large-scale enterprise, national level enterprise, China's electric top 100 enterprise, China mechanical top 100 enterprise, and China's top 100 manufacturer.The product quality of Tengen Group has been strictly controlled in each working procedure, and many kinds of internationalization standard quality guaranteed systems can be highly effective under our company's strict monitoring.





Any problem, please don't hesitated to contact us!
