Industrial crystallization tank, evaporative crystallizer Vacuum Crystallizer

Negative Pressure Vacuum Crystallizer

I. Introduction

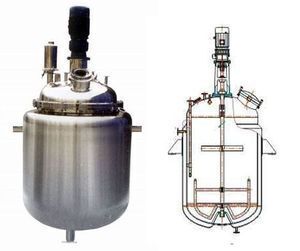

Vacuum Negative Pressure Crystallizer is a kind of tank vessel,it is heated/cooled by jacket or inner pipeline. Crystallizer can be used for evaporation crystallizer and cooling crystallizer. It equipped a internal agitator for improving the crystalline strength. Crystallizer can be operate continuous or by batch.Use will get bigger dimension crystalline by batch operation, but this crystalline will discharge together with mother liquor,might be affect product purity.

This vacuum crystallizer have easy construction, easy to operate,suit for small capacity product operation.(such as chemical reagent or biochemical reagent)

Vacuum Negative Pressure Crystallizer with the advantages of lower consumption,small floor space, easy operation,convenient maintain. It is widely use in the industry of food,chemical, pharmacy, waste water and environmental engineering.etc.

II.Main Characteristic

1.This Equipment getting crystalline by reduce the part of solvent for super saturation.

2.This Equipment adopt jacket type or tubular type heater, and evaporation combined with with high efficient agitator and vacuum negative pressure, solution feed from heater bottom,and circulation to the top of inner heater,then flow into central guide tube, so that having continue circulation with evaporation.

3.Running stable,convenient to clean, no heavy work, any steam,water,material leakage at working place.Optimized the working environment, it is benefit for applying GMP certificate.

4.Designed with draft tube and high efficient agitator,formed the inner circulation channel,which is high efficient, will concentrate the density at 30-40%.what’s more, the final product particle are evenly.
