Forced circulation evaporation crystallizer Single / Double / Thriple Effect Forced

Product details
Heating Method:Steam Heating;Clean:CIP cleaning;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support;Warranty:1 Year;
System Connection:Flange connection;Operation:Easy;
Equipment:Tight;Weight:according to the order;
Applicable Industries:Construction works ;Port:Shanghai;
Supply Ability:100 Set/Sets per Year;Capacity:50-30000L/hr;
Dimension(L*W*H):according to the order;Brand Name:GELING;
Payment Terms:T/T,Western Union;Place of Origin:Shanghai China;
Cooling Method:Cooling Water;Certification:CE GMP;
Condition:New;Control:Button Control or PLC control;
Packaging Detail:wooden case packing or filling in 20FT,40FT 20OT 40OT Container shipping by sea.;Power:according to the order;
Material:SUS304/316L;Voltage:380 415 440v;

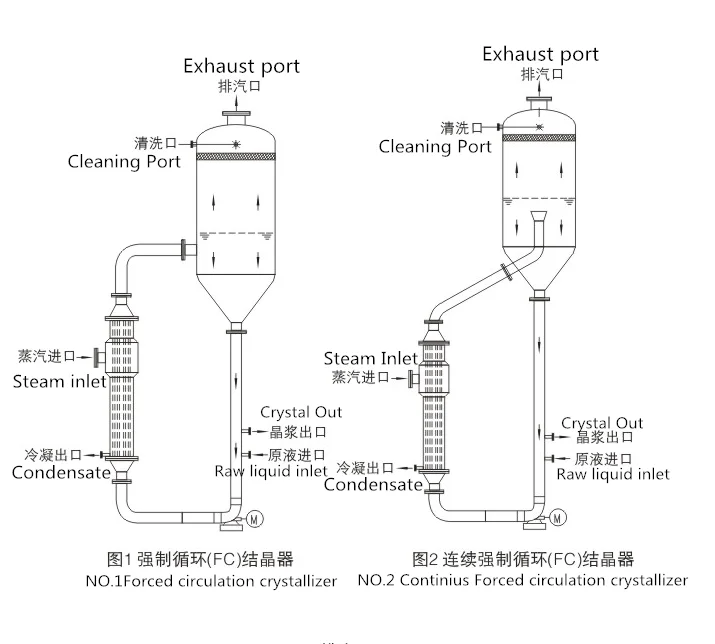

 Enforced circulation evaporation crystallizer Single / Double / Thriple Effect Forced circulation evaporator



The forced circulating crystallizer can be single and multi effective, and can also be recompacted by steam (TVR or mechanical NVR). The running point of the forced circulating crystallizer can be from low vacuum to atmospheric pressure. Usually these devices are commonly used in high evaporation rates, not the most important in crystal size, or in general conditions for the growth rate of crystals.

Parameter :



1.Material : SUS 304/316 stainless steel
2.Competiitve price
3.Best after-sale service
4.Varies evaporation capacity

5.Energy saving



Application

1) By adopting the falling film evaporation form, the equipment is used for concentration and evaporation of fruit and vegetable juices and other heat sensitive materials.Mainly for juice, milk , ketchup etc heat sensitve material evaporation.

2) The device is applicable for low temperature concentration of high concentration and high viscosity materials containing indissoluble solid things in food, medicine, chemical industry, biological project, environment protection project and waste liquid recovery etc, industries.



Single effect evaporator / concentrator

1) The equipment is mainly composed of evaporator, separator, condenser, etc. It is widely used for concentration and dehydration in food, biology, pharmacy, chemical industry, etc.

2) Control types include manual control and automatic control.



Characteristics

1. Full closed process, fast and low temperature evaporation;

2. Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

3. Large scale of the concentrate ratioas the products between the different effects can recycle separately, so the concentrate ratio can be regulated in large scale;

4. The machine attach with spraying ball and self CIP system.
