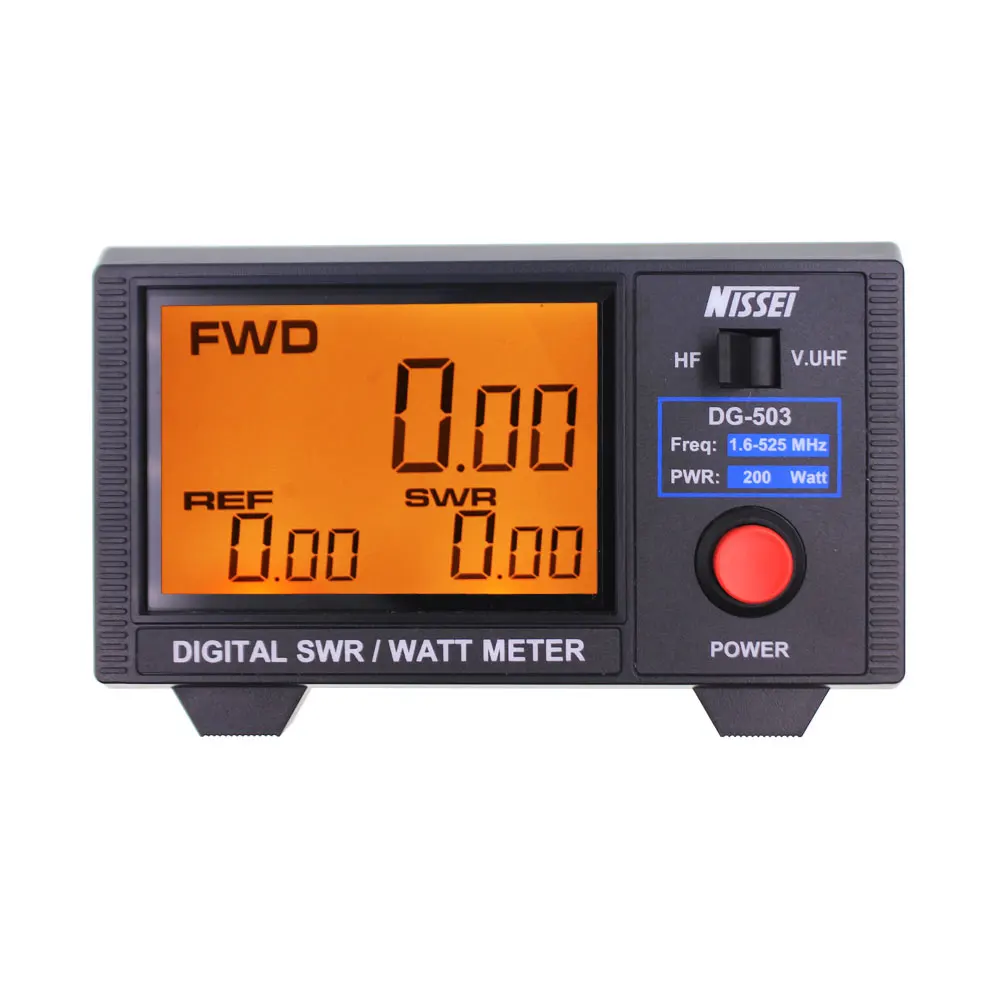

Original Nissei Swr & Watt meter Dg-503 Digital Lcd 3.5" 1.6-60 Mhz/125-525 Mhz for Two-Way ham Radios Walkie Talkie details
Selling Units:Single item;Weight:878G;
Single gross weight:0.88 KG;Color:Black;
Packaging Detail:Regular Export Carton;Model Number:Dg-503;
Accuracy Class:5%;Place of Origin:Guangdong China;
Brand Name:anysecu;Display Type:Analog and Digital;
In/Out Impedance:50 Ohm;Operating Temperature:-20-50;
Measuring Range:Dg-503;Voltage:5V;

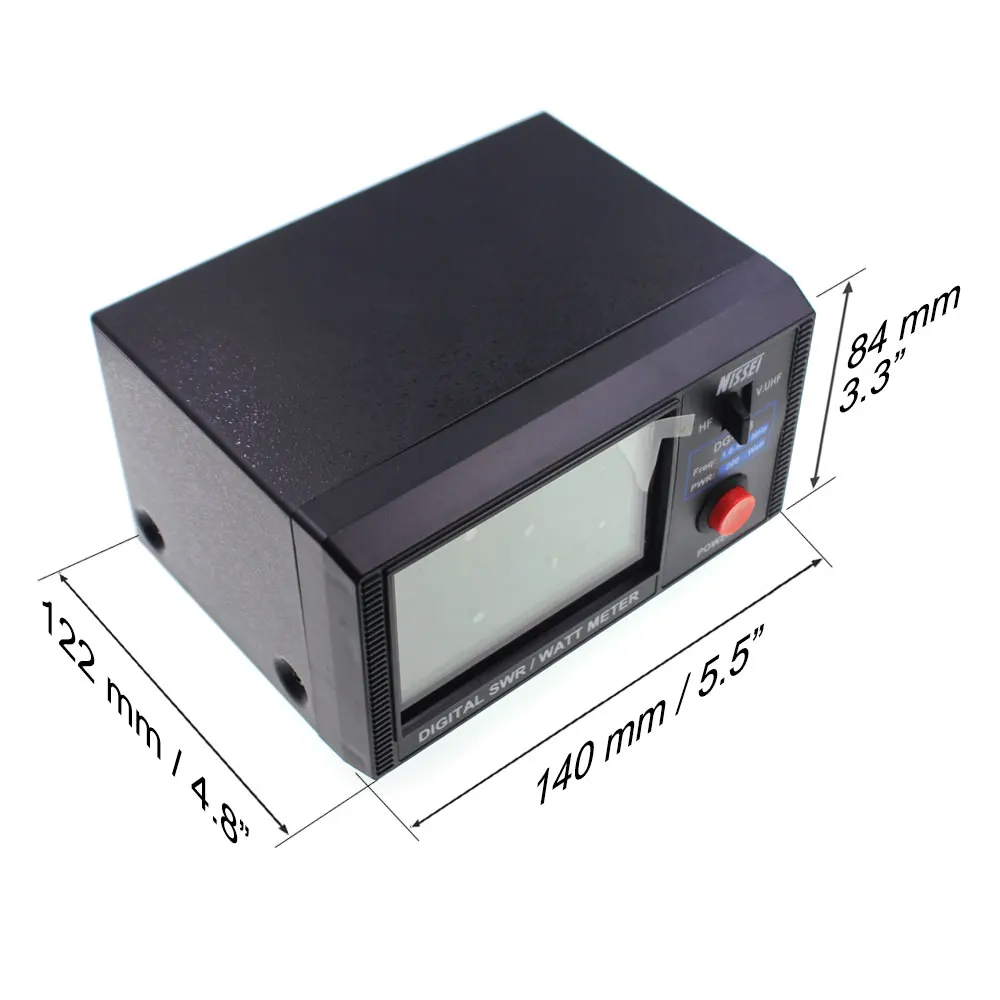

Dimensions:82mm*122mm*42mm;Single package size:10X10X10 cm;
Frequency Range:1.6-60 Mhz;

Original Nissei Swr & Watt meter Dg-503 Digital Lcd 3.5"  1.6-60 Mhz/125-525 Mhz for PTT wireless  Two-Way ham  Radios Walkie Talkie









 The digital meter is very accurate and can be used to measure forward power, reflection power and VSWR
3.5 inches Large LCD display for easy reading
LCD Backlight Display
Forward/Reflective/VSWR Ratio in one push button
The control layout is convenient and the operation is simple

Specification:
Condition: Brand new
Material: ABS
Model: DG-503
Frequency range: 1.6-60MHz/125-525MHz
Vibration point: 14MHz/50MHz/145MHz/435MHz
Power range: 0-200W
Accuracy: +5%
Minimum power of SWR: 1W
Input/Output Connector: SO239
Insertion loss: less than 0.1dB
Test function: Fwd/ref Power and VSWR ratio
Input/output impedance: 50 ohms
Package Weight: 878g



+
Condition:  Brand new
Material:  ABS
Model:  DG-503
Frequency range:  1.6-60MHz/125-525MHz
Vibration point:  14MHz/50MHz/145MHz/435MHz
Power range:  0-200W
Accuracy:  0.05
Minimum power of SWR:  1W
Input/Output Connector:  SO239
Insertion loss:  less than 0.1dB
Test function:  Fwd/ref Power and VSWR ratio
Input/output impedance:  50 ohms
Package Weight:  878g



Package Include:
1 * Digital SWR/Watt Meter
1 * User Manual

1 * 12V DC wire
