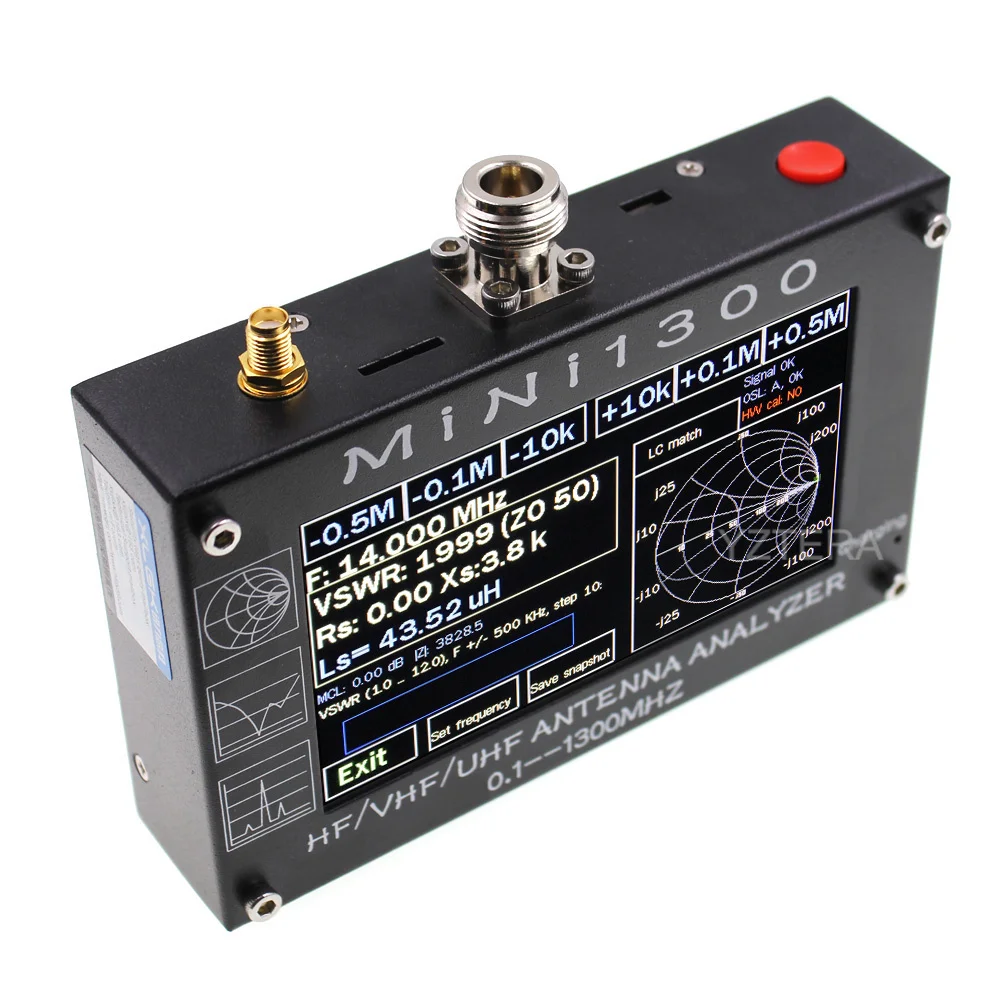

MINI1300 5V/1.5A HF VHF UHF Antenna Analyzer 0.1-1300MHZ Frequency Counter SWR Meter 0.1-1999 with 4.3" TFT LCD Touch Screen
- 167.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Accuracy Class: | NA; | Voltage: | 5V; |
| Operating Temperature: | -20-50; | External Storage Method: | TF card; |
| Brand Name: | anysecu; | Dimensions: | 133mm*85mm*29mm; |
| Place of Origin: | Guangdong China; | Port: | Shenzhen; |
| In/Out Impedance: | 50 Ohm; | Packaging Detail: | Regular Export Carton; |
| Color: | Black; | Model Number: | mini1300; |
| LCD size: | 480x272 4.3" TFT LCD display; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Paypal; |
| Supply Ability: | 1000 Piece/Pieces per Week; | Measuring Range: | 0.1-1300MHz; |
| Weight: | 550G; | Display Type: | Analog and Digital; |
| Frequency Range: | 0.1-1300MHz; |
MINI1300 5V/1.5A HF VHF UHF Antenna Analyzer 0.1-1300MHZ Frequency Counter SWR Meter 0.1-1999 with 4.3" TFT LCD Touch Screen
Antenna Counter MINI1300 HF/VHF/UHF Antenna Tester MINI-1300 Frequency 0.1-1300MHZ with 4.3" TFT LCD Touch Screen Antenna Analyzer

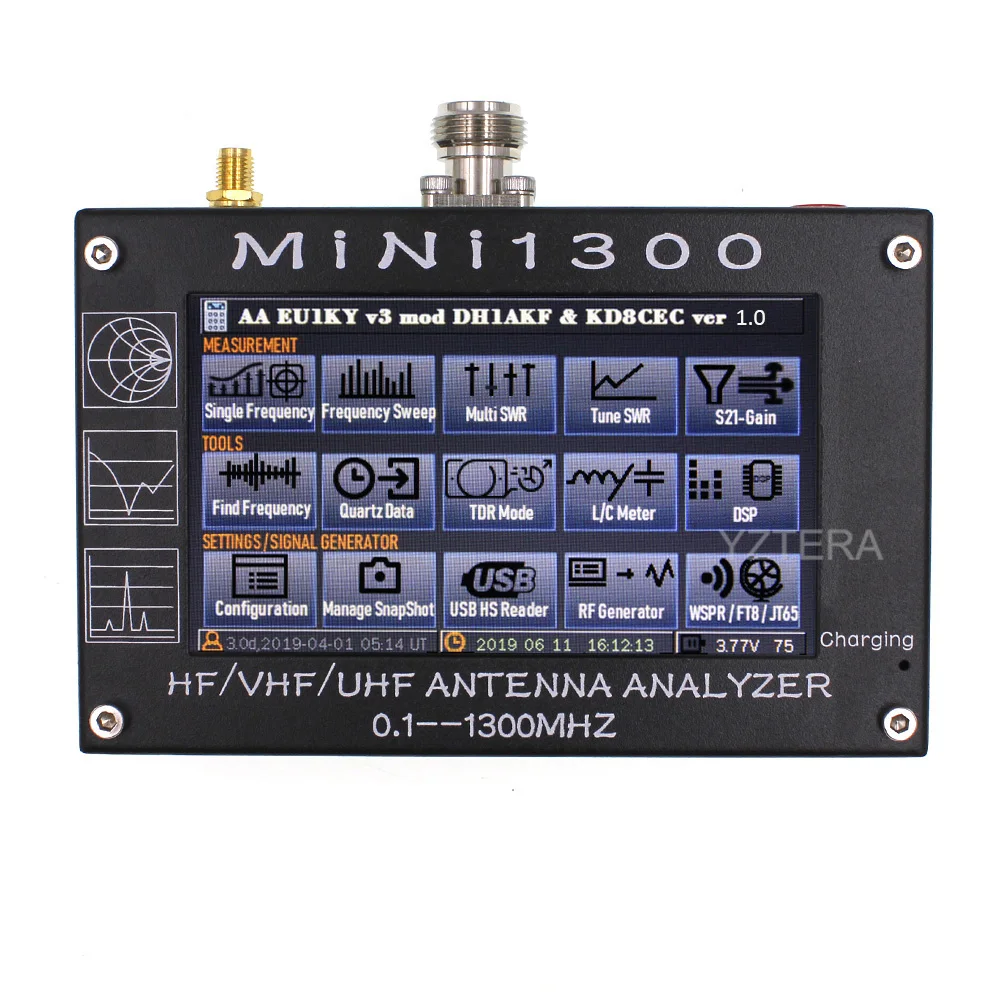

Main functions :
Panoramic scan
Measurement
Generator
Time Domain
Multi SWR
Setup
Find Frequency
Tune SWR/Sound
View Pictures
USB HS cardrdr
| Frequency Range | 0.1-1300MHz |
| In/Out Impedance | 50 |
| HF/VHF/UHF contiunous coverage | Yes |
| Measurement Parameters | SWR, R, +Jx, -Jx, |Z|, Returnloss |
| Measurement Mode | Single point measurement, Scanning (Frequency Sweep), and TDR Mode |
| SWR MeasureMent Range | 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode) |

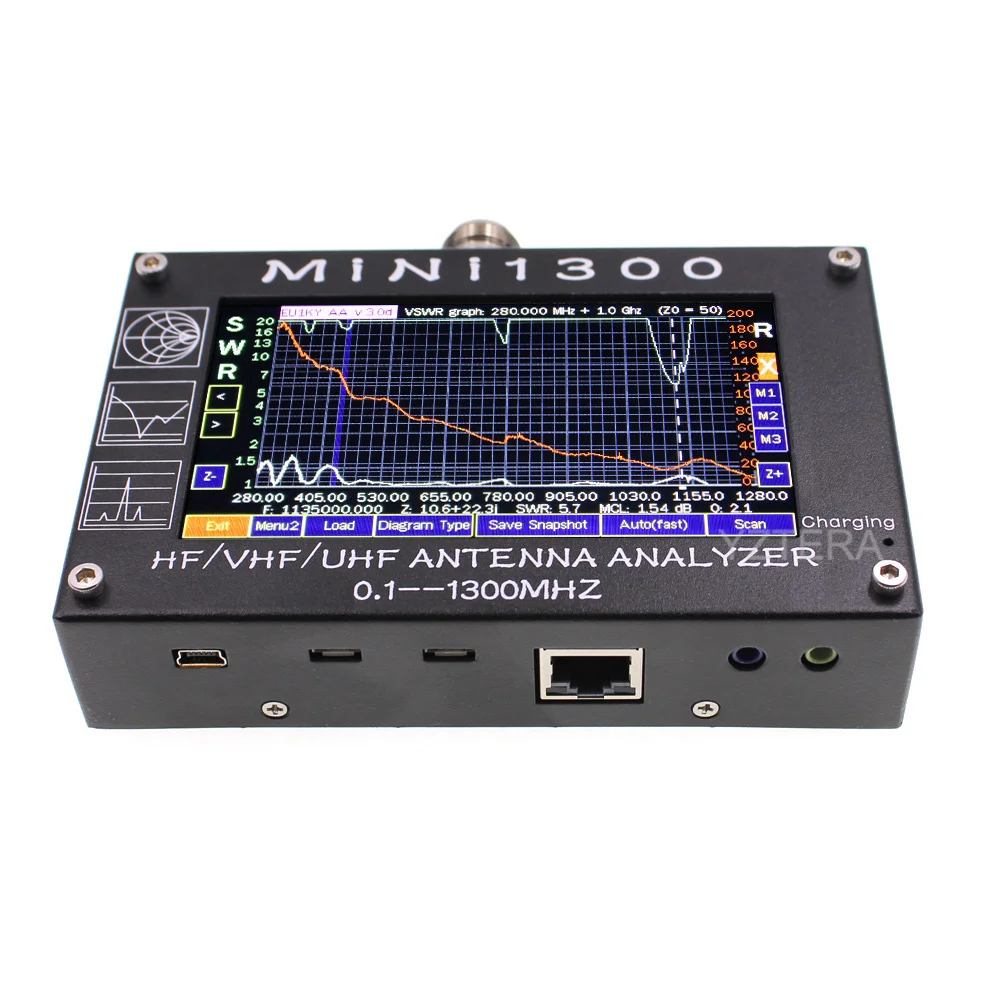

| Display Modes | Numerical display, curve display, simith chart |

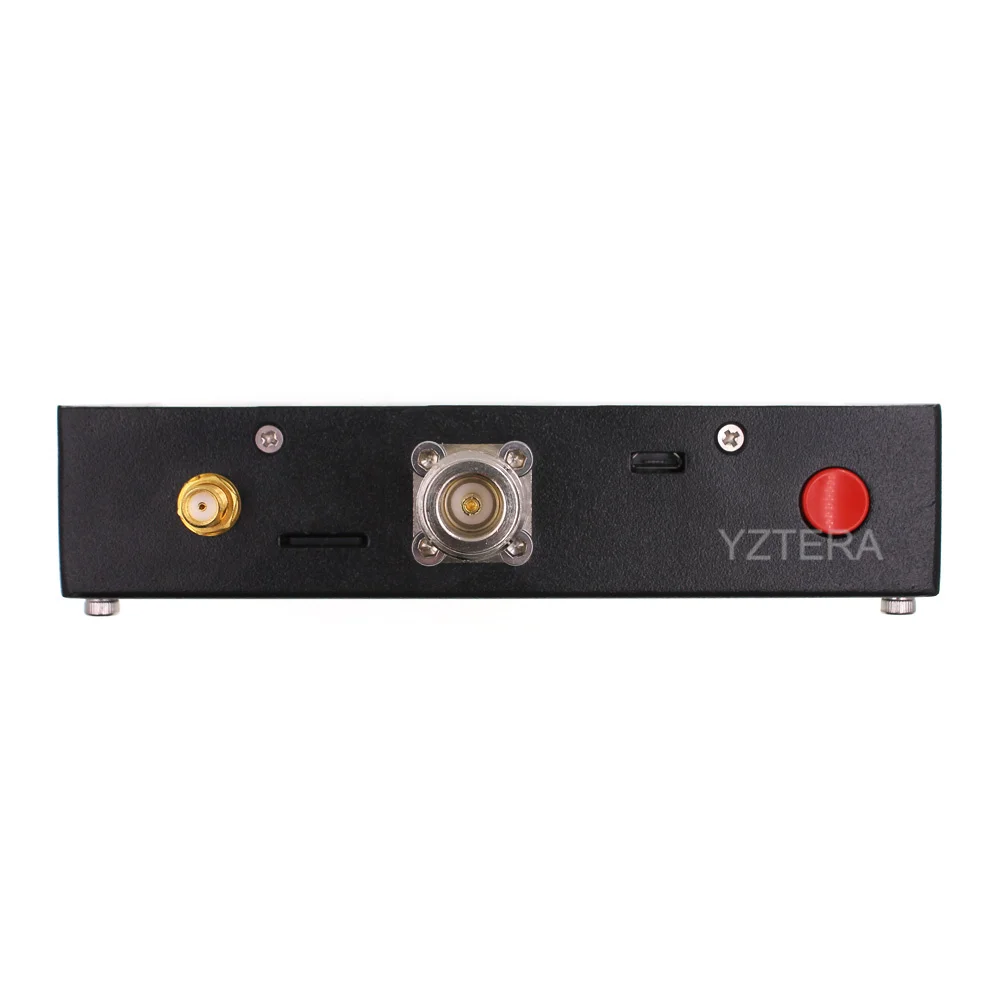

| Connector Type | UHF N-type connector |

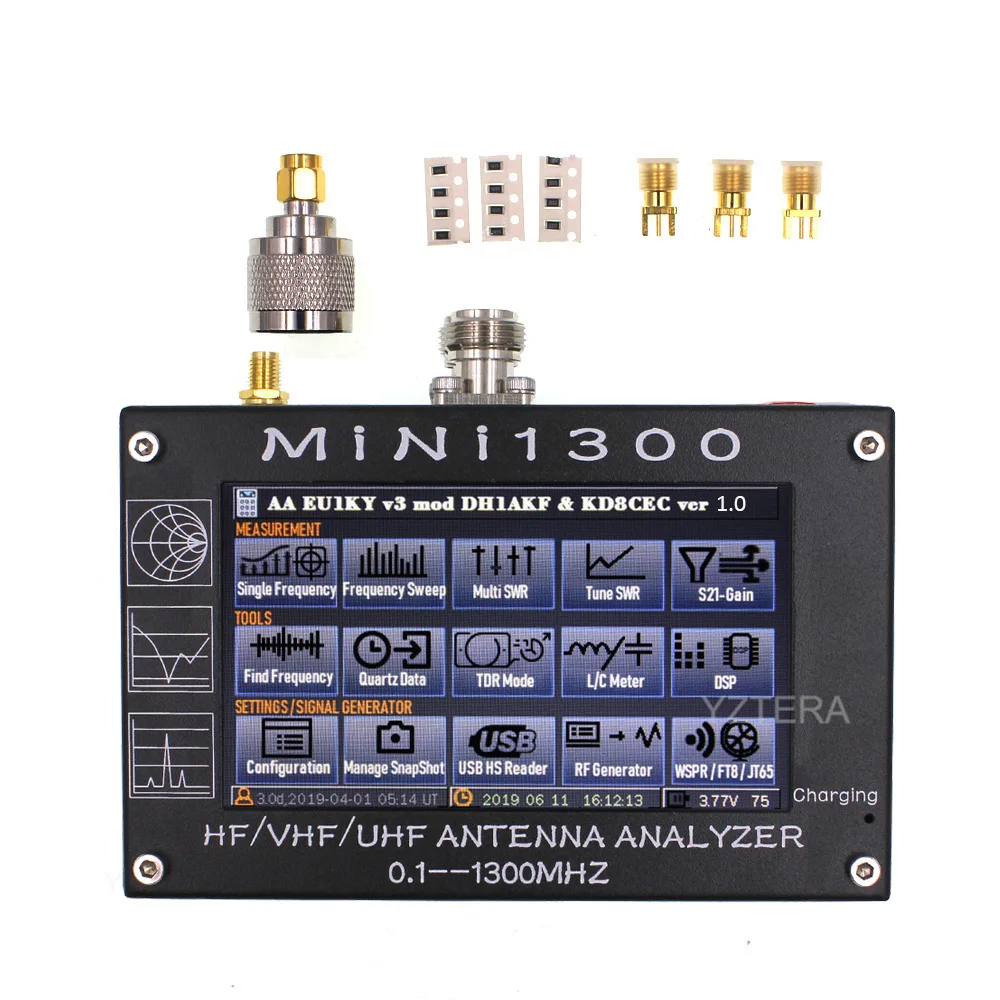

| SMA OPEN-SHORT-LOAD | Calibration Kit x 1 |
| LCD size | 480x272 4.3" TFT LCD display |
| Touch Screen Type | Capacitive |
| All capacitive touchscreen on the display | no buttons are needed |
| Power Source | USB or Internal Li-ion |
| Built-in Li-ion charging circuitry and DC-DC booster Yes | |
| Maximum charging current | 5V/1.5A |
| External Storage Method | TF card |
| Dimensions | 33·85·29 mm Does not contain prominent ports. |
| Weight | 550g |
| Warning: if the product has parameter changes, the actual test will prevail. | |
