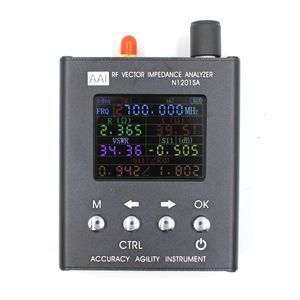

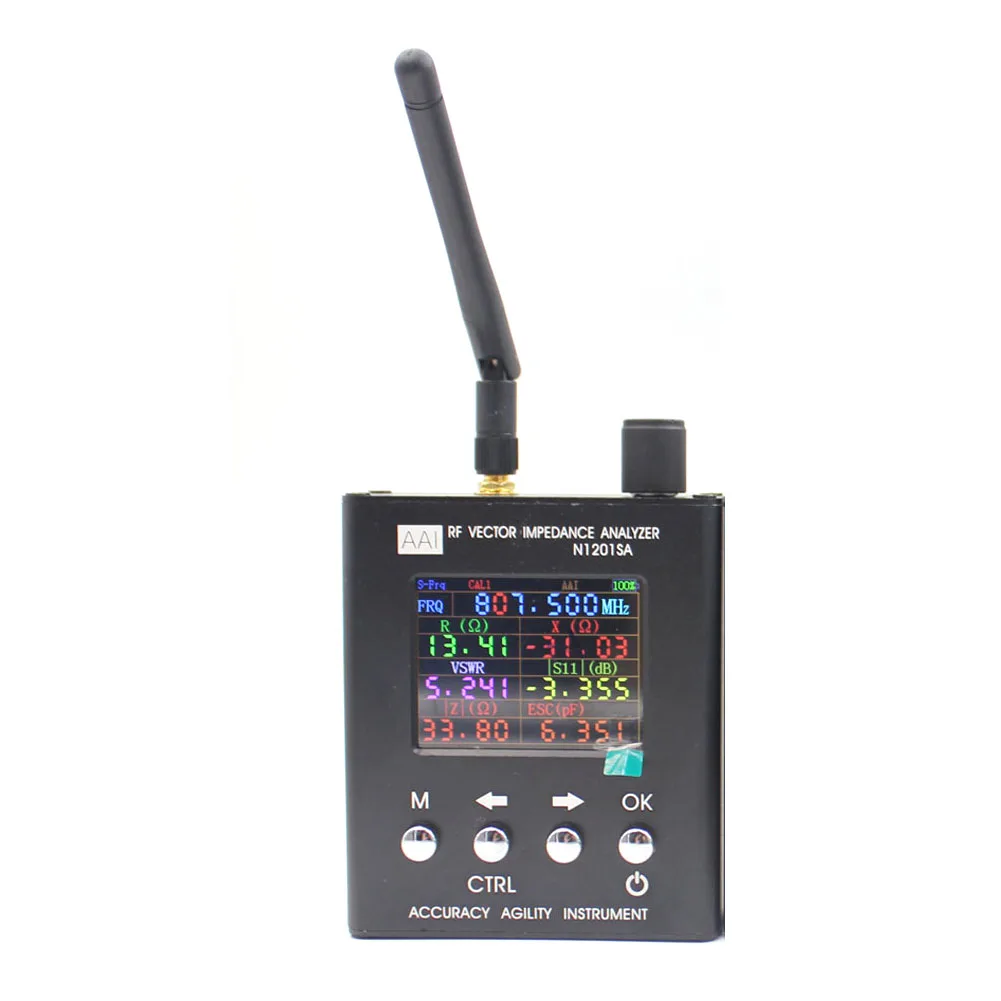

140MHz-2.7GHZ UV RF Vector Impedance ANT SWR N1201SA Antenna Analyzer Meter Tester

Click here to contact

Product details

Display:	2.4inch TFT Pixel 320*240(QVGA);	Measuring Range:	140-2700MHZ;
Charging current:	400mA;	Brand Name:	ANYSECU;
Measure facts:	resistance/reactance/SWR/s11;	Frequency:	140MHz~2700MHz;
Spacing:	1kHz;	Resolution ratio:	4bits effective digits;
Model Number:	N1201SA;	Supply Ability:	1000 Piece/Pieces per Week;
Accuracy Class:	High;	Auto Power Off:	Adjustable(Always oN/5mins~60min);
Charging port:	USB(For charging only);	Battery:	2000mAH(7.4Wh);
Power dissipation:	<1.5W;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Paypal/Credit card;
Display Type:	Digital Only;	Dimensions:	120mm86mm30mm;
Port:	Shenzhen;	Operating Temperature:	0-60;
Voltage:	220V;	Place of Origin:	Guangdong China;
Packaging Detail:	Regular export carton;

New 40MHz-2.7GHz N1201SA UV RF Vector Impedance ANT SWR Antenna Analyzer Meter Tester

N1201SA GSM Antenna analyzer Specifications

Frequency	140MHz~2700MHz
Spacing	1kHz
Display	2.4inch TFT Pixel 320×240(QVGA)
Battery	2000mAH(7.4Wh)
Power dissipation	<1.5W
Charging current	400mA

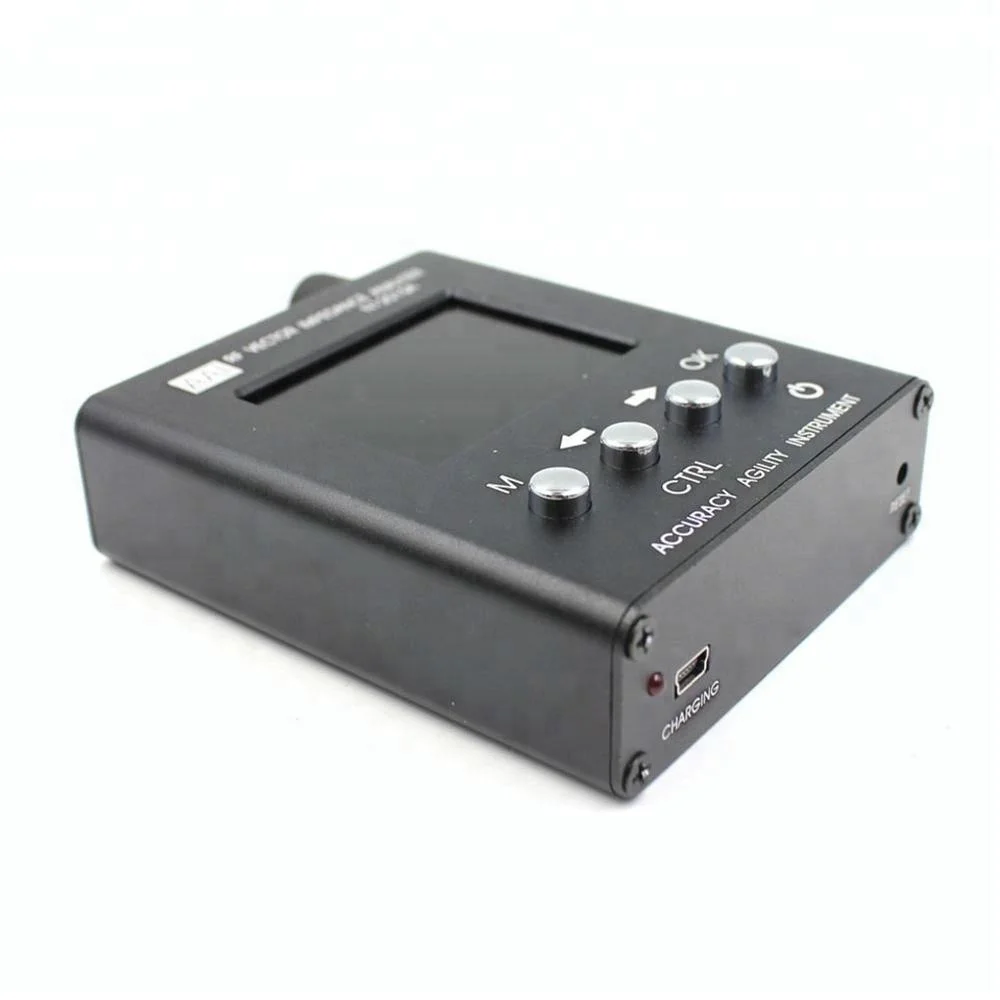

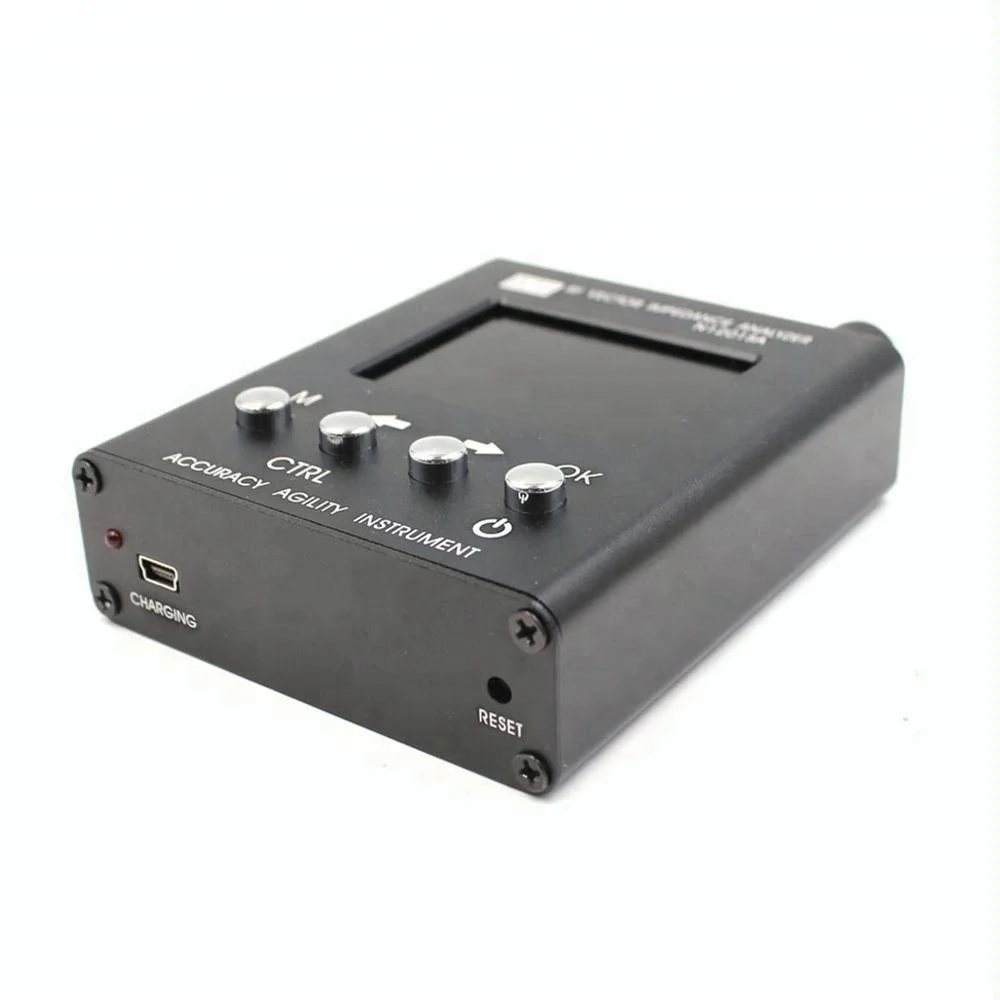

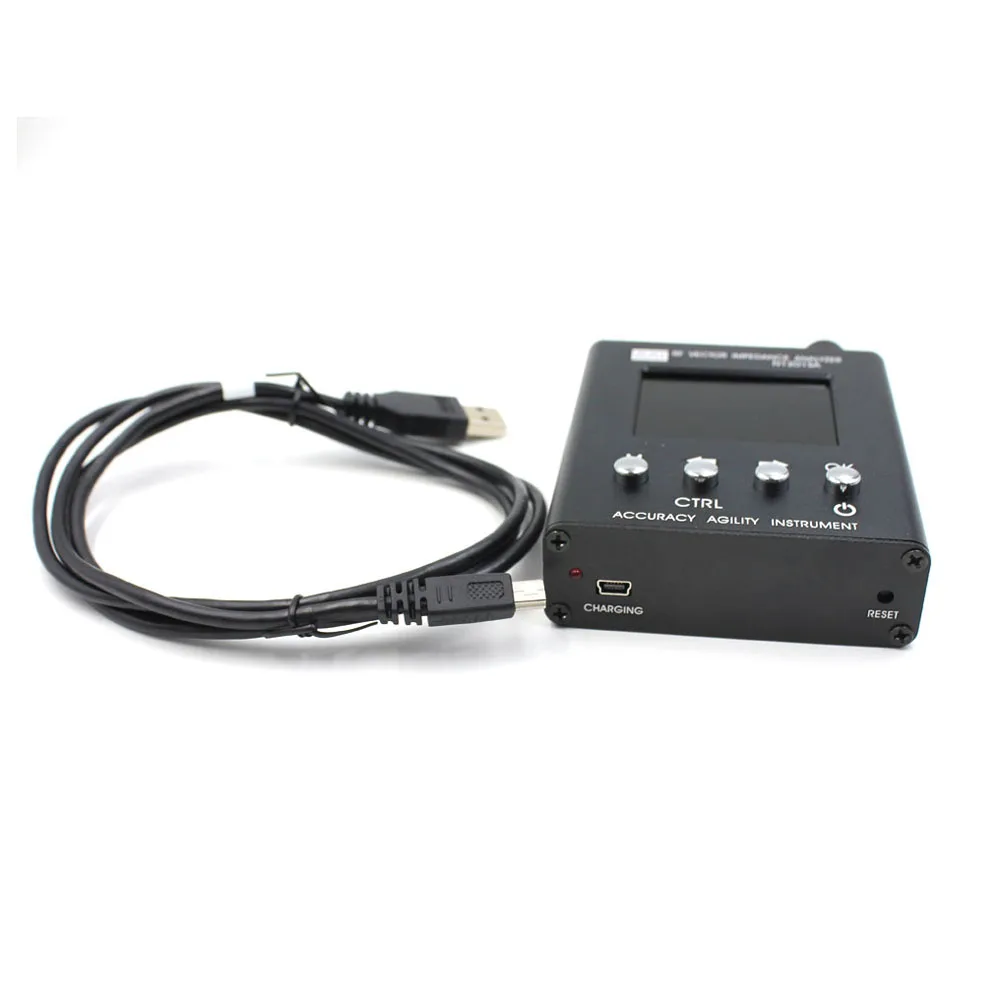

Charging port	USB(For charging only)
Auto Power Off	Adjustable(Always on,5mins~60min)
Measure facts	resistance/reactance/SWR/s11
Resolution ratio	4bits effective digits
Frequency accuracy	±5ppm

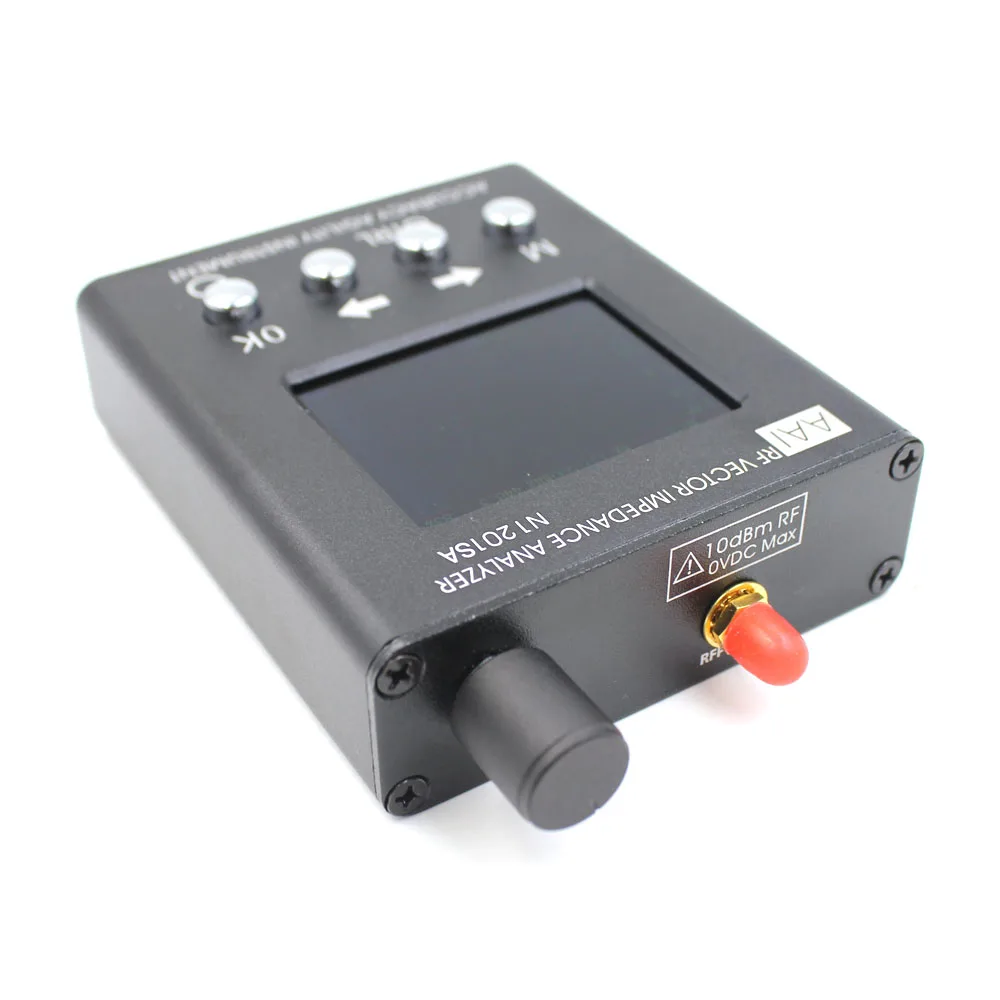

Connector SMA-K

Measuring range impedance 0.1Ω~1000Ω(Absolute value of impedance)

SWR 1.000~65

s11(dB) 0dB~-60dB

Error (single point measurement) impedance

SWR

s11 (dB/°) 0.1 dB /5° (0dB~-10dB)

1 dB /10° (-10dB~-20dB)

5dB/20° (-20dB~-40dB)

directivity <35dB(140MHz~2GHz After calibration)

<30dB(2GHz~2.7GHz)

Scan Points 280

output level -18dBm

Working temperature 0~40

Atmospheric pressure 860hPa~1060hPa

Dimension 120mm*86mm*30mm
