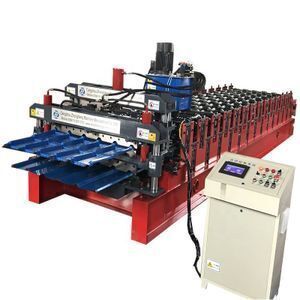

China Hot sale metal roofing panel profile roll forming machine
-
Supplier: Cangzhou Zhongheng Machine Manufacture Co., Ltd. -
Region: Hebei, China -
Contact: Ms Shirly Zhang -
Price: $11000.00 /set -
Min. Order: 1 set
| Tile Type: | Colored Steel; | Main motor: | 4kw; |
| Cutting blade material: | Cr 12 High Grade Steel; | Showroom Location: | Canada,Turkey,United States,Italy,Germany,Philippines,Brazil,Saudi Arabia,Chile,UAE,Algeria; |
| Production Capacity: | 30m/min; | Type: | Tile Forming Machine; |
| Dimension(L*W*H): | 7800mm*1.55mm*1.3mm; | Warranty of core components: | 1 Year; |
| Place of Origin: | Hebei China; | Condition: | New; |
| Selling Units: | Single item; | Packaging Detail: | 1. China Hot sale metal roofing panel profile roll forming machine need one 20/40 feet container to load . 2.We have professional technicians for loading to make sure machine has no damage. 3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Key Selling Points: | Energy saving; |
| Video outgoing-inspection: | Provided; | Local Service Location: | Egypt,United States,Peru,Saudi Arabia,Mexico,Thailand,Japan,Morocco,Argentina,Chile,UAE; |
| Single gross weight: | 4500.0 KG; | Usage: | China Hot sale metal roofing panel profile roll forming machine; |
| Upper speed: | 4m; | Feeding width: | 1000mm,1250mm; |
| Shaft material: | 45# Steel Outer Diameter: 75mm; | Brand Name: | ZHONGHENG; |
| Certification: | CE/ISO9001; | Core Components: | Pressure vessel,Bearing,Gear,Pump; |
| Forming Stations: | 14; | Tickness of coil: | 0.3mm-0,8mm; |
| Machinery Test Report: | Provided; | Warranty: | 1 Year; |
| Marketing Type: | New Product 2020; | Use: | ROOF; |
| Single package size: | 7800X150X155 cm; | Voltage: | 380V 50Hz 3phases; |
| After Warranty Service: | Video technical support,Spare parts; | Structure: | 400H beam; |
| Rolling thinckness: | 0.3-0.8mm; | Roller material: | 45# Forged Steel with hard chrom; |
| Control system: | PLC(Delta brand); | Weight: | 4600KG; |
China Hot sale metal roofing panel profile roll forming machine
As a professional manufacturer,we can make Metal Roof Tile Making Machine by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.
| Product Description |
|
NO. |
|
||
|
1. |
Raw material |
Type |
GI&PPGI |
|
Thickness |
0.3-0.8mm |
||
|
Yield strength |
235Mpa TO 350Mpa |
||
|
2. |
Decoiler |
Operation |
Manual/Hydraulic for option |
|
Weight apacity |
5tons |
||
|
3. |
Main body |
Roller station |
14-18 stations |
|
Diameter of shaft |
70mm |
||
|
Material of rollers |
45# steel with chrome 0.05mm |
||
|
Material of shaft |
45# steel with chrome 0.05mm |
||
|
Frame |
350mm H-Beam |
||
|
Chain |
1inch |
||
|
4. |
Cutter |
Operate |
Automatic hydraulic type |
|
Blade Material |
Cr12MOV |
||
|
5. |
Power |
Pump motor for cutter |
4kw |
|
Main motor |
5.5kw |
||
|
Voltage |
380V 50HZ |
||
|
6. |
Control system |
Electric Box |
PLC control system, Inverter, encoder |
|
Language |
English |
||
|
7. |
Speed |
8-12m/min |
|

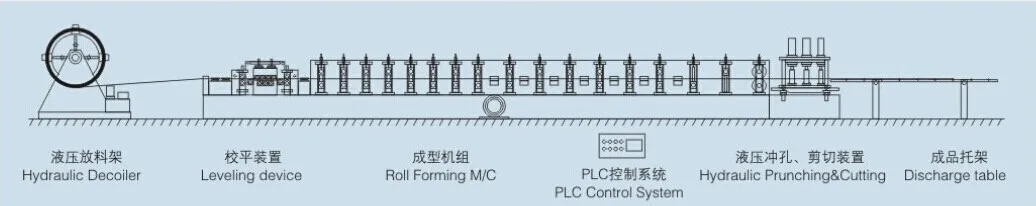

Working Process :
Decoiler—Roll Forming Machine——Hydraulic Press——Hydraulic cutter——Control System——Receiving table
Details Show

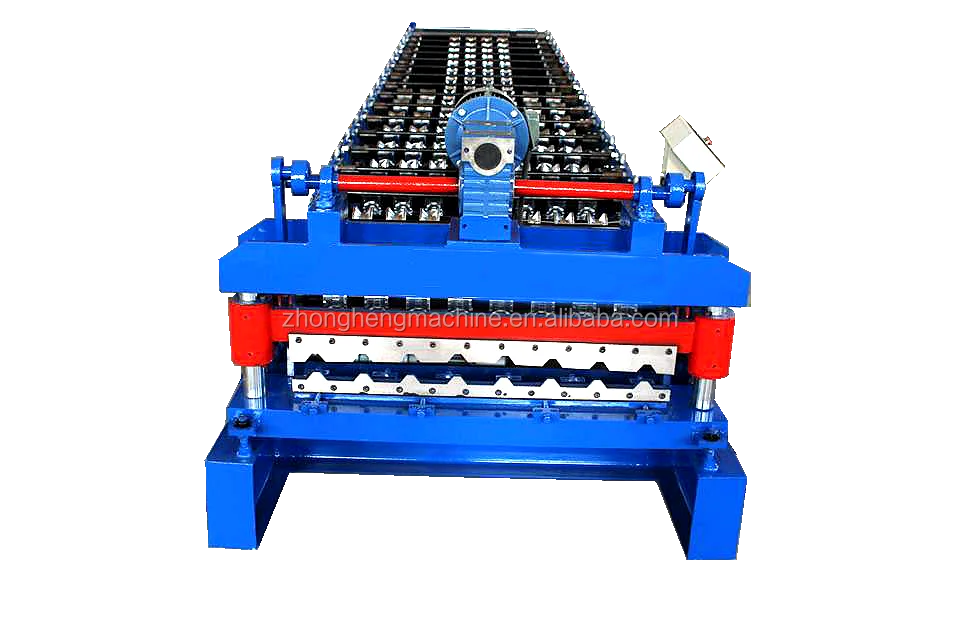

Roll Forming Machine Details
 |

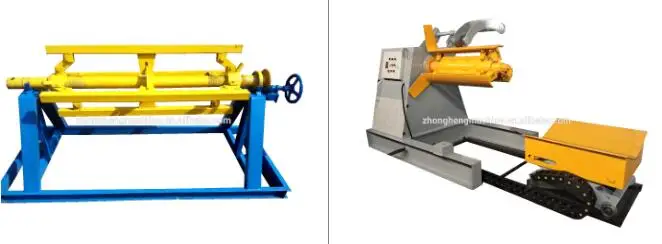

Manual/ Hydraulic Uncoiler | |
| Loading capacity | 5T | |
| Inner Diameter | 470-530 | |
| Coil width | 914-1250mm | |
| Speed | 15-20m/min | |
|

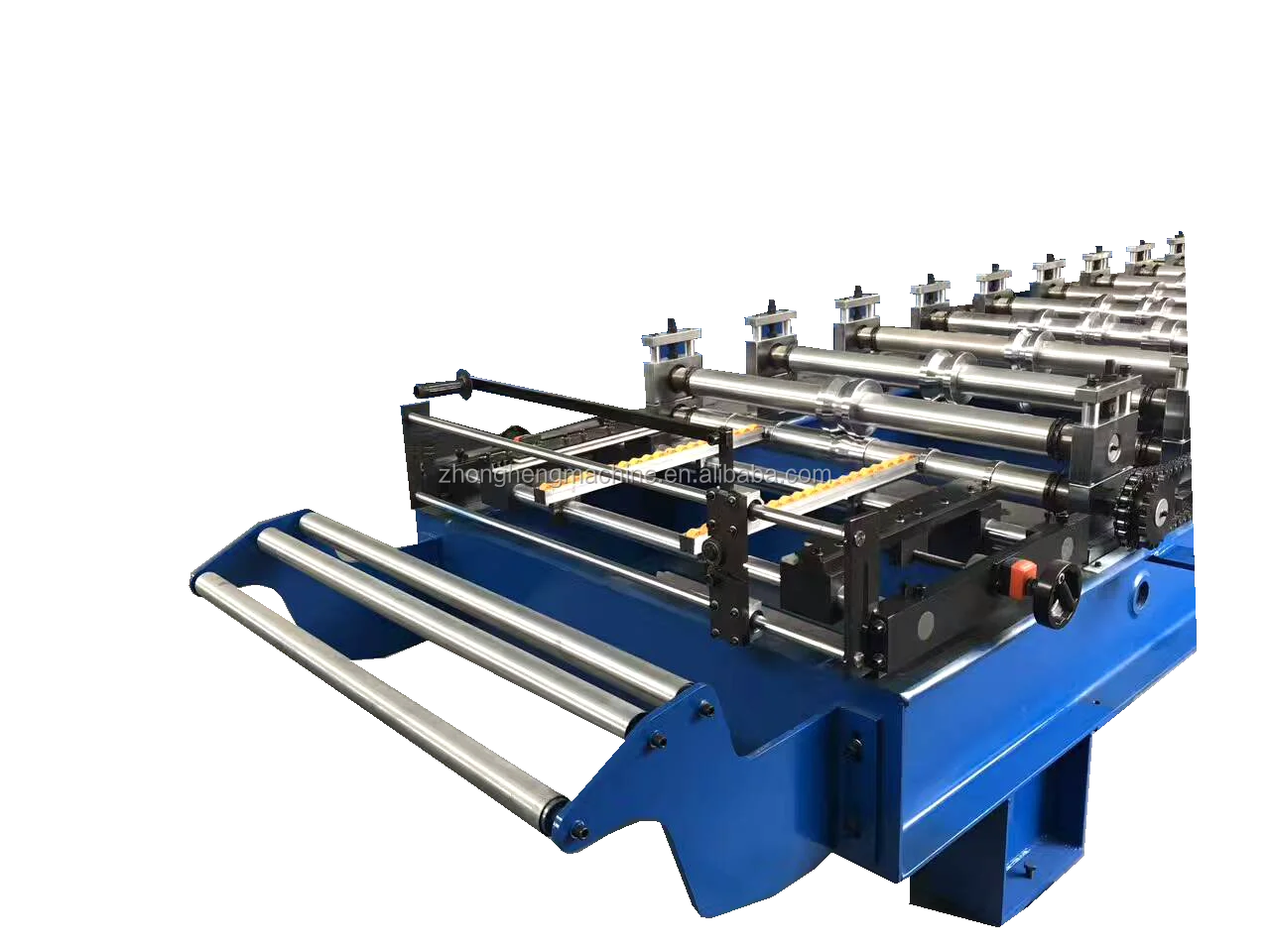

Feeding Table
It is used to control the width and position of the steel sheet. The sheet is guided into the machine with correct position, to make sure the panel is neat and parallel. |
 |
 |
Main Frame Material: 350 H steel Make the frame stable .
|
|

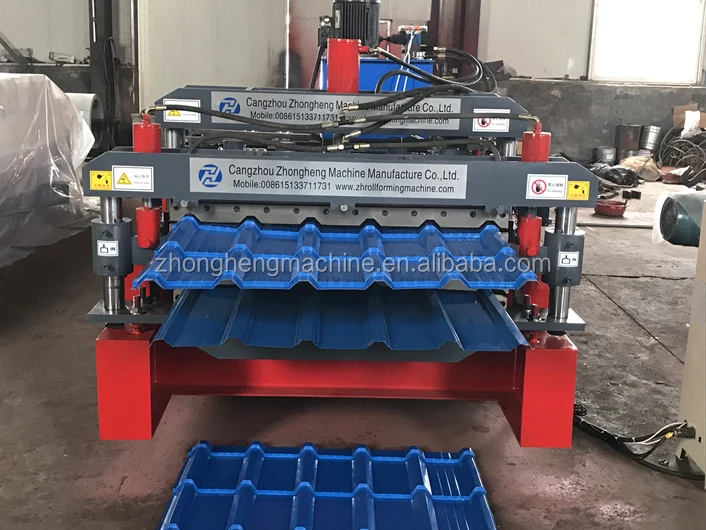

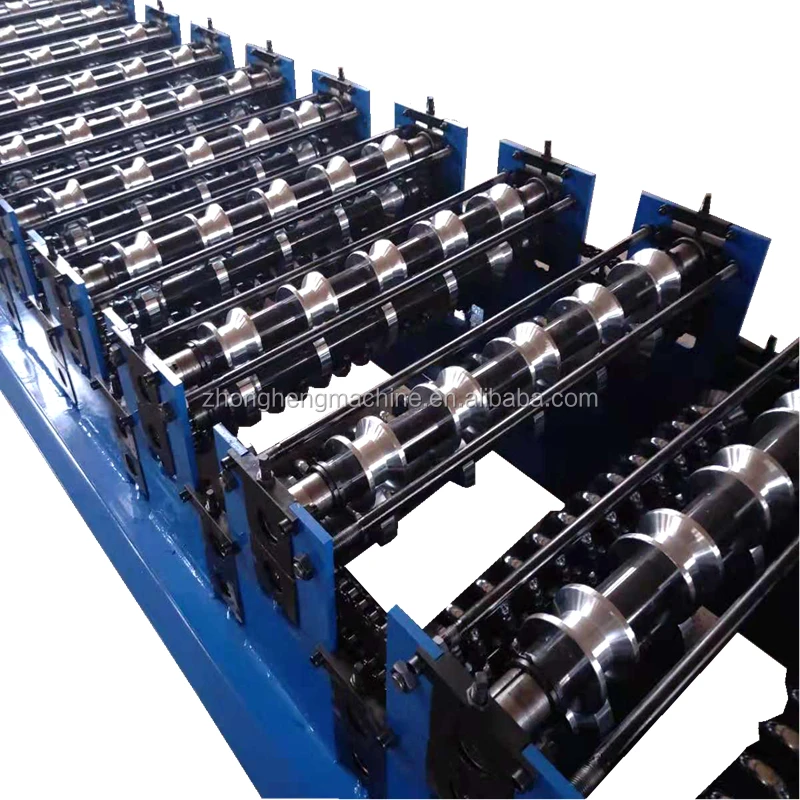

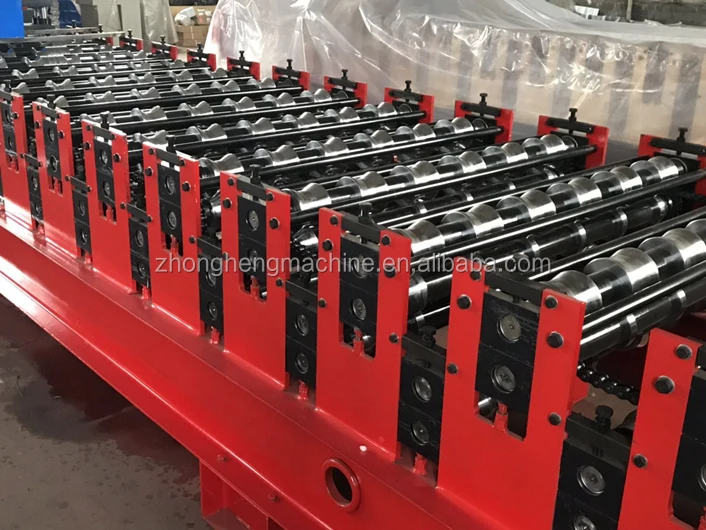

Forming Rollers Material: High grade 45# steel Roller stations: Depends on actual design |
 |
 |
Cutting system Material of blade:Cr12MOV, much better than normal Cr12 material Hydraulic power :4KW |
|

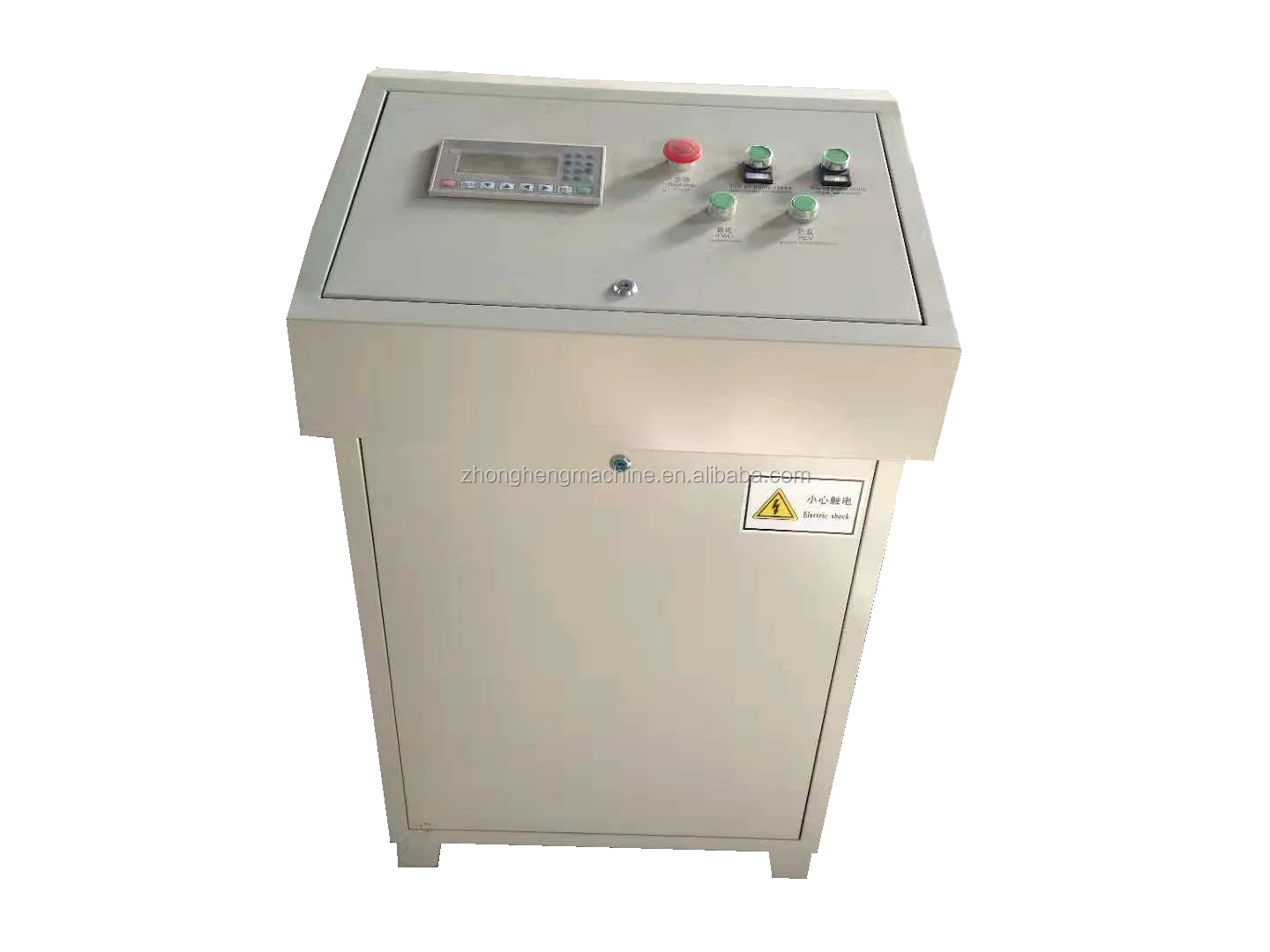

Control System Suitable power : 380V, 50Hz, 3phase or according to your need. Feature: The whole process is automatically controlled by the computer. In this way, you can ensure the accuracy and stable working. |
 |
 |

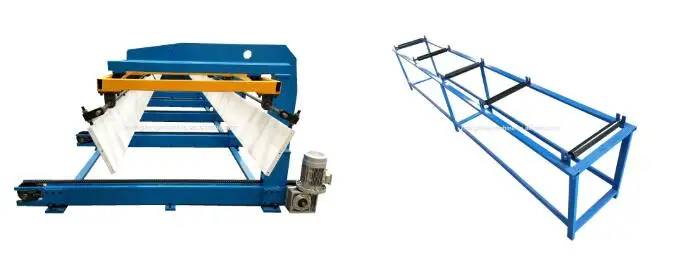

Auto Stacker/ Output table Receiving the finished panels |

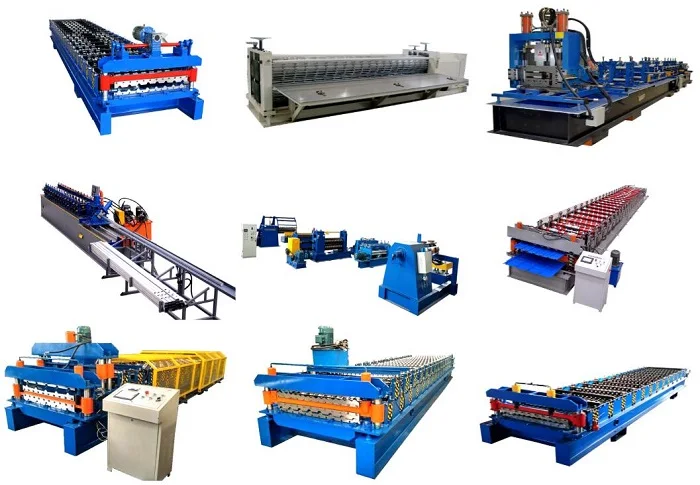

| Hot Selling Machines |

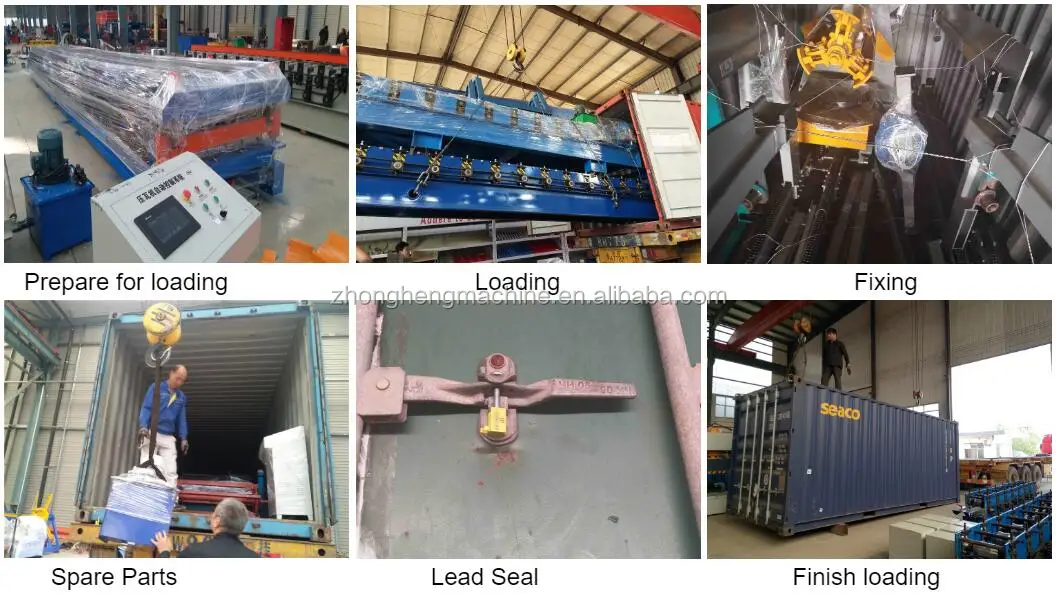

| Packing & Shipping |
We provide shipping service for China Hot sale metal roofing panel profile roll forming machine
1. China Hot sale metal roofing panel profile roll forming machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Need more information, please free to contact us.
We will reply within 12 hours .
-
