0.5V-4.5V i2c 4-20mA Pressure Sensor For Liquid/Gas/Steam

Product details
Brand Name:WNK;Packaging Detail:Each five pcs in one paper box 100 pcs in one carton;Standard export carton box or as per your requirement.;
Place of Origin:Anhui China;EX-proof:ExiaII CT4/CT6, ExidIICT6;
Customized support:OEM,ODM;Electrical connection:Packard, M12, DIN43650, Cable;
Housing Materials:304SST;Measured media:Liquid, gas and steam;
Model Number:WNK80MA,WNK80MA;Warranty:1 YEAR;
Key words:pressure sensor/i2c pressure sensor;Output signal:4~20mA, 1-5V, Customization;
Port:Shanghai;Power supply:24VDC/12VDC/5VDC/3.3V;
Output:4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C;Payment Terms:L/C,T/T,Western Union;
Certification:UL;Pressure range:0-20K~25MPa;
Supply Ability:5000 Piece/Pieces per Month Pressure Transmitter;

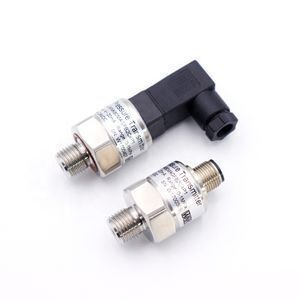

0.5V-4.5V i2c 4-20mA Pressure Sensor For Liquid/Gas/Steam

Product Description

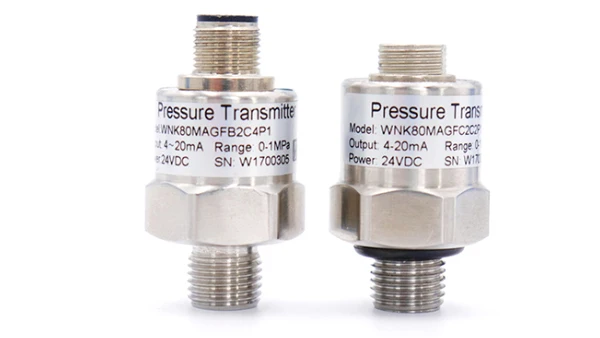

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.



With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.





Product Description of hub regulators



Applicable media Liquid, gas and steam
Pressure range 0-20kPa~50MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, absolute pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65

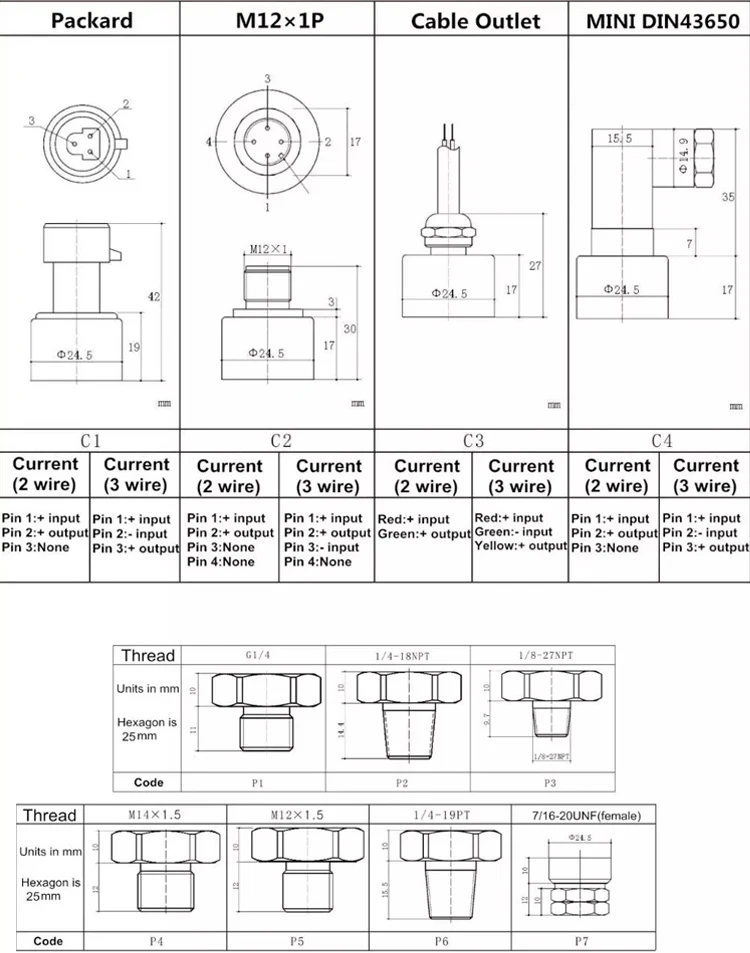

Electrical connection of hub regulators











Application:



WNK80MA is solution for below applications:

Pressure measurement of gas, vapor  or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

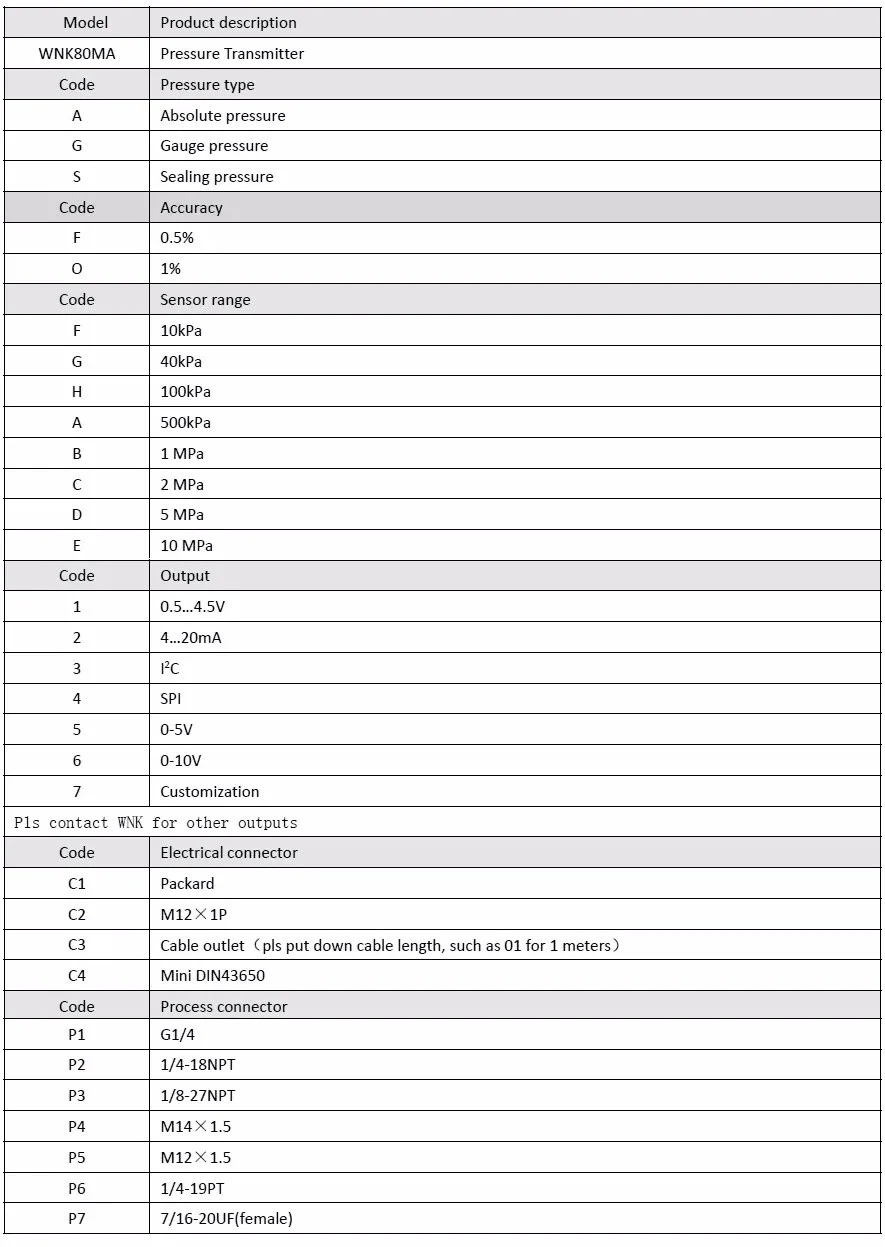

Product Spec









Company Information

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
