YJJ MPX5050DP 0 -50 kPa air pressure sensor transmitter

Supplier: Shenzhen Yijiajie Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sofin Xu
Price: $6.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Port:	Hongkong;	Pressure Range:	POP 0 -50 kPa;
Supply Ability:	98800 Piece/Pieces per Month;	Sensitivity:	90 mV/kPa;
Warm-Up Time:	20 ms;	Supply Voltage:	VS 4.75 5.0 5.25 Vdc;
Accuracy:	2.5 %VFS;	Model Number:	MPX5050DP;
Minimum Pressure Offset:	0 to 85;	Place of Origin:	United States;
Brand Name:	YIJIAJIE;	Response Time:	1.0 ms;
Supply Current:	7.0 10.0 mAdc;	Offset Stability:	0.5 %VFSS;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;

Product Description

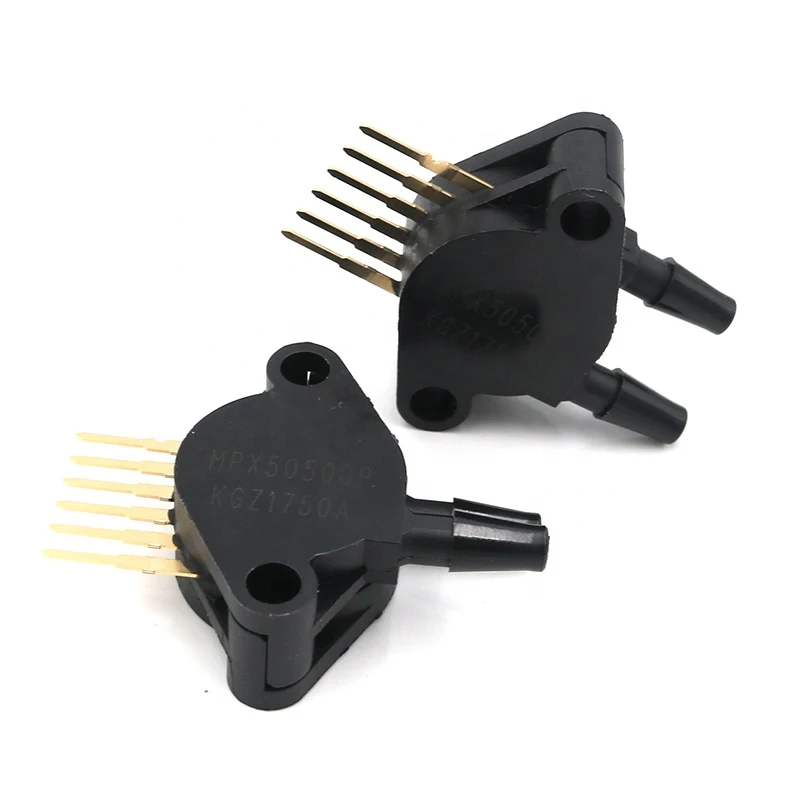

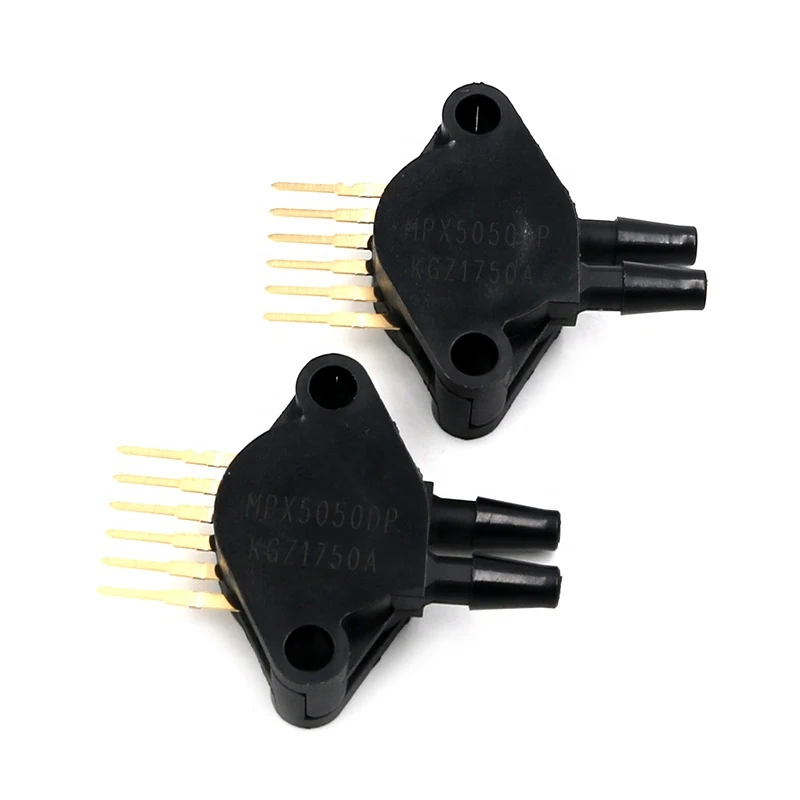

Pressure sensor transmitter MPX5050DP

MAXIMUM RATINGS(NOTE)

Parametrics Symbol Value Unit

Maximum Pressure (P1 > P2) Pmax 200 kPa

Storage Temperature Tstg –40° to +125° °C

Operating Temperature TA –40° to +125° °C

NOTE: Exposure beyond the specified limits may cause permanent damage or degradation to the device.

OPERATING CHARACTERISTICS (VS = 5.0 Vdc, TA = 25°C unless otherwise noted, P1 > P2. Decoupling circuit shown in Figure 4

required to meet electrical specifications.)

Characteristic Symbol Min Typ Max Unit

Pressure Range(1) POP 0 — 50 kPa

Supply Voltage(2) VS 4.75 5.0 5.25 Vdc

Supply Current Io — 7.0 10.0 mAdc

Minimum Pressure Offset(3) (0 to 85°C)

@ VS = 5.0 Volts

Voff 0.088 0.20 0.313 Vdc

Full Scale Output(4) (0 to 85°C)

@ VS = 5.0 Volts

VFSO 4.587 4.70 4.813 Vdc

Full Scale Span(5) (0 to 85°C)

@ VS = 5.0 Volts

VFSS — 4.50 — Vdc

Accuracy(6) — — — _2.5 %VFSS

Sensitivity V/P — 90 — mV/kPa

Response Time(7) tR — 1.0 — ms

Output Source Current at Full Scale Output Io+ — 0.1 — mAdc

Warm–Up Time(8) — — 20 — ms

Offset Stability(9) — — _0.5 — %VFSS
