Two-roll rubber calender for conveyor belt
- 1000.00 set
| Condition: | New; | Packaging Detail: | within 20 feet container in bulk; |
| Place of Origin: | Shandong China; | Certification: | ISO9001:2008/CE/SGS; |
| Power: | different model have differnt power; | Port: | qingdao; |
| Supply Ability: | 30 Set/Sets per Month discuss; | Weight: | different model have differnt weight; |
| Lubrication: | automatic grease or oil; | Voltage: | 220v/380v/440v canbe changed by your need; |
| Model Number: | XY-2-400; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Dimension(L*W*H): | different model have differnt size; | Payment Terms: | L/C,T/T; |
| Gap adjustable: | electric auto control; | Function: | make rubber or plastic sheet; |
| Warranty: | 2 years; | Type: | Rubber Calender; |
| Brand Name: | guangyue; |

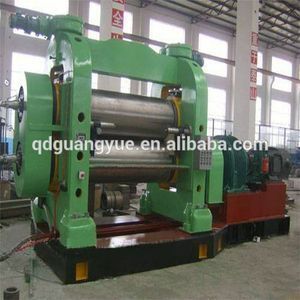

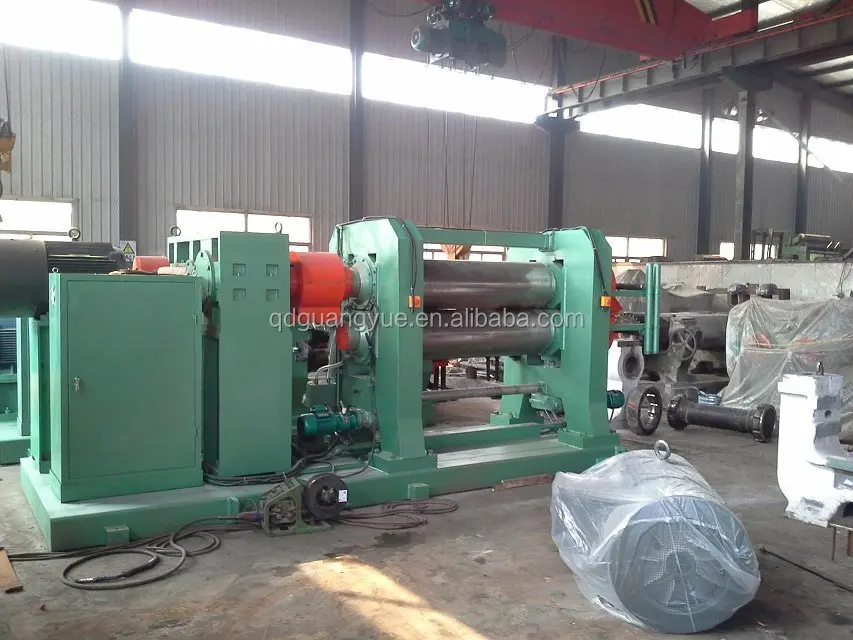

Two-roll rubber Calender
1.Structure
The machine is consisted of frame, roll, adjusting spacing device, speed ratio gear, the adjusting temperature device of roll, reducer, adjusting speed motor, bed plate ,coupling ,etc.
2.Uses
It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics
3.Feature
1.Tailored structure, easy to operate and install.
2. There are many speeds and speed ratios available, which can satisfy most customers formula and technique requirements.
3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.
4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
5. Perfect emergency stop device can ensure the safety of person and equipment
6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
Parameter of two-roll rubber calender
| XY-2-230 | XY-2-250 | XY-2-300 | XY-2-360 | XY-2-400 | XY-2-450 |
Roll diameter (mm) |
230 |
250 |
300 |
360 |
400 |
450 |
Working length (mm) |
635 |
720 |
800 |
1120 |
1200 |
1400 |
Friction ratio | 1:1 1:1.17 | 1:1 1:1.17 | 1:1 1:1.25 | 1:1 1:1.33 | 1:1 1:1.38 | 1:1 1:1.32 |
Mid roller linear(m/min) | 3-14.5
| 3-14 | 5-24 | 7-20 | 88-23 | 8-23 |
Bearings form | Rolling bearings | Rolling bearings | Rolling bearings | Rolling bearings | Rolling bearings | Rolling Bears |
Mini thickness of products (mm) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Motor power(kw) | 11 | 11 | 18.5 | 30 | 37 | 45 |
