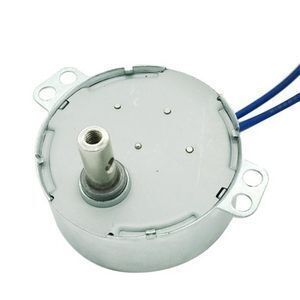

BringSmart 220-240V 50/60Hz ac permanent magnet synchronous motor 4w 1.4 To 63RPM CW/CCW TYC-50 For Fan Motor Induction Cooker

Supplier: Fuzhou Bringsmart Intelligent Tech. Co., Ltd.
Region: Fujian, China
Contact: Mr Arthur Pan
Price: $1.46 /piece
Min. Order: 1 piece

Click here to contact

Product details

Noise:	below 40;	Application1:	electric fireplace; Heater / microwave / refrigerator, Display;
Packaging Detail:	100pcs/CTN, CTN size:L41xW26xH23cm;	Input current:	25-500mA;
Selling Units:	Single item;	Model Number:	TYC-50;
Phase:	Single-phase;	Efficiency:	IE 2;
Rotation Direction:	CW/CCW; CW; CCW;	Single gross weight:	0.15 KG;
Place of Origin:	Fujian China;	Brand Name:	BringSmart;
Application2:	lighting motor; fan motor / light box motor,Popcorn machine;	Type:	Asynchronous Motor;
Protect Feature:	Totally Enclosed;	Operating voltage:	6v 9v 12v 24v AC, or 220-240v, 110-127v AC;
AC Voltage:	6v 9v 12v 24v AC, or 220-240v, 110-127v AC;	Frequency:	50/60Hz;
Certification:	CCC,ce,RoHS;	Single package size:	15X10X9 cm;

Product Description

Brand Name	BringSmart
Main Product	DC Motor, AC Motor, DC Linear Actuator view more

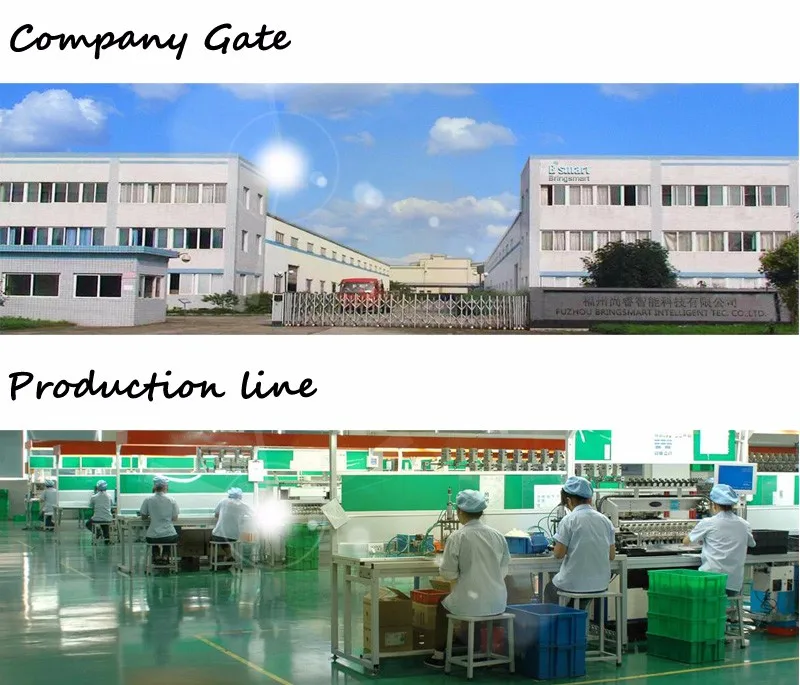

Advantage	Professional Product Development, Production Team, Sales Team, After-sales Service
OEM	Accepted
Delivery Time	Within 15 days

BringSmart 220-240V 50/60Hz ac permanent magnet synchronous motor 4w 1.4 To 63RPM CW/CCW TYC-50 For Fan Motor Induction Cooker

1) Power: 4W

Long life, wide range of applications, commonly used power supply voltage AC5V, 6V, 9V, 12V, 24V, 110V, 220V, speed per minute 1.4rpm, 2rpm, 3rpm, 4rpm, 5rpm, 8rpm, 10rpm, 15rpm, 30rpm, 50rpm, 60rpm, the smaller the speed, the greater the torque, the special output shaft can be customized

This product is integrated by a permanent magnet synchronous motor and reduction gearbox.

With features of low power consumption, high torque, low noise, small size, light weight, easy to use.

At rated frequency, motor speed is not affected by voltage.

If overload or stall when load, the motor coil will not burn!

2) There are three directions of rotation: CW/CCW ; CW ; CCW

3) Note : When the load reaches the rated torque, the motor will automatically reverse.

4) Application: electric fireplace; Heater / microwave / refrigerator, Display; lighting motor; fan motor / light box motor,Popcorn machine

Note

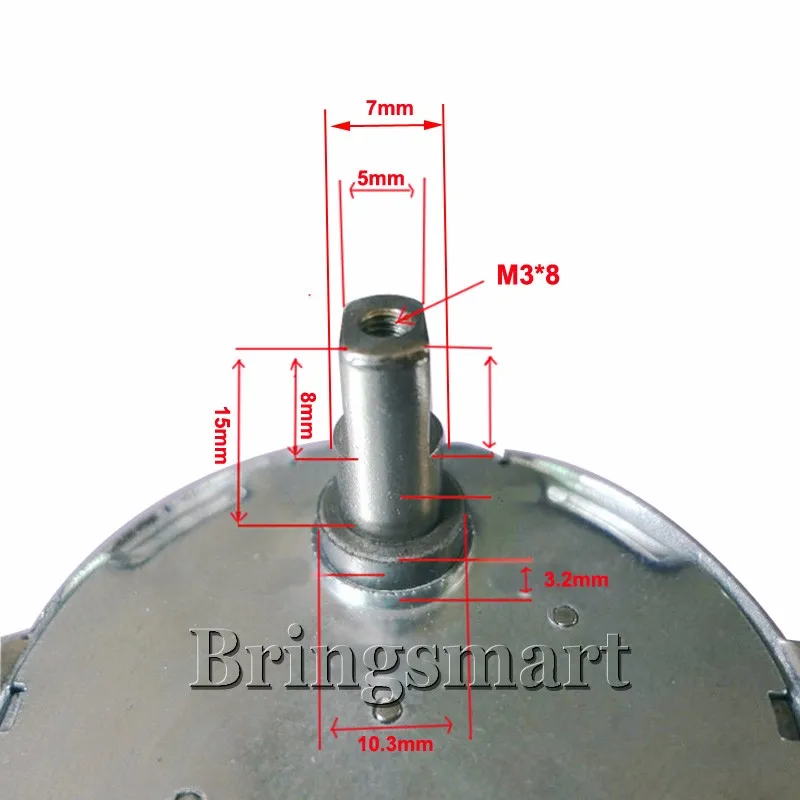

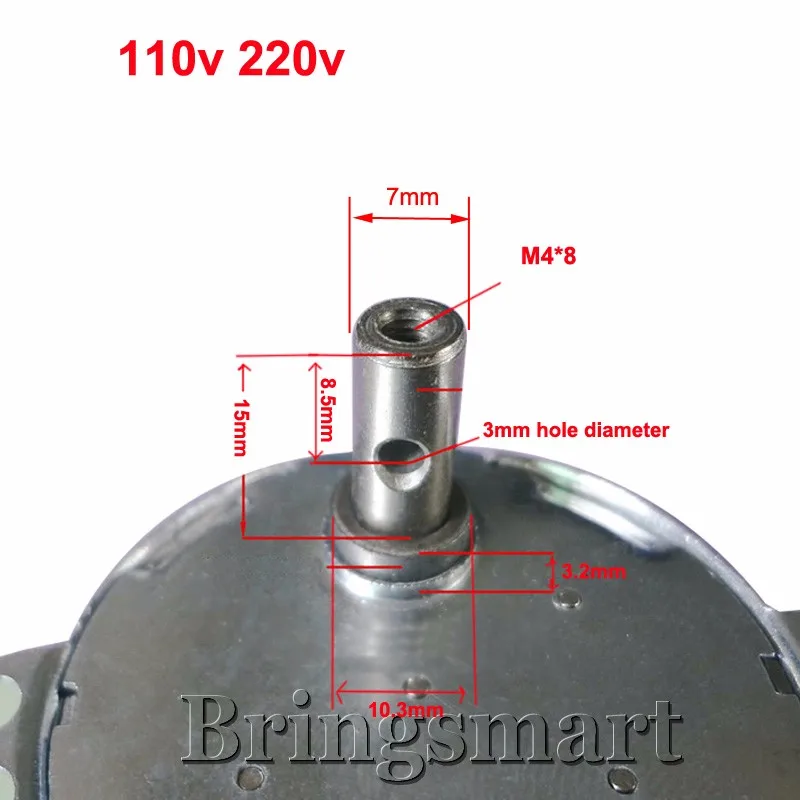

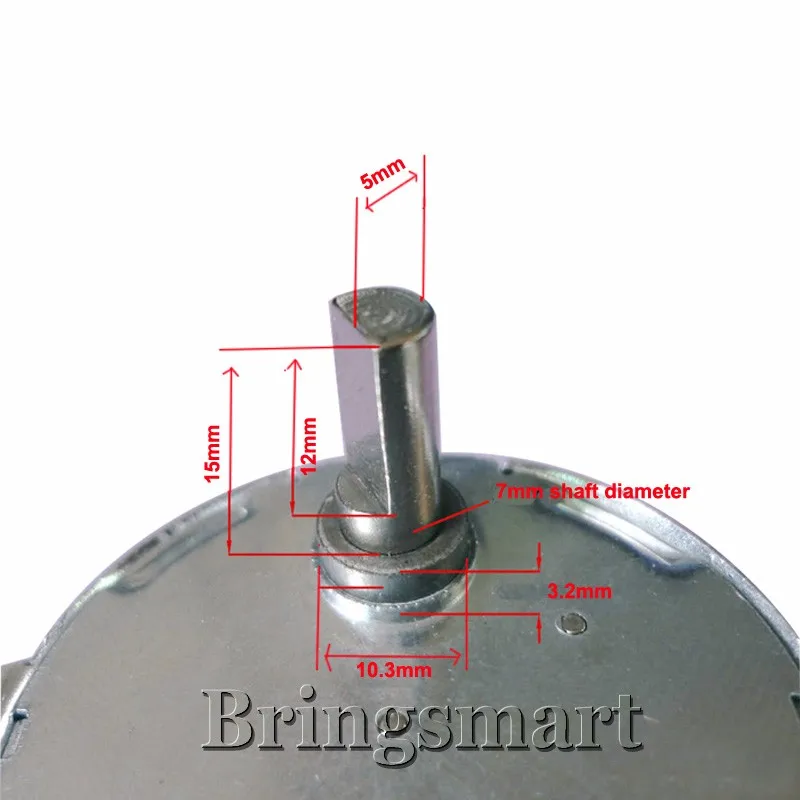

Please leave a message to tell us your choice of voltage, direction of rotation (CW / CCW;CW; CCW three type) and the type of shaft ( Type A ; Type B ; Type C ; Type D )

For example 220v ; 8r / 10r ; CW ; Type A

If did not get your message within 6 hours after your payment, we will deliver

220v8rpm/10rpm, cw, Type A or 110v 8rpm/10rpm cw, Type A (according to your country voltage) by default.

Thanks for your understand.

Note : this motor is AC synchronous motor

Please see the parameter table, for example you choose 1.4/1.7r/min

If your country's frequency is 50Hz, the motor rotation speed is 1.4rpm/min
If your country's frequency is 60Hz, the motor rotation speed is 1.7rpm/min

Parameter

Rated voltage	6v 9v 12v 24v AC, or 220-240v, 110-127v AC
Output speed(r/min)	1.4/1.6	2/2.4	2.5/3r	4/5r	5/6r	8/10r
Output torque(kgf.cm)	11	10	8	6	4	3
Output speed	10/12r	15/18r	20/24r	30/33r	48/52r	58/63r
Output torque(kgf.cm)	2	1.5	1	0.8	0.5	0.4
Direction	CW/CCW; CW; CCW
Input power	≤4w
Input current	25-500mA
Insulation class	E
Noise	below 40
