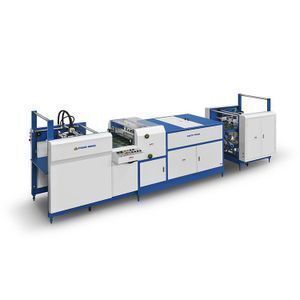

Latest Design SGUV-800B Automatic Whole UV Varnish Machine Water base Coating Machine Glazing Machine with 800*1000mm
- 17500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Material: | Wood; | Place of Origin: | Zhejiang China; |
| Condition: | New; | Single gross weight: | 3000.0 KG; |
| Automatic Grade: | Automatic; | Single package size: | 720X150X156 cm; |
| Brand Name: | FENGMING; | Min. paper size: | 220*280; |
| Packaging Type: | Cartons; | Max feeding Speed: | 35m/min; |
| Selling Units: | Single item; | Mode of operation: | automatic; |
| Color: | You can decide; | Packaging Detail: | normally we use wooden carton, also can do fumigation; |
| Certification: | CE Certificate; | After-sales Service Provided: | Video technical support,Engineers available to service machinery overseas; |
| Weight: | 3000kg; | Product name: | SGUV-650B Automatic UV coating machine; |
| Type: | Coating Machine; | Warranty: | 1 Year,1 Year; |
| Package Preview: | ; | Driven Type: | Mechanical; |
| Paper Thickness: | 80-200/m2; | Max. coating width: | 630mm; |
| Dimension(L*W*H): | 7200mm*1500mm*1560mm; | Max. paper size: | 800*1000; |
| Application: | Machinery & Hardware; | Voltage: | 380V/220V; |
Latest Design SGUV-800B Automatic Whole UV Varnish Machine Water base Coating Machine Glazing Machine with 800*1000mm
Specifications
SGUV800B UV Varnish Machine Automatic UV Coating Machine Water base Coating Machine
Configuration
1.PLC control
2.Two UV lamps, Ten IR lamps
3.Automatic feeding system
4.Automatic paper stacking system
5.Air Knife(Used for thin paper coating)
6. 2.14m dry tunnel
7. can coat both UV oil and water oil
Technical specification
MODEL | SGUV-800B |
Max.paper size | 800*900mm 800*1000mm |
Min.paper size | 220*280mm |
Max.Coating Width | 800mm |
Max.Feeder Speed | 35m/min |
Paper Thickness | 80-200g/m²(with air knife)
200-600g/m² |
Total Power | 26KW |
Total Weight | 3000kg |
Overall Dimensions | 7200mm*1500mm*1560mm |
