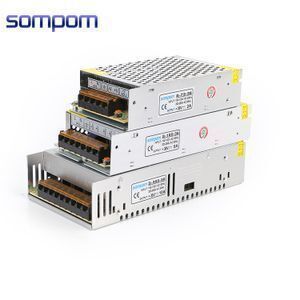

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box

Product details
Certification:CE & RoHS&FCC&ISO9001;Output Voltage:12V;
Carton:15pcs to 65pcs;Type:Constant Voltage;
Protections:Short Circuit Overtemp Overload Overvolt;Weight:461g;
Single gross weight:1.0 KG;Output Type:Single;
Ripple&Noise:<80MV;Model Number:S-120-12;
Place of Origin:China;Efficiency:90%;
Output Frequency:47-63HZ;Packaging Detail:12V/10A Switching Power Packing details 1) Vacuum packing 2) 1 pc/pack, 50pcs/ctn (12V) 3)Packing as customer requirement 4)Special Protect carton for exporting product;
Single package size:25X25X10 cm;Warranty:2 Years;
Brand Name:sompom;Input Voltage:85-264VAC;
Size:199*97*42mm;Selling Units:Single item;
Output Current:10A;Output Power:1 - 500W;

Product Description

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box



DC OutputDC Voltage: 12V
DC Current : 10A
Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC InputAC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:90%
AC Current: 0.86/115V  0.4A/230V
AC Inrush Current: 20A/115V   40A/230V
Leakage Current< 0.5mA /240VAC
ProtectionOver-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery
EnvironmentWorking temp.: -10~ +60C°  (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH
SafetyIsolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001



Related products





Features: 110V/220V AC to DC Power Series
3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
Model Series Link  (View more)
3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A

5V Series: 5V2A, 5V3.8A, 5V5.5A,  5V10A, 5V20A, 5V30A,5V40A, 5V60A

6V Series: 6V10A, 6V20A, 6V30A,6V40A, 6V50A
9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A

12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,

                    12V10A, 12V12.5A, 12V15A, 12V16.5A,

                    12V20A, 12V30A, 12V40A,12V50A.

13.8V Series: 13.8V30A
15V Series: 15V2A,15V5A, 15V10A,15V20A
18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A

24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A, 24V10A ,24V15A, 24V20A, 24V25A

28V Series:28V1A,
36V Series: 36V2A, 36V5A, 36V10A

48V Series: 48V2A, 48V3A, 48V5A,

48V7.5A,48V10A,48V15A
