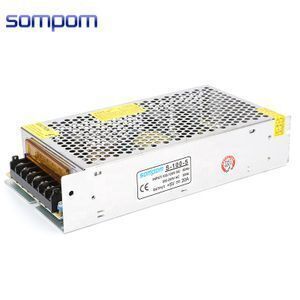

Sompon AC DC 5V 20A 100W Display Industrial Power Supply
- 3.30 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Single package size: | 21.9X10.7X5.3 cm; | Input Voltage: | AC 85-264V; |
| Place of Origin: | Guangdong China; | Package Type: | 1) Vacuum packing 2)Special Protect carton for exporting product. 3)Packing as customer requirement.; |
| Model Number: | S-100-5; | Output Frequency: | 50-60Hz; |
| Item Name: | 5V Switch Power; | Single gross weight: | 0.673 KG; |
| Working temperature: | -10~60°C; | Size: | 199*97*42mm; |
| Case material: | Metal; | Usage: | Led Display; |
| Certification: | RoHS&CE&FCC&ISO9001; | Output Current: | 20A; |
| Output Voltage: | 5V; | Efficiency: | 85%; |
| Weight: | 473g; | Brand Name: | sompom; |
| Output Power: | 100W; | Cooling method: | Free Air; |
| Warranty: | 2 Years; | Selling Units: | Single item; |
Product Description
Sompon AC DC 5V 20A 100W Display Industrial Power Supply
| DC Output | DC Voltage: 5V |
| DC Current : 20A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:90% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
