OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box details
Output Type:Single;Selling Units:Single item;
Efficiency:90%;Single package size:25X25X10 cm;
Brand Name:sompom;Carton:15pcs to 65pcs;
Packaging Detail:12V/10A Switching Power Packing details 1) Vacuum packing 2) 1 pc/pack, 50pcs/ctn (12V) 3)Packing as customer requirement 4)Special Protect carton for exporting product;Ripple&Noise:<80MV;
Type:Constant Voltage;Model Number:S-120-12;
Size:199*97*42mm;Weight:461g;
Protections:Short Circuit Overtemp Overload Overvolt;Place of Origin:China;
Output Current:10A;Warranty:2 Years;
Output Power:1 - 500W;Input Voltage:85-264VAC;
Output Voltage:12V;Output Frequency:47-63HZ;
Single gross weight:1.0 KG;Certification:CE & RoHS&FCC&ISO9001;

Product Description

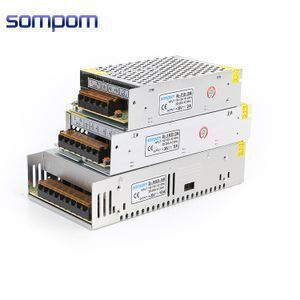

OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box



DC OutputDC Voltage: 12V
DC Current : 10A
Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC InputAC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:90%
AC Current: 0.86/115V  0.4A/230V
AC Inrush Current: 20A/115V   40A/230V
Leakage Current< 0.5mA /240VAC
ProtectionOver-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery
EnvironmentWorking temp.: -10~ +60C°  (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH
SafetyIsolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001



Related products





Features: 110V/220V AC to DC Power Series
3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
Model Series Link  (View more)
3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A

5V Series: 5V2A, 5V3.8A, 5V5.5A,  5V10A, 5V20A, 5V30A,5V40A, 5V60A

6V Series: 6V10A, 6V20A, 6V30A,6V40A, 6V50A
9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A

12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,

                    12V10A, 12V12.5A, 12V15A, 12V16.5A,

                    12V20A, 12V30A, 12V40A,12V50A.

13.8V Series: 13.8V30A
15V Series: 15V2A,15V5A, 15V10A,15V20A
18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A

24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A, 24V10A ,24V15A, 24V20A, 24V25A

28V Series:28V1A,
36V Series: 36V2A, 36V5A, 36V10A

48V Series: 48V2A, 48V3A, 48V5A,

48V7.5A,48V10A,48V15A


About Us

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customers favor by its high  efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.

Our certificate

Q1:What is your MOQ of switch power?

  A:Our MOQ is 1 piece.

Q2:How many year warranty of your Led driver?

  A:Two years.

Q3:Do you offer sample of power?

  A:Yes,We offer free sample,but you need pay the shippment.

Q4:Do you have switch power factory?

  A:Yes,we are OEM & ODM manufacturer in Donguan.

Q5:Is your power with copper transform or something?

  A:We can do with complete copper transform and copper cladding aluminum.

Q1:What is your MOQ of switch power?

  A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.

Our factory



ADVANCED MACHINE
Its brand SOMPOM is well-known at home
and abroad.
LONG-TIME BURN-IN TEST
Each of the switch power is extremely
safe and stable after 5 times testing.
OEM&ODM SERVICE
This company is engaged in the design,
manufacture and sale of switching power
series.
OUR CERTIFICATE
All of our products have the ISo9001
CE,FC,ROHS certification.
Contact us

above is detail introduction of OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box, include price, model, picture and supplier of OEM AC DC 5V 12V 24V 1A 2A 5A 10A 20A 30A switching power supply for Led Strip Light Tin box.
