Long Service Life Straw Pulp Gravity Thickener Machine

Supplier: Zhengzhou Leizhan Technology Paper Machinery Co., Ltd.
Region: Henan, China
Contact: Mr leizhan company
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Experience:	40 years;	Type:	Mining Thickener;
Place of Origin:	Henan China;	Cylinder area:	10-35m2;
Product name:	straw pulp gravity thickener;	Certification:	BV,CE,ISO;
Motor Type:	Electric;	Concentration of input pulp:	0.5-1%;
Warranty:	1 Year;	Function:	pulp thicking;
Concentration of output pulp:	4-6%;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Supply Ability:	50 Set/Sets per Year;	Ash removal:	90%;
Automatic Grade:	Full-Automatic;	Application:	Paper Industry;
Payment Terms:	T/T,Western Union,MoneyGram;	Production Capacity:	10-52t/d (straw pulp);
Showroom Location:	None;	Condition:	New;
Port:	Qingdao,Shanghai,etc;	Applicable Industries:	Manufacturing Plant;
Packaging Detail:	To be packed in strong and sound seaworthy packing capable of standing tropical climatic conditions. We also respect your demands in packing terms and details. Additional sea & air worthy export packaging will be available if required, at additional costs.;	Brand Name:	Leizhan;
Local Service Location:	Egypt,Canada,Turkey,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;	Dimension(LWH):	as design;
Application pulp:	Waste paper pulp,wood pulp,straw pulp,etc;	Production capacity:	10-52t/d(straw pulp);

Long Service Life Straw Pulp Gravity Thickener Machine

Product Description

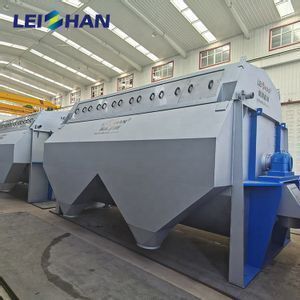

Leizhan ZNW series gravity type cylinder thickener is widely used in pulp and paper industry for washing and thickening of slurry. Apply for concentrating wood pulp, cotton pulp, reed pulp, rice and wheat straw, and also used for filtering other types of fiber suspension in other industry.

Technical date:

Type		ZNW22	ZNW23	ZNW24	ZNW25	ZNW26	ZNW27
Cylinder area(m2)		10	15	20	25	30	35
Concentration of Input Pulp(%)		0.5-1
Concentration of Output Pulp(%)		4-6
Production Capacity (t/d)	Straw pulp	10-15	15-22	20-30	25-38	30-45	35-52
	waste paper pulp	15-20	22-30	30-40	38-50	45-60	52-70
	Wood pulp	30-35	45-52	60-70	75-88	95-105	105-122
Ash Removal(%)		90
Power of Main Motor(kw)		5.5	7.5	11	11	15	15

Features:

1.This series of products have the advantages of cylinder mould rotated speed can be stepless changed according to the concentration of slurry and types of slurry,

2.Compact whole steel structure slurry tank, high capacity per unit area, good thickening effect,

3.Cylinder mould surface adopts plastic filter plate combined type, easy to replace and maintain, portable spray cleaning, filter can clean pulp thoroughly, low power consumption.
