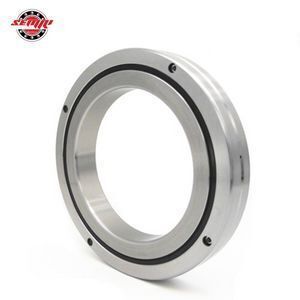

120x180x25mm NC turntable Crossed Roller Slewing Bearing RB12025

Supplier: Tianjin Semri Bearing Technology Co., Ltd.
Region: Tianjin, China
Contact: Ms Silent Zhang
Price: $11.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Material:	120x180x25mm NC turntable Crossed Roller Slewing Bearing RB12025;
Seals Type:	Open;	Model Number:	RB12025;
Roller pitch circle diameter:	148.7;	B:	25 mm;
Place of Origin:	China;	OD:	180 mm;
service:	OEM;	Gear Options:	Nongeared;
Feature:	CROSS ROLLER;	Weight:	2.62 kg;
certificate:	ISO9000:2001;	Packaging Detail:	1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request;
ID:	120 mm;	Package Preview:	;
Type:	Slewing Bearing;	structure:	high load;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,farms,Retail,Construction works ,Energy & Mining,construction machine;	Brand Name:	TFN /SEMRI /OEM;
Supply Ability:	1999 Piece/Pieces per Month;	Port:	Any China port;
type:	slewing;

Product Description

120x180x25mm NC turntable Crossed Roller Slewing Bearing RB12025016

Model	120x180x25mm NC turntable Crossed Roller Slewing Bearing RB12025
Brand	TFN/SEMRI/OEM
d(mm)	120
D(mm)	180
B(mm)	25
Precision Rating	P0,P6,P5,P4,P2(ABEC1,ABEC3,ABEC5,ABEC7,ABEC9)
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Material	GCr15/GCr15SiMn
Cerfication	ISO9001:2008
packing	1)Neutral package & wooden package 2)Carton package+pallet 3)Wooden package+pallet 4)As customer request
Application	Industrial robot arm -Glass grinding equipment -NC turntable -NC rotary table -Testing equipment -Precision medical equipment -Aerospace equipment -Military radar
Delivery time	1)3-5days for samples 2)10-15days
Payment terms	1)30%TT in advance,70% balance has to be paid before first shipment. 2)100%LC at sight 3)Western Union 4)Paypal 5)other payment terms depend on our discussion

Other crossed roller bearing model as follows :

shaft diameter	Identification number	Main dimensious							shoulder height		Basic load rating (radial)		weight
		Inner diameter	outer diameter	Roller pitch circle diameter	width	Greasing hole		r	ds	Dh	C	Co	Kg
		Inner diameter	outer diameter	Roller pitch circle diameter	width	a	b				C	Co
		d	D	DP	B/B1	a	b				KN	KN
50	RB 5013	50	80	64	13	2.5	1.6	1	57	72	16.7	20.9	0.27
60	RB 6013	60	90	74	13	2.5	1.6	1	68	82	18	24.3	0.3
70	RB 7013	70	100	84	13	2.5	1.6	1	78	92	19.4	27.7	0.35
80	RB 8016	80	120	98	16	3	1.6	1	91	111	30.1	42.1	0.7
90	RB 9016	90	130	108	16	3	1.6	1.5	98	118	31.4	45.3	0.75
100	RB 10016	100	140	119.3	16	3.5	1.6	1.5	109	129	31.7	48.6	0.83
100	RB 10020	100	150	123	20	3.5	1.6	1.5	113	133	33.1	50.9	1.45
110	RB 11012	110	135	121.8	12	2.5	1	1	117	127	12.5	24.1	0.4
	RB 11015		145	126.5	15	3.5	1.6	1	122	136	23.7	41.5	0.75
	RB 11020		160	133	20	3.5	1.6	1.5	120	140	34	54	1.56
120	RB 12016	120	150	134.2	16	3.5	1.6	1	127	141	24.2	43.2	0.72
120	RB 12025	120	180	148.7	25	3.5	2	2	133	164	66.9	100	2.62
130	RB 13015	130	160	144.5	15	3.5	1.6	1	137	152	25	46.7	0.72
130	RB 13025	130	190	158	25	3.5	2	2	143	174	69.5	107	2.82
140	RB 14016	140	175	154.8	16	2.5	1.6	1.5	147	162	25.9	50.1	1
140	RB 14025	140	200	168	25	3.5	2	2	154	185	74.8	121	2.96
150	RB 15013	150	180	164	13	2.5	1.6	1	157	172	27	53.5	0.68
	RB 15025		210	178	25	3.5	2	2	164	194	76.8	128	3.16
	RB 15030		230	188	30	4.5	3	2	173	211	100	156	5.3
160	RB 16025	160	220	188.6	25	3.5	2	2	173	204	81.7	135	3.14
170	RB 17020	170	220	191	20	3.5	1.6	2	184	198	29	62.1	2.21
180	RB 18025	180	240	210	25	3.5	2	2	195	225	84	143	3.44
190	RB 19025	190	240	211.9	25	3.5	1.6	1.5	202	222	41.7	82.9	2.99
200	RB 20025	200	260	230	25	3.5	2	2.5	215	245	84.2	157	4
	RB 20030		280	240	30	4.5	3	2.5	221	258	114	200	6.7
	RB 20035		295	247.7	35	5	3	2.5	225	270	151	252	9.6
220	RB 22025	220	280	250.1	25	3.5	2	2.5	235	265	92.3	171	4.1
240	RB 24025	240	300	269	25	3.5	2	3	256	281	68.3	154	4.5
250	RB 25025	250	310	277.5	25	3.5	2	3	265	290	69.3	150	5
	RB 25030		330	287.5	30	4.5	3	3	269	306	126	224	8.1
	RB 25040		355	300.5	40	6	3.5	3	275	326	195	348	14.8
300	RB 30025	300	360	328	25	3.5	2	3	315	340	76.3	178	5.9
	RB 30035		395	345	35	5	3	3	322	368	183	367	13.4
	RB 30040		405	351.6	40	6	3.5	3	326	377	212	409	17.2
350	RB 35020	350	400	373.4	20	3.5	1.6	3	363	383	54.1	143	3.9
400	RB 40035	400	480	440.3	35	5	3	3.5	422	459	156	370	14.5
400	RB 40040	400	510	453.4	40	6	3.5	3.5	428	479	241	531	23.5
450	RB 45025	450	500	474	25	3.5	1.6	1.5	464	484	61.7	182	6.6
500	RB 50025	500	550	524.2	25	3.5	1.6	1.5	514	534	65.5	201	7.3
	RB 50040		600	548.8	40	6	3	3.5	526	572	239	607	26
	RB 50050		625	561.6	50	6	3.5	3.5	536	587	267	653	41.7
600	RB 60040	600	700	650	40	6	3	4	627	673	264	721	29
700	RB 70045	700	815	753.5	45	6	3	4	731	777	281	836	46
800	RB 80070	800	950	868.1	70	6	4	5	836	900	468	1330	105
900	RB 90070	900	1050	969	70	6	4	5	937	1001	494	1490	120
1000	RB 1000110	1000	1250	1114	110	6	6	6	1057	1171	1220	3220	360

shaft diameter	Identification number	Main dimensious						shoulder height		Basic load rating (radial)		weight
		Inner diameter	outer diameter	Roller pitch circle diameter	width	Greasing hole	Chamfer	ds	Dh	C	Co	Kg
		d	D	DP	B/B1		R(min)			KN	KN
35	RU66	35	95	66	15	3.1	0.6	59	74	17.5	22.3	0.62
55	RU85	55	120	85	15	3.1	0.6	79	93	20.3	29.5	1
80	RU124(G)	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6
	RU124X
90	RU148(G)	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9
	RU148X
115	RU178(G)	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8
	RU178X
160	RU228(G)	160	295	227.5	35	6	2	208	246	104	172	11.4
	RU228X
210	RU297(G)	210	380	297.3	40	6	2.5	272	320	156	281	21.3
	RU297X
350	RU445(G)	350	540	445.4	45	6	2.5	417	473	222	473	35.4
	RU445X
