RU85 Crossed Roller Bearing for robot

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $98.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Selling Units:	Single item;	Lubrication:	Oil;
Applicable Industries:	Retail;	Material:	Stainless steel, chrome steel, carbon steel;
Single gross weight:	2.0 KG;	Feature:	Cross Roller,High Speed;
Model Number:	RU85;	Type:	Slewing Bearing,deep groove ball bearing;
Place of origin:	China;	Sample:	Available;
Packaging Detail:	individual box+carton box+pallet;	Place of Origin:	Henan China;
Cage:	Steel Cage.Brass Cage.Nylon Cage;	Service:	OEM Customized Services;
Product name:	RU85 Crossed Roller Bearing for robot;	Gear Options:	Nongeared;
Brand Name:	NTL;	Single package size:	1.5X1.2X1 cm;
Application:	Robot;

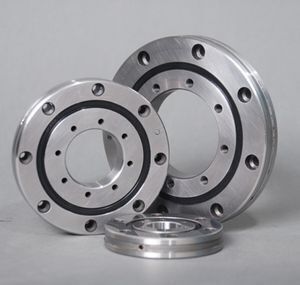

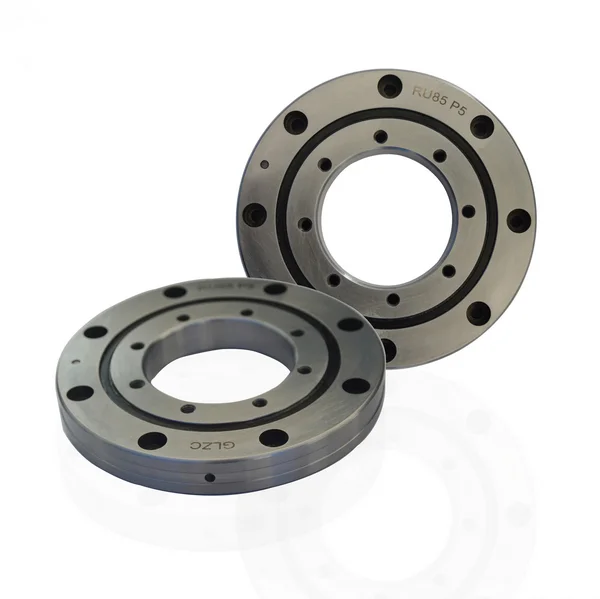

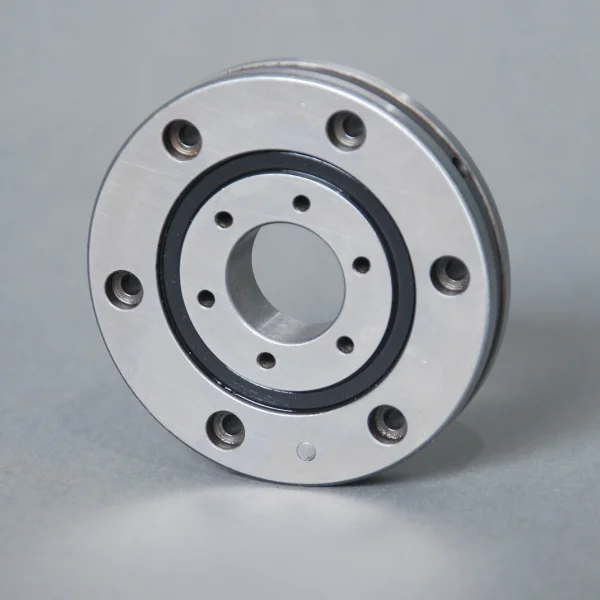

RU85 Crossed Roller Bearing for robot

Product Description

Crossed Roller Bearing is mainly consisted of an outer ring, an inner ring, a plurality of rollers and a plurality of spacers. The roller lies between the inner ring and the outer ring. The spacer is placed between rollers to prevent the mutual friction between rollers so as to decrease the torque resistance for rotation. In addition, the surface of the roller and the rolling track is linear contact. So, when the bearing is loaded, the loading area will be very large. Thus, the elastic deformation will be less, and the bearing will achieve a long service life. Each roller in Crossed Roller Bearing is crossed at 90° angle, which is able to bear the loading force from axial, radial and the other direction at the same time.
This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.

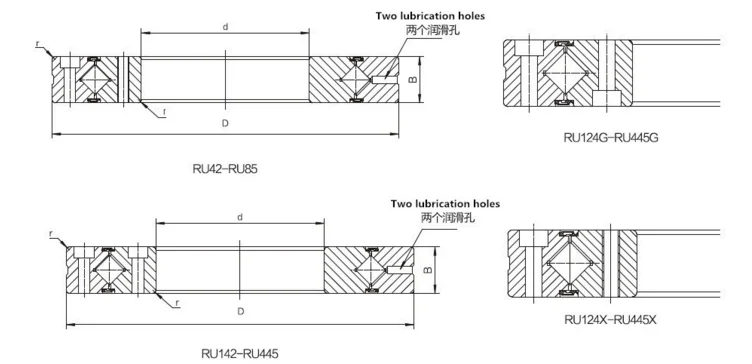

Model number	Main dimension						Shoulder height		Basic load rating(radial)		weight
	inner ring d	outer ring D	Roller pitch circle diameter dp	width B	Greasing hole d1	r	ds	Dh	C	Co	kg
									kN	kN
RU42	20	70	41.5	12	3.1	0.6	37	47	7.35	8.35	0.62
RU66	35	95	66	15	3.1	0.6	59	74	17.5	22.3	0.62
RU85	55	120	85	15	3.1	0.6	79	93	20.3	29.5	1
RU124(G)	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6
RU124X
RU148(G)	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9
RU148(X)
RU178(G)	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8
RU178(G)
RU228(G)	160	295	227.5	35	6	2	208	246	104	172	11.4
RU228(X)
RU297(G)	210	380	297.3	40	6	2.5	272	320	156	281	21.3
RU297(X)
RU445(G)	350	540	445.4	45	6	2.5	417	473	222	473	35.4
RU445(X)
