one way clutch bearing csk20 csk20pp

Supplier: Changsha Terry Machinery Co., Ltd.
Region: Hunan, China
Contact: Ms Mery Zhou
Price: $2.50 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

package:	single white box;	Warranty:	1 year;
Selling Units:	Single item;	OE NO.:	csk20;
seals type:	2rs;	materail:	chrome steel;
bore:	20mm;	Car Model:	car;
thickness:	14mm;	Brand Name:	NTL;
outer diameter:	47mm;	Size:	204714MM;
Delivery Detail:	0 days after payment;	Single gross weight:	0.1 KG;
Package Type:	single white box packing;	application:	used for printing machinery, packaging machinery;
keyway:	1 or 2;	service:	oem service;
Place of Origin:	Jiangsu China (Mainland);	product name:	one way clutch bearing csk20 csk20pp;
Single package size:	2X2X4 cm;

one way clutch bearing csk20 csk20pp

Product Description

CSK series one way (direction) bearing a sprag type freewheel , integrated into 6200 series ball bearing(except sizes 8 and 40), Also named OW BB KK etc. It provides you an one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. It is bearing supported, shipped grease lubricated and protected against dust larger than 0.3mm diameter. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit asspecified. Operating temperature range:-20°C to +100°C. Peaks up to +120°C are acceptable for short periods.

Types:

CSK series(ID8_40mm), CSK8 (P/PP/2RS), CSK12( P/PP/2RS), CSK15( P/PP/2RS), CSK17( P/PP/2RS) CSK20 (P/PP/2RS) CSK25( P/PP/2RS), CSK30( P/PP/2RS), CSK35 (P/PP/2RS), CSK40 (P/PP/2RS) CSK 305, CKS306 etc.

Application:

One-way bearings are widely used in printing machinery, packing machinery, food machinery, two-speed gearboxes, electric roller, exercise equipment, automobile industry; Household appliances; Currency detector, etc

drawaing&size

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
	Size								dynamic	static		Drag torque
	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
CSK..P	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10

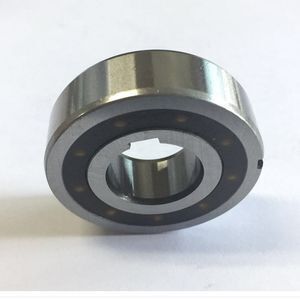

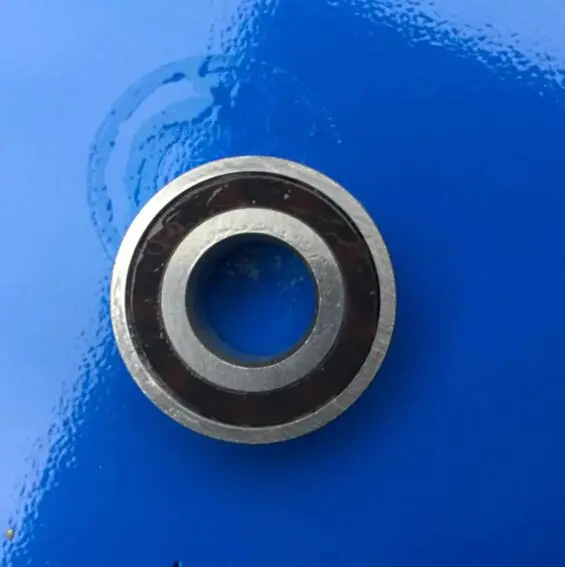

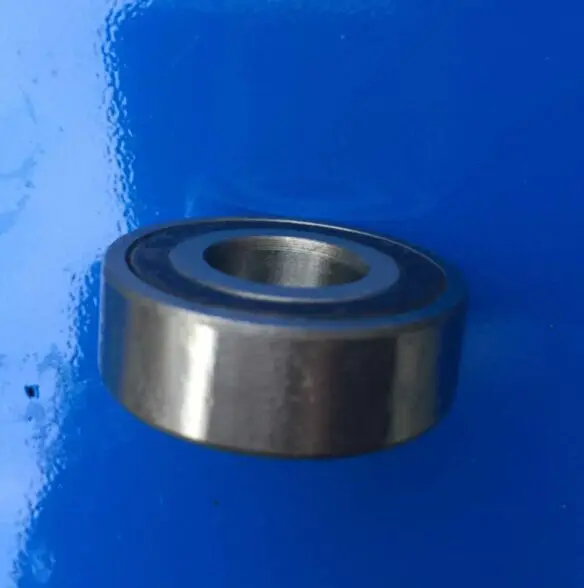

product picture

Packaging & Shipping

Company Information

FAQ

1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.

2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by shipping.

4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.

5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.

6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
