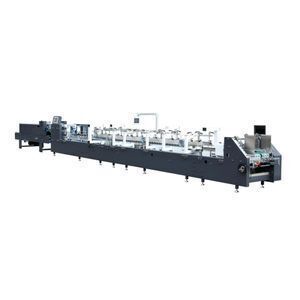

1100CS Automatic High Speed Four and Six Corner Carton Box Folder Gluer Machine

Supplier: Shanghai Printyoung International Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Wendy Wen
Price: $62000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Type:	Cartons,Case;	Speed max.:	350 m/min;
Air compressor capacity:	10 m^3/h;	Port:	Shanghai or Ningbo;
Thickness of folded box max.:	20 mm;	Condition:	New;
Packaging Detail:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.;	Inching speed:	10 m/min;
Automatic Grade:	Automatic;	Place of Origin:	China;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Food & Beverage Shops,Advertising Company;	Warranty:	1 YEAR;
Packaging Material:	Paper;	Air tank capacity:	60 L;
Dimension(LWH):	18.5 1.71.9m;	Certification:	CE;
Weight:	7.6T;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Brand Name:	PRY;	Supply Ability:	10 Set/Sets per Year;
Voltage:	380V;	Compressed air:	6 bar;
Application:	Food,Beverage,Commodity,Medical,Apparel;	Blank width:	1100 mm;
Driven Type:	Electric;	Corrugated flute type:	A,B,E;
Carton board max.:	1100 MM;	Electrical connected load:	15 KW;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Type:	Gluing Machine;

Product Description

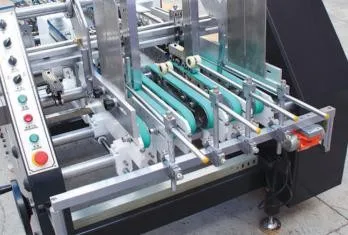

Feeding
Independently motorized motor control, simultaneous feeding mode with the main motor. Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.Embossing drive wheel guide the feeding section belt, side feed gates in the right and left are adjustable according to the products.Vibration device coordinate with motor which helps machine consecutive and automatic feeding quick and simply. Feeder section can stack 400MM height paper board.

Aligner Section
The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.Pressing drive pressure can be adjusted up and down to accommodate different paperboard thickness.

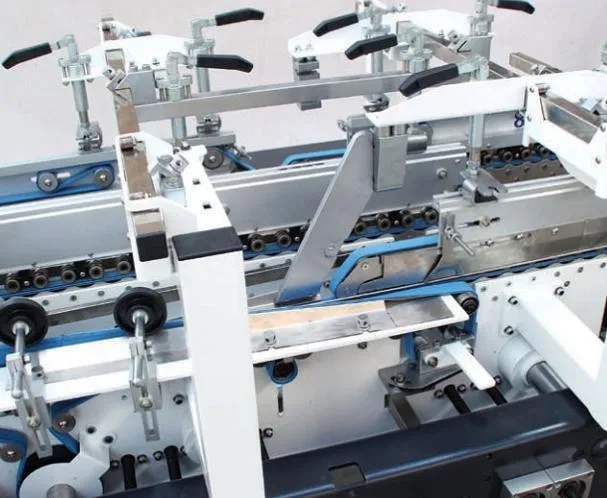

Pre-folding Section
Special first folding line pre-fold 180°. third line 170° ,Which perfectly meeting the requirements of automatic packaging industry.

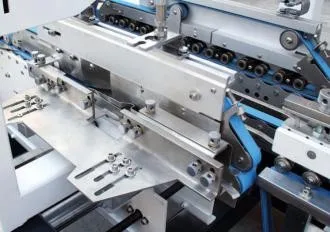

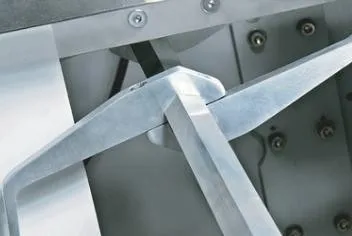

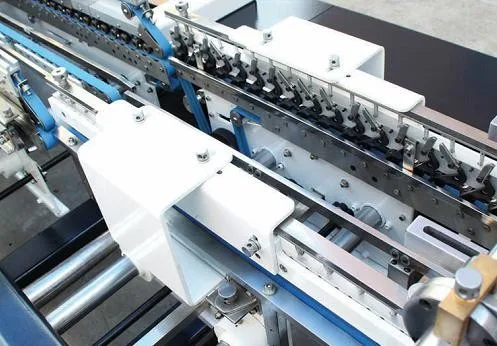

Lock bottom Unit
Complete set of folding hooks and helixes to fold the front flaps of the blank smoothly and accurately. Bottom lock section with three board,which can better apply to the large rash lock bottom boxforming.Sectional-type upper belt board with special design, which can be adjusted according to the products type ,no need to tension belt.

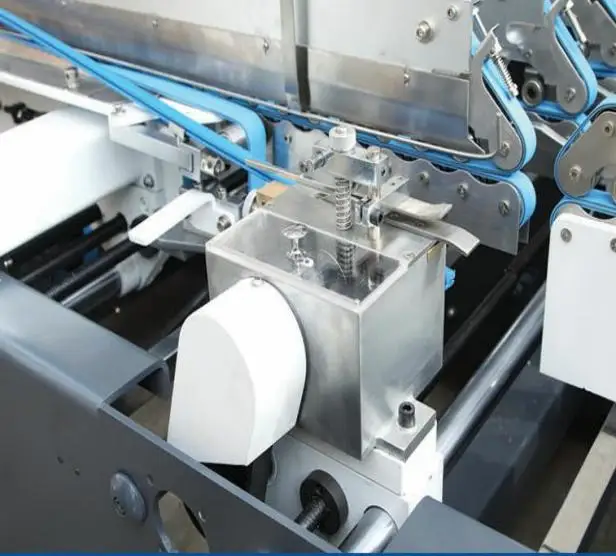

Lower Gluing Tank
Optional lower gluing tank in the right and left side with large volume.Electronic upper gluing system by guns.Optional lower gluing tank in the right and left side with large volume.

Trombone section
Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack . Also equipped with feeding paper inspection device.

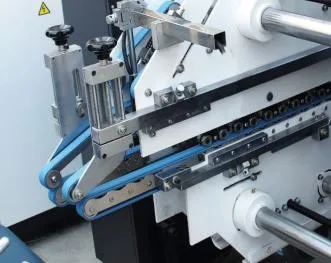

Transmission
Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward, allowing for different box length.Pneumatic pressure regulator

4 and 6-Corner device
Machine using motorized and united electronic back folding system with intelligent servo motor technology

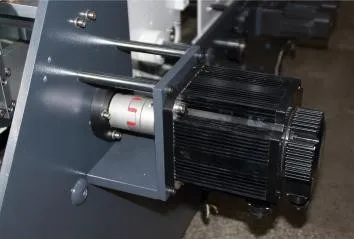

Servo-motor of back folding
Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touch screen.

Spraying System
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.

Packaging & Shipping

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Our Services

One year guarantee. During the period of quality guarantee, we supply the spare part in free for replacement in case of quality problem, if there get a problem with machine, buyer can not solve it, buyer can take a video of machine running then send to seller.
